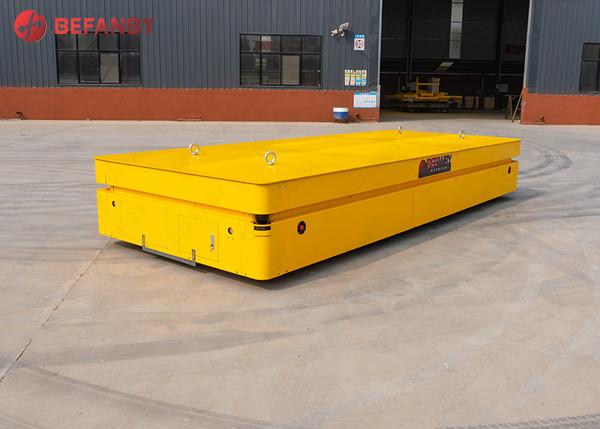

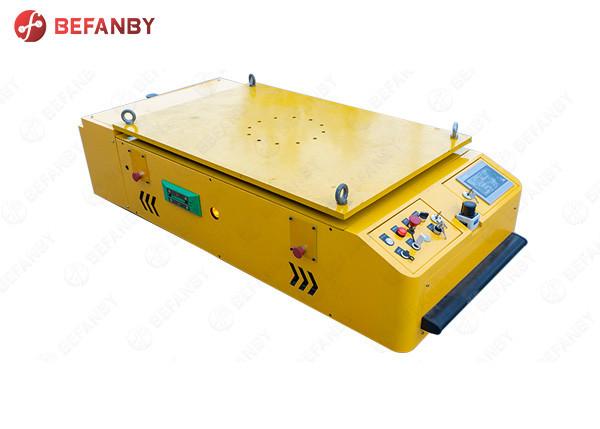

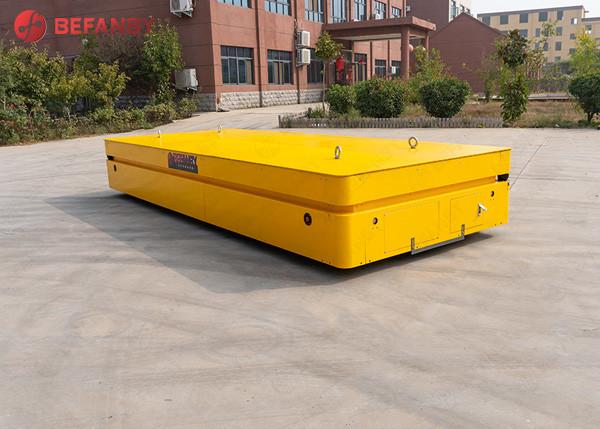

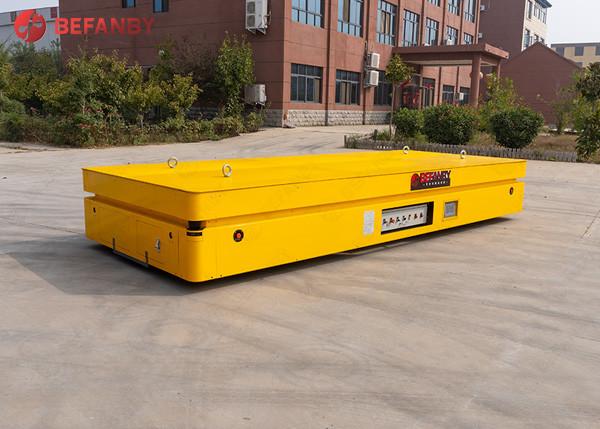

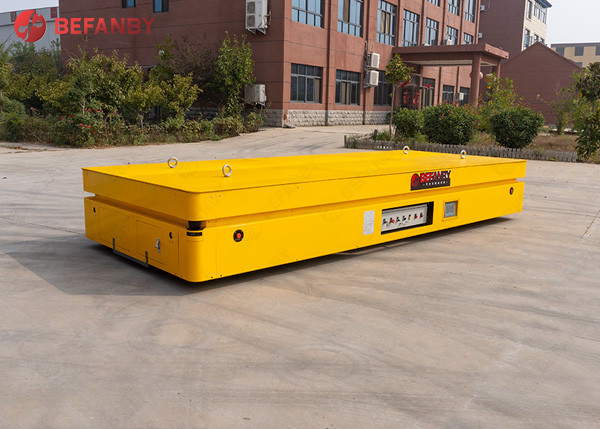

20 Tonne Production Line Railless Automatic Guided Vehicle
20 Tonne Production Line Railless Automatic Guided Vehicle
20 Tonne Production Line Railless Automatic Guided Vehicle
20 Tonne Production Line Railless Automatic Guided Vehicle
20 Tonne Production Line Railless Automatic Guided Vehicle
20 Tonne Production Line Railless Automatic Guided Vehicle
20 Tonne Production Line Railless Automatic Guided Vehicle
20 Tonne Production Line Railless Automatic Guided Vehicle
Specifications
Brand Name :
BEFANBY
Model Number :
Automatic AGV
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan,China
MOQ :
1 set/sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1500 set/sets, per year
Delivery Time :
20-30 days as usual delivery
Packaging Details :
The Automatic Guided Cart AGV will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Product Name :
20 Tonne Production Line Railless Automatic Guided Vehicle
Power :
battery powered
Warranty :
24 months
Load capacity :
1-40 Ton
Application :
workshop, production line,factory
Running ways :
Trackless,no rail
Power supply :
Lithium battery power, Optional Power Supply
Characteristic :
automatic
Description

20 Tonne Production Line Railless Automatic Guided Vehicle

Product Description Of Transfer Cart AGV

AGV intelligent trackless transfer carts is an efficient and convenient material handling equipment. Compared with traditional material handling methods, AGV intelligent trackless transfer carts has obvious advantages. First, there is an intelligent control system that can be remotely controlled. This makes the operation simpler and more convenient, and can be remotely controlled. Secondly, AGV intelligent trackless transfer carts does not need to lay tracks, and the running distance is not limited. This brings greater freedom to material handling and can flexibly adapt to different work scenarios.

In addition, AGV intelligent trackless transfer carts has a variety of navigation methods to choose from, which is more suitable for the needs of different occasions. For example, laser navigation system, QR code navigation, magnetic stripe navigation and other equipment can be used for landmark recognition and path planning. At the same time, AGV transfer carts can also use radio wave navigation, infrared navigation and other technologies to ensure the stability and accuracy of operation.

In general, the use of AGV intelligent trackless transfer carts can greatly improve the efficiency and accuracy of material handling, reduce labor costs, and further promote the development of industrial automation.

20 Tonne Production Line Railless Automatic Guided Vehicle

Application Of Transfer Cart AGV

20 Tonne Production Line Railless Automatic Guided Vehicle

Parts Details


20 Tonne Production Line Railless Automatic Guided Vehicle

Advantages

20 Tonne Production Line Railless Automatic Guided Vehicle

20 Tonne Production Line Railless Automatic Guided Vehicle

Product Parameter

Model AGV-2T AGV-5T AGV-10T AGV-20T AGV-30T AGV-40T AGV-50T
Rated load(t) 2 5 10 20 30 40 50
Table Size Length(mm) 2000 2500 3000 3500 4000 5000 5500
Widthmm) 1500 2000 2000 2200 2200 2200 2500
Heigth(mm) 450 550 600 800 1000 1200 1300
Wheel Base(mm) 1080 1650 1650 1650 1650 2000 2000
Wheel Dia.(mm) Φ200 Φ280 Φ350 Φ410 Φ500 Φ500 Φ550
Battery Voltage(V) 48 48 48 72 72 72 72
Weel Quantity(pcs) 4 4 4 4 4 4 4
Ground Clearance(mm) 50 50 50 50 50 50 50
Max Wheel load(KN) 14.4 25.8 42.6 77.7 110.4 142.8 174
Reference Wight(t) 2.3 3.6 4.2 5.9 6.8 7.6 8

Running Route

20 Tonne Production Line Railless Automatic Guided Vehicle

Product Feature

20 Tonne Production Line Railless Automatic Guided Vehicle

Company Profile

20 Tonne Production Line Railless Automatic Guided Vehicle

20 Tonne Production Line Railless Automatic Guided Vehicle

20 Tonne Production Line Railless Automatic Guided Vehicle
