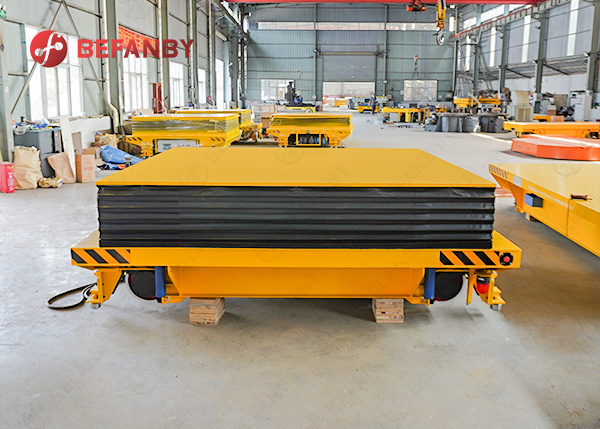

Steel Box Beam Structure Rail Transfer Cart With Lift Device
Steel Box Beam Structure Rail Transfer Cart With Lift Device
Steel Box Beam Structure Rail Transfer Cart With Lift Device
Steel Box Beam Structure Rail Transfer Cart With Lift Device
Steel Box Beam Structure Rail Transfer Cart With Lift Device
Steel Box Beam Structure Rail Transfer Cart With Lift Device
Specifications
Brand Name :
BEFANBY
Model Number :
KPT
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan,China
MOQ :
1 set/sets
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1500 set/sets, per year
Delivery Time :
20-30 days as usual delivery
Packaging Details :
The motorized slab trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Color :
Customized
Warranty :
24 months
Load capacity :
Customized
Power supply :
Battery Operated
Port :
Qingdao/Tianjin/Shanghai
Application :
Heavy industry,outdoor,construction
Materials :
Steel
Description
Steel Box Beam Structure Rail Transfer Cart With Lift Device
The scissor lift rail transport vehicle is an innovative handling equipment that combines a rail guidance system and a scissor lifting structure. This equipment is specifically designed for the efficient and smooth transport of heavy goods along fixed rail routes, while providing precise vertical lifting capabilities.

Steel Box Beam Structure Rail Transfer Cart With Lift Device


Products Details

Steel Box Beam Structure Rail Transfer Cart With Lift Device


Our Company

Steel Box Beam Structure Rail Transfer Cart With Lift Device

Steel Box Beam Structure Rail Transfer Cart With Lift Device Steel Box Beam Structure Rail Transfer Cart With Lift Device
Customized Support
Steel Box Beam Structure Rail Transfer Cart With Lift Device
Product Specifications
Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load (t) 10 16 25 30 40 50 63 80 100 150
Table Length L (mm) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Table Width W (mm) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Table Height H (mm) 500 550 600 600 650 650 700 800 900 1200
Wheel Base (mm) 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge (mm) 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter (mm) 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 25 20 20 20 20 20 20 20 20 18
Motor Power (kW) 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity (Ah) 160 180 250 250 300 330 400 400 440 600
Battery Voltage (V) 48 48 48 48 48 48 48 72 72 72
Max Wheel Load (kN) 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight (t) 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
Key Features

Rail Guiding System: Runs along a preset track, ensuring precise and highly repeatable transport paths.

Scissor Lift Mechanism: Employs a mechanical scissor structure for smooth lifting and adjustable height. High load-bearing capacity.

Intelligent Control System: Equipped with an advanced control panel and sensors for precise positioning. Also allows for fixed-point stopping.

Modular Design: Track layout and load capacity can be customized to suit different sites and needs.

Safety Protection System: Multiple safety devices including fall arrestors, overload protection, and emergency braking.


Production Process
Steel Box Beam Structure Rail Transfer Cart With Lift Device
Related Products
Steel Box Beam Structure Rail Transfer Cart With Lift Device
Frequently Asked Questions
How can I operate the transfer cart?
Please don't worry, dear friend. The English user manual and parts manual will be delivered with your items together.
How to ensure your product quality?
We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary, our installation engineer will go to your factory to guide the installation.
Whether you can offer customized transfer car?
Yes, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
Whether there is professional technician assist our installation?
Yes. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance so that we can arrange technicians.
