10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power
10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power
10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power
10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power
10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power
10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power
10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power
10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power
Specifications
Brand Name :
BEFANBY
Model Number :
KPX
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan,China
MOQ :
1 set/sets
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1500 set/sets, per year
Delivery Time :
20-30 days as usual delivery
Packaging Details :
The transfer cart will be packed by the tarp, the parts will be packed y the high quality wooden case.
Color :
Customized
Warranty :
24 months
Load capacity :
Customized
Power supply :
Battery Operated
Port :
Qingdao/Tianjin/Shanghai
Application :
factory,workshop,construction site
Materials :
Steel
Description

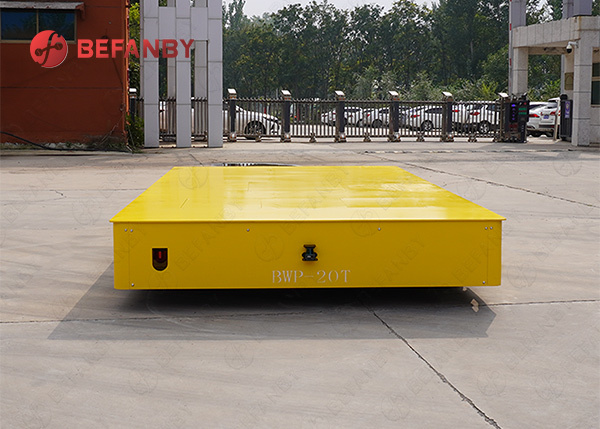

10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery

This 20-ton capacity trackless transfer cart was custom-designed for an Australian customer based on their specific site conditions. Designed for high-strength material handling, it features a welded steel frame construction, ensuring stability and reliability during prolonged, heavy-duty operation. Its wheels utilize polyurethane-coated wheels, offering superior flexibility, slip resistance, and wear resistance, providing greater flexibility and efficiency for material handling on the production line.

10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power

Products Details

10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power

Key Specifications
Model KPT-2T KPT-5T KPT-10T KPT-16T KPT-20T KPT-25T KPT-30T KPT-40T KPT-50T KPT-63T KPT-80T KPT-100T KPT-150
Rated Load (t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length (mm) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Table Size Width (mm) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Table Size Height (mm) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base (mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter (mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity (pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 25 25 25 20 20 20 20 20 20 20 20 18
Motor Power (kw) 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running Distance (m) 25 25 25 25 30 30 50 50 50 50 50 50
Max Wheel Load (KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight (t) 2.5 3.5 4 5.2 5.6 6.2 6.5 7.3 7.8 10.5 12.3 14.1 26.2
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100
Product Features


10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power

Trackless Design: This handling vehicle does not require tracks, making it suitable for various complex and changing work environments. It can operate flexibly on hard surfaces, supporting forward and backward movement, variable speed control, and other modes of operation, greatly improving operational flexibility and transportation efficiency.

Powerful Power System: Equipped with an advanced drive system. It uses a DC motor and battery power supply, allowing for smooth operation on various terrains. The power system is designed to handle heavy loads and continuous long-term operation, ensuring efficiency and stability during material transportation.

10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power
Our Manufacturing Facility
10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power 10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power 10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power
Shipping & Delivery

Flexible Application Scenarios: Suitable for various trackless transportation needs, especially in situations with limited space and complex turns. It can be applied not only in factory workshops and warehousing and logistics centers, but also provides reliable solutions in complex transportation environments.

Safety Assurance: This handling vehicle is also equipped with multiple safety protection systems, such as three-color warning lights and emergency stop devices, ensuring safety during high-load operation and effectively avoiding risks caused by operational errors or equipment malfunctions.

10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power
Related Products
10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power 10 Ton Long Lifetime Steel Welding Frame Battery Transfer Cart With Battery Operated Power
Product Categories: Material Handling Cart, Rail Transfer Cart
