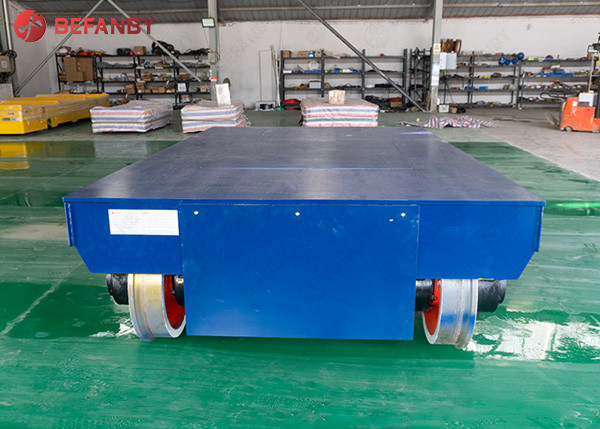

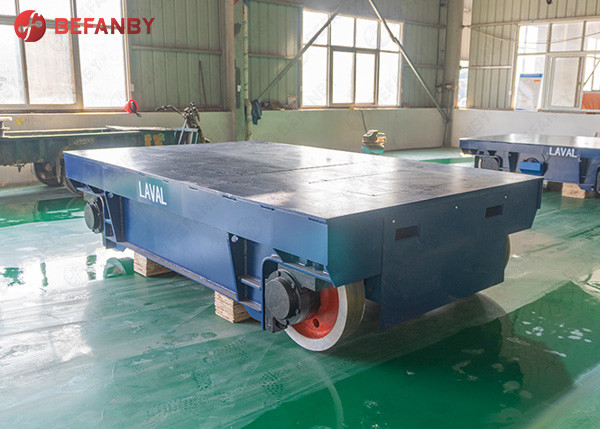

10T DC Motor Transfer Cart For Battery Powered
10T DC Motor Transfer Cart For Battery Powered
10T DC Motor Transfer Cart For Battery Powered
10T DC Motor Transfer Cart For Battery Powered
10T DC Motor Transfer Cart For Battery Powered
10T DC Motor Transfer Cart For Battery Powered
10T DC Motor Transfer Cart For Battery Powered
10T DC Motor Transfer Cart For Battery Powered
Specifications
Brand Name :
BEFANBY
Model Number :
KPX-15T
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan,China
MOQ :
1 set/sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1500 set/sets, per year
Delivery Time :
40-50 days as usual delivery,30-40days for urgent delivery
Packaging Details :
The material transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Color :
Customized
Application :
Workshop,machinery industry, Assembly Line,Billet Industry
Running speed :
0-20m/min
Load capacity :
1-1500 Ton
Power supply :
Battery Powered
Product Name :
10T DC Motor Transfer Cart For Battery Powered
Material :
Steel
Description

10T DC Motor Transfer Cart For Battery Powered

Product Description

Power supply: Rail electric trannsfer carts usually use batteries as power sources, usually DC batteries, which are stored in the battery pack of the electric transfer carts.


Control system: The electric transfer cart is equipped with a control system, which is responsible for monitoring and controlling the operation of the electric motor. The system receives instructions from an operator or automated system and controls the speed and direction of the motor accordingly.


Motor type: Rail electric transfer carts use DC motors or AC motors as driving devices. DC motors are simple and easy to control and are widely used in rail electric transfer carts, while AC motors have advantages in energy consumption utilization, load capacity, etc.
Power transmission and control signals: The electric motor transmits power to the wheels or rails through the transmission device, and the control system sends control signals to the electric motor to control the rotation speed and steering of the electric motor.

10T DC Motor Transfer Cart For Battery Powered10T DC Motor Transfer Cart For Battery Powered

Product Details

10T DC Motor Transfer Cart For Battery Powered

Product Parameter

Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8

Application

10T DC Motor Transfer Cart For Battery Powered

10T DC Motor Transfer Cart For Battery Powered

Product Feature

10T DC Motor Transfer Cart For Battery Powered

Our Advantages

10T DC Motor Transfer Cart For Battery Powered

10T DC Motor Transfer Cart For Battery Powered

Shipping

10T DC Motor Transfer Cart For Battery Powered

Company Profile

10T DC Motor Transfer Cart For Battery Powered
10T DC Motor Transfer Cart For Battery Powered
10T DC Motor Transfer Cart For Battery Powered
