25° Horizontal Angle Blanket Strength Tester IEC60335-2-17
25° Horizontal Angle Blanket Strength Tester IEC60335-2-17
Specifications
Dimension :
2500*800*2500mm (L*D*H)
Driving Sprocket Speed :
33rpm/min
Horizontal Angle of Arms :
25°
Rubber Spheres :
R30mm, hardness: 40-50HR
Diameter of Sprocket :
230mm
Size of Rotating Drum :
Ø160*2000mm
Lifting Device :
Double sprocket cylinder lifts
Maximum Size of Blanket Under Test :
2100*2000mm
Brand Name :
KingPo
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
20 set per month
Packaging Details :
safety carton pack or plywood box
Certification :
Calibration Certificate
Price :
To be quoted
Description
25° Horizontal Angle Blankets Mechanical Strength Test Apparatus IEC60335-2-17 Figure BB.1 To BB.3 for Blanket Evaluation
Product Specifications
Attribute Value
Dimension 2500*800*2500mm (L*D*H)
Driving Sprocket Speed 33rpm/min
Horizontal Angle of Arms 25°
Rubber Spheres R30mm, hardness: 40-50HR
Diameter of Sprocket 230mm
Size of Rotating Drum Ø160*2000mm
Lifting Device Double sprocket cylinder lifts
Maximum Size of Blanket Under Test 2100*2000mm
Product Overview
Our premium Electrical Safety Test Equipment meets the highest industry standards for safety and performance. Designed for precise blanket evaluation according to IEC60335-2-17 standards, this apparatus features a robust double sprocket cylinder lifting mechanism for secure and stable testing operations.
Key Features
  • Hardwood Cylindrical Force on Drum: 5.1N
  • Weight Capacity: 6kg/m or total mass 6.5kg
  • Adjustable Test Time: 0-9999 cycles (typically set to 1000)
  • Precision rubber spheres (R30mm, 40-50HR) for accurate testing
  • Sturdy square bar support (25*25*2000mm)
  • Button control with meter for easy operation
Technical Parameters
Parameter Specification
Control Method Button control + meter
Test Time 0-9999 cycles (settable)
Driving Sprocket Speed 33rpm/min
Weight Capacity 6kg/m or total mass 6.5kg
Applications
This testing apparatus is essential for quality control in manufacturing facilities, certification laboratories, and research institutions. It's specifically designed for evaluating the mechanical strength of blankets according to international IEC standards, ensuring product safety and compliance.

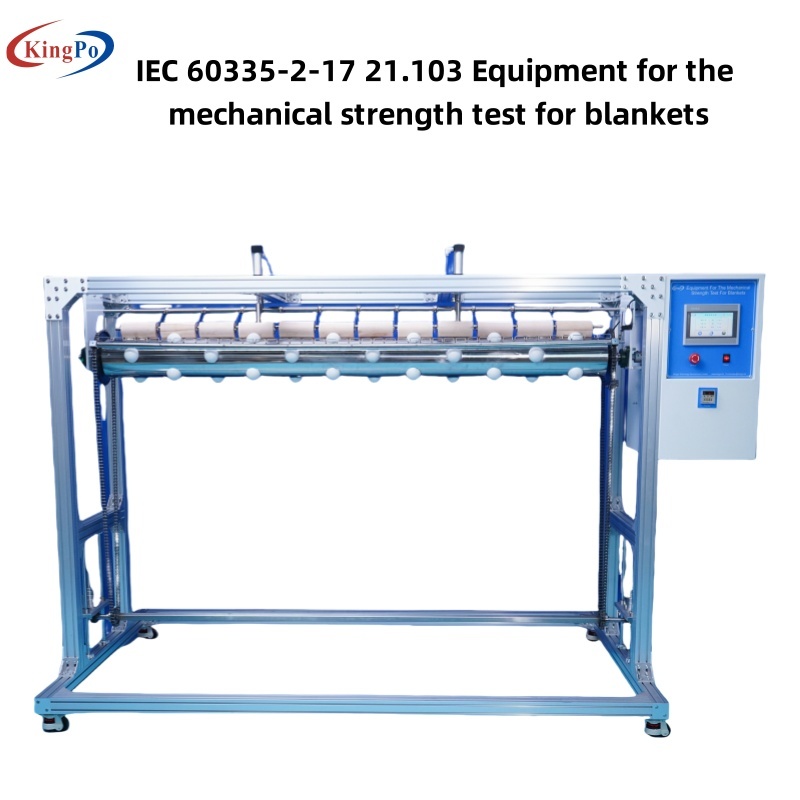

Product Image
25° Horizontal Angle Blanket Strength Tester IEC60335-2-17
Frequently Asked Questions
What is the brand name of this equipment?
The brand name is KingPo.
Where is this equipment manufactured?
It is made in China.
What is the minimum order quantity?
The minimum order quantity is 1 unit.
What are the payment terms?
Payment terms are T/T (Telegraphic Transfer).
What is the monthly production capacity?
We can supply up to 20 sets per month.
