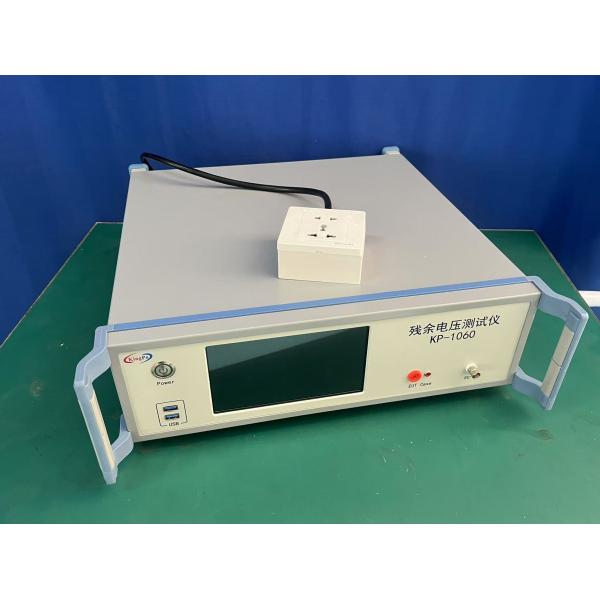

Precision Plug Capacitor Discharge Tester for IEC Standards
Precision Plug Capacitor Discharge Tester for IEC Standards
Precision Plug Capacitor Discharge Tester for IEC Standards
Precision Plug Capacitor Discharge Tester for IEC Standards
Specifications
Brand Name :
kingpo
Model Number :
KP-1060
Certification :
iso9001 ce
Place of Origin :
china
MOQ :
1
Price :
To be quoted
Payment Terms :
T/T
Supply Ability :
30 units per month
Delivery Time :
30 working days
Packaging Details :
safety carton pack or plywood box
Ventilation Volume :
constant at (85 ± 1) L / min
Productivity :
20-30times/min
Ready To Ship :
Yes
Quick Delivery :
Yes
Test Time :
0-9999s
Dimensions :
120.5 x 62 x 147.5 cm
Mask Test Diameter :
ø25mm
Flow Range :
0 ～ 150 l / min
Bap :
10 hPa (10 cmH2O)
Quality Assurance :
Yes
Stable Performance :
Yes
Scanning Depth :
Up to 30 cm
Original Manufacturer :
Yes
Technical Support :
Yes
Host Power Consumption :
<80W
Description
Plug capacitor discharge tester
Precision Plug Capacitor Discharge Tester for IEC Standards
Description

For IEC Testing of residual voltage after plug disconnect.
The KP-1060 disconnects the line at the voltage peak and analyzes results to the requirements of various Standards, allowing quick results.
Scope output for viewing decay waveform.
Presets for IEC 61010-1, IEC62368-1, IEC 60601-1 and IEC60335-1.

Features
  • Accurate; in accordance with CTL voltage and time specifications.
  • Disconnects input test voltage at positive or negative peak, normal and reversed polarity
  • Tests Line-Ground, Line-Neutral and Neutral-Ground.
  • Micro-controller Technology, one button test, easy setup, LCD display indicates test results.
  • Ergonomically designed for safety, speed and efficiency.
  • Designed for product development, production and laboratory use.
  • Rugged construction that can withstand a 6″ drop with no damage.
  • Cables, manual and calibration certificate included.
  • One year warranty.
Technical Parameters:
Minimum/Maximum Test Voltage 0-300V
Maximum Test Current 10A
Fuse: 10A, 250V, time delay, 1-¼" x ¼"
Probe Impedance = 100MΩ, < 25pF
AC Peak Detection Accuracy EUT disconnect within 5% of supply voltage peak
Test Time Range 0.50 - 99.0 Seconds
Test Time Accuracy ±1% for times ≥ 1 second, +/- 10ms for < 1 second.
Voltage Setting Resolution 0.1V
Voltage Meter Accuracy ±1.5% of instrument measuring range
Frequency 50-60Hz.
Rated Input Voltage 220V 50/60HZ
