Specifications
Standard :
IEC 60320-1
voltage :
220V
Brand Name :
kingpo
Model Number :
ORT-1
Certification :
ISO 17025
Place of Origin :
china
MOQ :
1
Price :
To be Quoted
Payment Terms :
T/T
Supply Ability :
1000 sets per month
Delivery Time :
35 working days
Packaging Details :
safety carton pack or plywood box
Description
IEC 60320-1 Heating Test Apparatus for Connectors
Product Specifications
Attribute Value
Standard IEC 60320-1
Voltage 220V
Product Overview

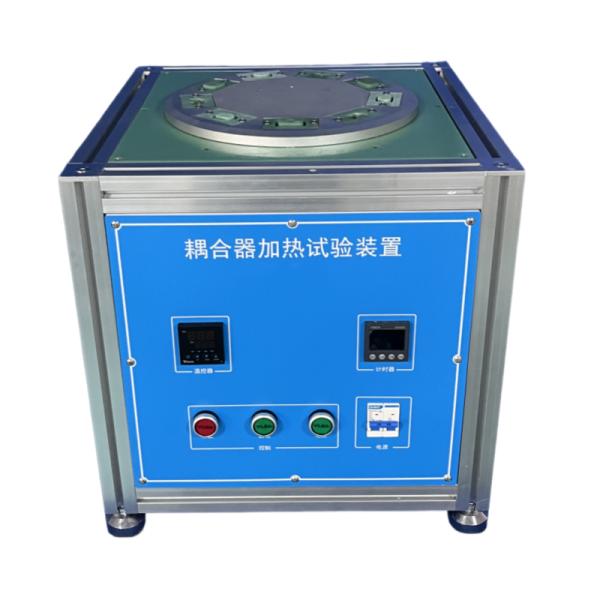

IEC 60320-1 Heating Test Apparatus designed for testing connectors and plugs according to international standards.

IEC 60320-1 Heating Test Apparatus for Connectors 220V
Compliance Standards

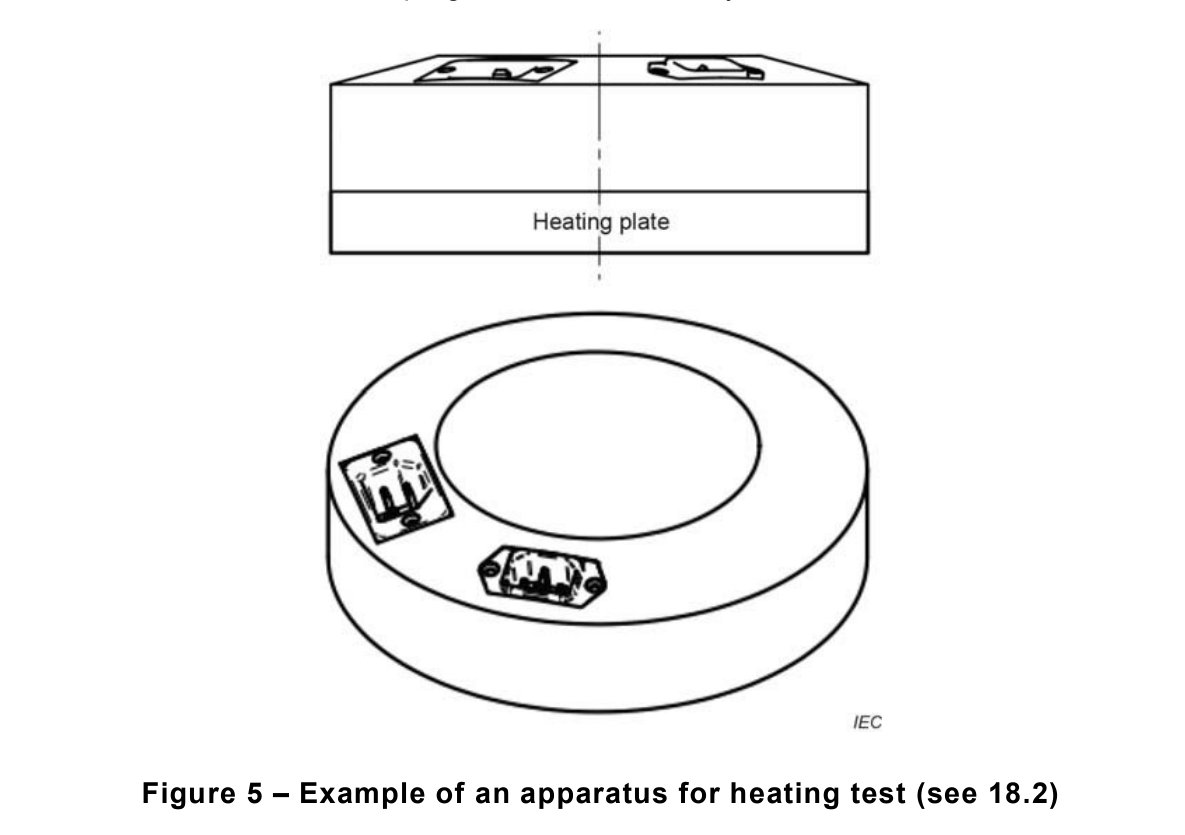

IEC60320-1:2021 "Appliances couplers for household and similar general purposes - Part 1: General requirements" clause 18.2 and figure 13.

Technical Parameters
  • Test stations: 9
  • Control method: Electrical
  • Heating method: Electrical heating, RT+10~160℃±2℃ (presettable)
  • Test contents:
    • 10A heat-resistant appliance input socket: test 10A connector at 120°±2°
    • 10A severe heat-resistant appliance input socket: test 10A connector at 155°±2°
    • 16A severe heat-resistant appliance input socket: test 16A connector at 155°±2°
  • Test duration: 0-99 hours and 59 minutes (presettable)

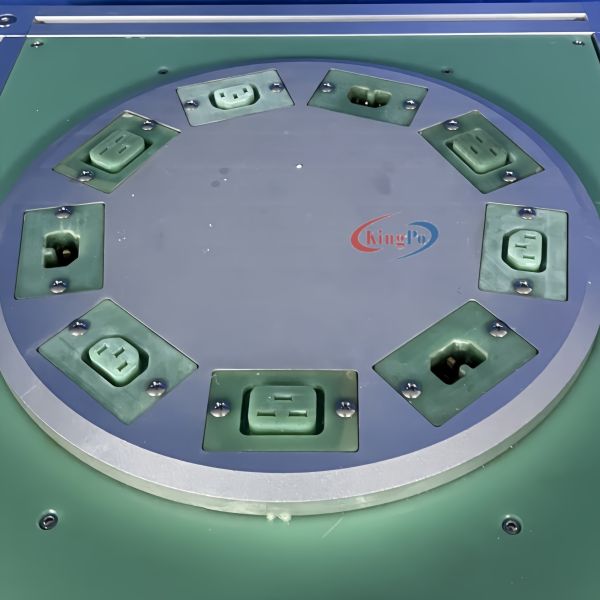

  • Center distance of coupler: Arranged uniformly in a circle of Φ230mm (tests 9 samples simultaneously)
  • Standard gauge: Includes 10A heat resistance, 10A server heat resistance and 16A server heat resistance heating gauges
IEC 60320-1 Heating Test Apparatus for Connectors 220V IEC 60320-1 Heating Test Apparatus for Connectors 220V
