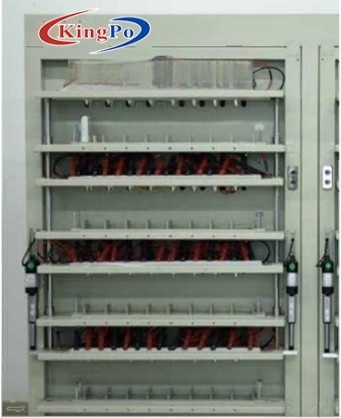

128-Channel Battery Testing Equipment with Energy-Saving PWM Mode
128-Channel Battery Testing Equipment with Energy-Saving PWM Mode
Specifications
Brand Name :
Kingpo
Place of Origin :
China
MOQ :
1
Price :
To be quoted
Payment Terms :
T/T
Description
Energy Saving Feedback Type Component Capacity Equipment
Functional Application

Designed for testing small power cylindrical and square lithium or polymer cells, this equipment features high power efficiency with constant current and constant voltage operation for smooth, impact-free performance.

  • Independent channel operation with modular design for easy maintenance
  • Customizable configurations available
Main Performance
  • Workflow Control: Full system control
  • Charging Mode: Constant current and constant voltage operation
  • Cut-off Condition: Time-based charging termination
  • Independent Power Sources: Each battery channel has dedicated constant current/voltage sources to prevent interference
  • Energy Efficient: PWM charging mode reduces heat generation and power loss
  • Protection Features: Upper voltage limit protection for each battery channel
  • Adjustable Settings: Centralized current/voltage management with computer or keyboard configuration
  • Process Flexibility: Supports up to 32 programmable process steps
  • Power Failure Recovery: Automatic workflow resumption after power restoration
Technical Parameters
Number of channels 128
Channel action mode Whole cabinet control, single point constant current, constant pressure mode
Voltage Measurement
Measurement range 0~5V
Precision ±0.1%FS
Resolution 1mV
Current Measurement
Measurement range 0.005~60A
Precision ±(0.05%RD+0.1%FS)
Resolution 1mA
