Specifications
Brand Name :
kingpo
Certification :
iso9001 ce
Place of Origin :
china
MOQ :
1
Price :
To be quoted
Payment Terms :
T/T
Supply Ability :
3 sets per month
Delivery Time :
35 working days
Packaging Details :
safety carton pack or plywood box
Requirements for Environmental :
Cleanliness No pollutant source in the surrounding environment TVOC 500μg/m³
Adjustable range of temperature :
10~40℃ high temperature cleaning 250℃
Adjustable range of humidity :
40~70%R.H(20℃~30℃)
Pressure :
10±5pa
Description

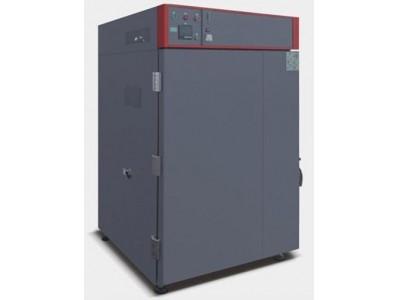

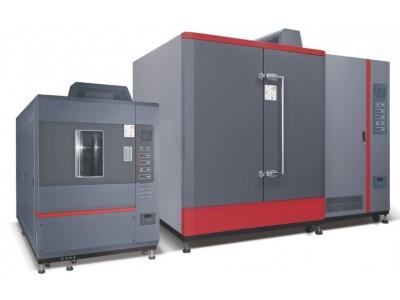

Climatic Test Chambers
Usage:
  • Confirm the influence of environment variables on the release rate and release properties of materials and products;
  • Grade materials and products according to their release properties;
  • Develop and validate the proposed model of indoor air pollutions;
  • Evaluate indoor air quality(IAQ) according to the data and proposed model of indoor pollutants;
Implementation Standards:
  • GB 18580 ''Indoor Decorating and Renovating Materials Limit of Formaldehyde Emission of Manmade Board and its Products''
  • GB 18584 ''Indoor Decorating and Renovating Materials Limits of Harmful Substances from Wooden Furniture(Exposure draft)
  • GB 18587 ''Indoor Decorating and Renovating Materials Releasing Limitation of Harmful Substances from Carpet,Carpet Pad and Carpet Adhesive''
  • ENV717-1 "Environmental chamber method for measurement of formaldehyde emission of manmade board.
  • EN13419-1 "Determination of VOCs Release quantity of building products Chapter One the method for releasing and testing the environmental chamber"
  • HJ571-2010 "Technical requirements for environmental labeling manmade board and its products"
  • HJ566-2010 "Technical requirements for environmental labeling manmade board and its products"
  • ISO12219-4
  • VDA-276
Reference Standards
  • ASTM D5116-97 "Standard guide for determination of organic release from interior materials and products with small scale environmental chamber"
  • ASTM D6330-98 "Standard operation for determination of VOCs(excluding formaldehyde) release from wooden board with small environmental chamber under specified test conditions"
  • ASTM D6330-98 "Standard operation for determination of VOCs release from interior materials and products with full scale environmental chamber"
  • ASTM D1333-96 "Standard test method for determination of formaldehyde concentration and release rate in gases released from wood products with large scale environmental chamber"
Technical Parameters:
Product Model V-50 V-100 V-250 V-500 V-1000A V-1000B V-2000
Volume of chamber(WxDxH)cm 56*30*30 63*40*40 70*60*60 102*70*70 158*80*80 91*100*110 200*110*90
Environmental temperature 5~35℃
Environmental humidity ≤90%R.H
Requirements for Environmental Cleanliness No pollutant source in the surrounding environment TVOC 500μg/m³
Adjustable range of temperature 10~40℃ high temperature cleaning 250℃
Adjustable range of humidity 40~70%R.H(20℃~30℃)
Pressure 10±5pa
Temperature fluctuation ±0.3℃(fluctuation)
Temperature deviation ±0.5℃(deviation)
Humidity fluctuation ±2.5%R.H
Humidity deviation ±3%
Air exchange rate 0.2~5/h±5%(optional 0.2~3/h±5%)
Air velocity 0.1m/s 0.3m/s(Range)
Power Alternating current 380V/50Hz three-phase power supply 4/5 wiring system
Starting power 5kw 6kw 8kw 10kw 15kw 15kw 20kw
Operating power 3kw 3.4kw 5kw 6kw 7kw 7kw 9kw
Rate of recovery Formaldehyde,octanol,4 phenyl cyclohexene,dodecane and tetradecane have a recovery rate larger than 80%
Clean air system Standard configuration
Background concentration of methanol single VOC has a concentration smaller than 2 μg/m³,T VOC 20 μg m dust filtrated TVOC has a concentration smaller than 20μg/m³
