IEC 60335-2-36 Compliant Mechanical Durability Test Device for Commercial Induction Cookers with 100,000 Test Cycles and PLC Intelligent Control
IEC 60335-2-36 Compliant Mechanical Durability Test Device for Commercial Induction Cookers with 100,000 Test Cycles and PLC Intelligent Control
Specifications
Brand Name :
kingpo
Model Number :
KP-3536B
Certification :
ISO 17025
Place of Origin :
china
MOQ :
1
Price :
1
Payment Terms :
T/T
Supply Ability :
1
Delivery Time :
30
Packaging Details :
Wooden box
Description

Product information:


The test equipment conforms to the standard requirements of IEC60335-2-36 clause 18.101.

The equipment is used to verify the equipment equipped with induction heating source. The structure should be able to guarantee 100,000 times of normal use without failure that may weaken the requirements of this part. The insulation should not be damaged and the connections should not be loose. The mechanical durability and reliability performance should be tested.

Test principle: The motor drives the mechanical arm to drive pans or equivalent metal objects up and down the induction cooker at a certain speed. At the same time, the induction cooker is turned on and off to simulate its normal use for 10,000 times of life test, and the load voltage is adjustable.

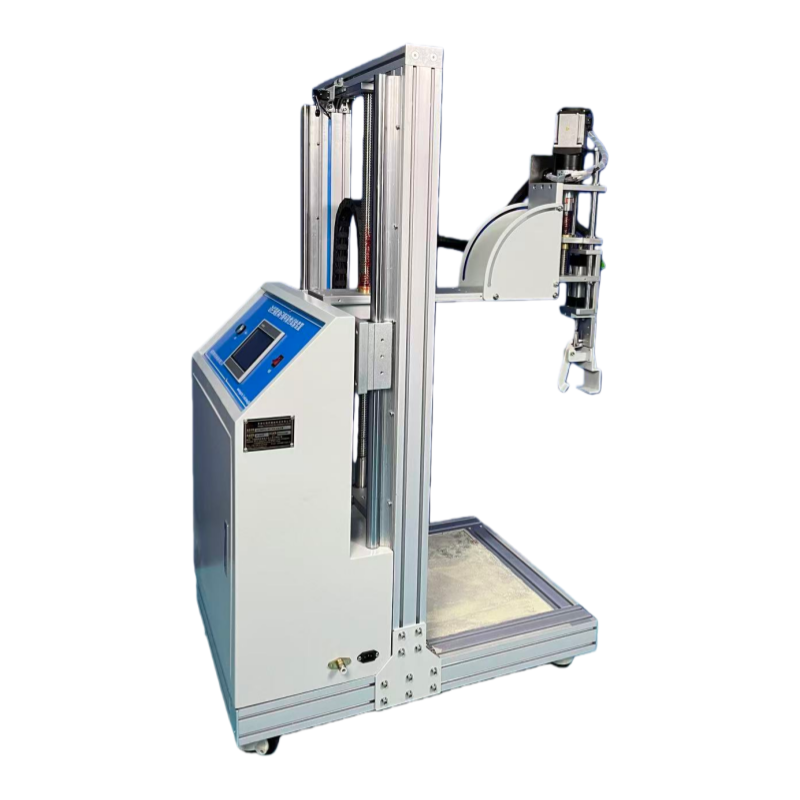

Structure: The equipment consists of an electrical control cabinet (including a load voltage regulator), a rack, and a mechanical arm mounted on the equipment.

Device dimensions: Approximately: 1200×9000×1600 (mm) W×D×H

Device weight: Approximately 150kg

Technical parameters:


Input power AC220V 50HZ, 2kW
Electrical control PLC intelligent control
Operation interface 7-inch color touch screen operation
Test station 1 station
Test sample range 1800*1800*1200mm max
Drive mode Servo motor
Action mode Up and down movement
Saucepan Or metal plate with equal mass area
Mechanical arm 1 set
Movement speed 0-100mm/s, can be preset on the touch screen, can calculate the speed of the moving time 5s
Place residence time 0-999999s, can be preset on touch screen
Number of tests 0-999999 times, can be preset on touch screen
Test frequency 0-10 times/min can be preset, default is 6 times/min
Sample load voltage 0-250V, adjustable
Test items Mechanical durability test of commercial induction cooker
Safety protection device Leakage protection, overload and short circuit protection
Motor Overload, short circuit protection
