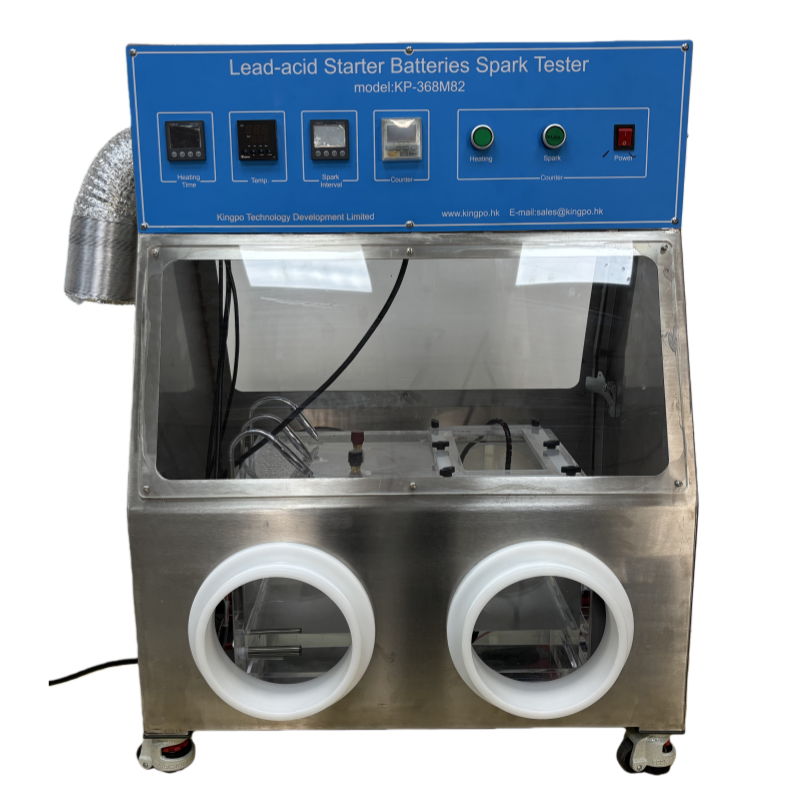

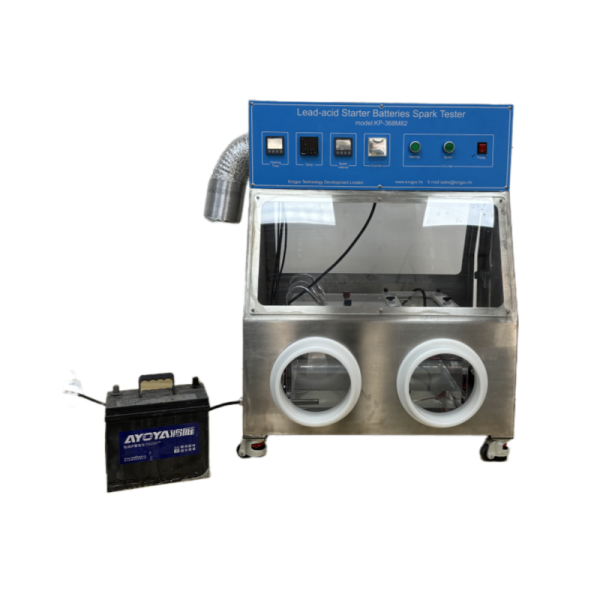

IEC 60896-21 Spark Tester with 0.02mJ Spark Energy and 304 Stainless Steel Construction for Lead-acid Starter Batteries Testing
IEC 60896-21 Spark Tester with 0.02mJ Spark Energy and 304 Stainless Steel Construction for Lead-acid Starter Batteries Testing
IEC 60896-21 Spark Tester with 0.02mJ Spark Energy and 304 Stainless Steel Construction for Lead-acid Starter Batteries Testing
IEC 60896-21 Spark Tester with 0.02mJ Spark Energy and 304 Stainless Steel Construction for Lead-acid Starter Batteries Testing
IEC 60896-21 Spark Tester with 0.02mJ Spark Energy and 304 Stainless Steel Construction for Lead-acid Starter Batteries Testing
IEC 60896-21 Spark Tester with 0.02mJ Spark Energy and 304 Stainless Steel Construction for Lead-acid Starter Batteries Testing
Specifications
Brand Name :
Kingpo
Model Number :
KP-368M82
Certification :
ISO 17025
Place of Origin :
China
MOQ :
1
Price :
1
Payment Terms :
T/T
Supply Ability :
2
Delivery Time :
30
Packaging Details :
Wooden box
Description
IEC 60896-21 Spark Test for Lead-acid Starter Batteries
Comprehensive testing equipment designed for protection against internal ignition from external spark sources in lead-acid starter batteries, compliant with international safety standards.
IEC 60896-21 Spark Tester with 0.02mJ Spark Energy and 304 Stainless Steel Construction for Lead-acid Starter Batteries Testing
Technical Specifications
Compliance Standards: IEC 62368-1-Annex M.8.2, IEC 60896-21:2005 cl.6.4, IEC 61430 Clause 4.2
Power Supply: 220V 50/60HZ, 300W
Equipment Dimensions: 800 * 770 * 950mm

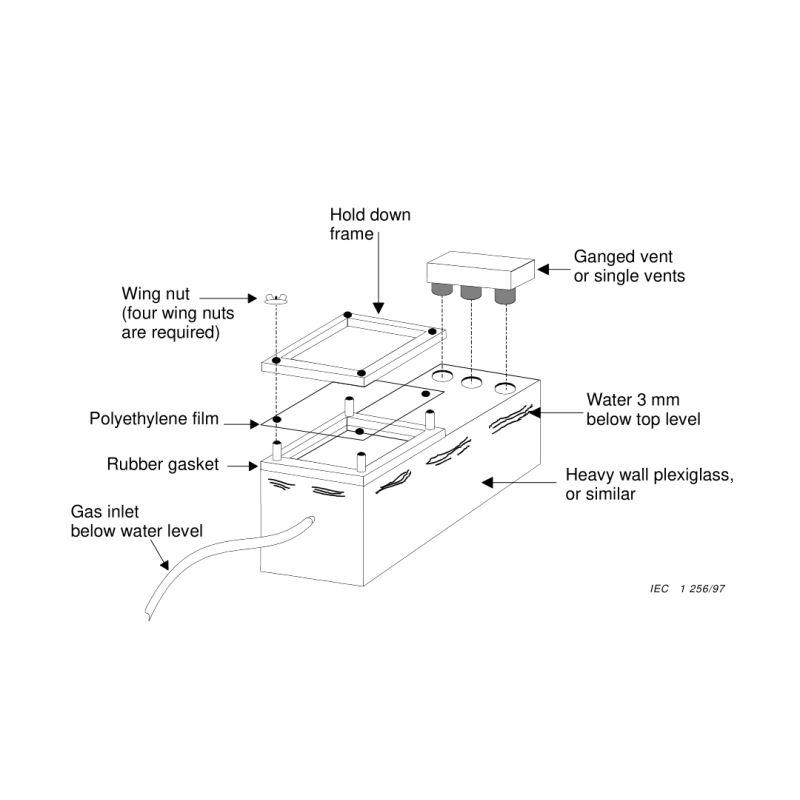

Polyethylene Film Thickness: 0.025mm
Water Temperature: 40±2℃
Heating Time: 0-9999 hours programmable
Spark Energy: > 0.02mJ
Spark Time: 0-999 seconds programmable
Spark Interval: 10 seconds
Spark Count: 6 times
Spark Length: 0.5-2mm

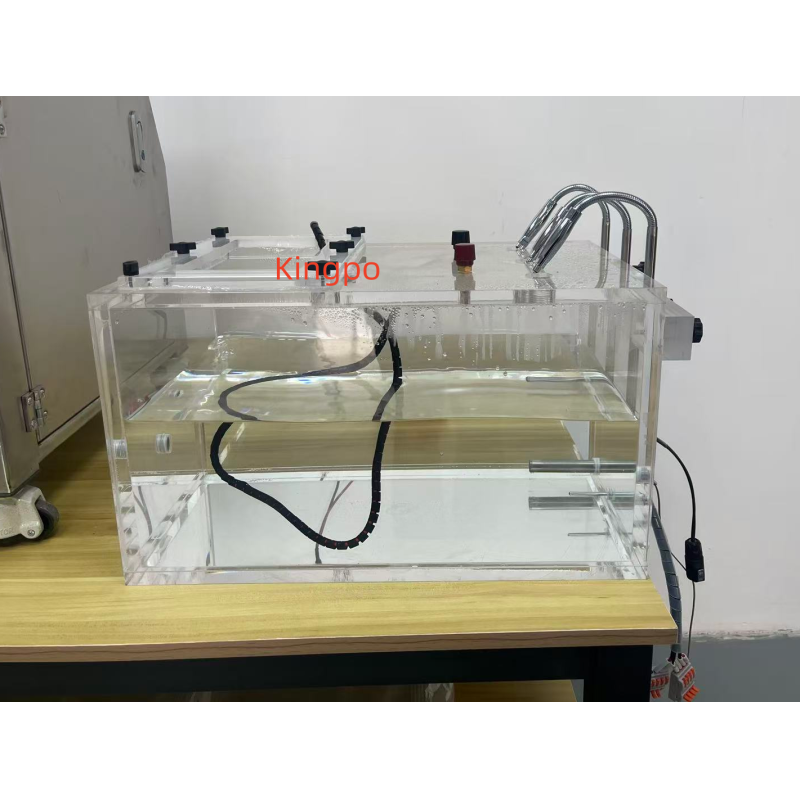

Water Bath Material: Transparent acrylic
Box Material: 304 stainless steel
IEC 60896-21 Spark Tester with 0.02mJ Spark Energy and 304 Stainless Steel Construction for Lead-acid Starter Batteries Testing
IEC 60896-21 Spark Tester with 0.02mJ Spark Energy and 304 Stainless Steel Construction for Lead-acid Starter Batteries Testing
IEC 60896-21 Spark Tester with 0.02mJ Spark Energy and 304 Stainless Steel Construction for Lead-acid Starter Batteries Testing
This advanced spark testing system ensures complete safety compliance for lead-acid starter batteries, providing precise control over testing parameters and reliable protection assessment against internal ignition risks.
