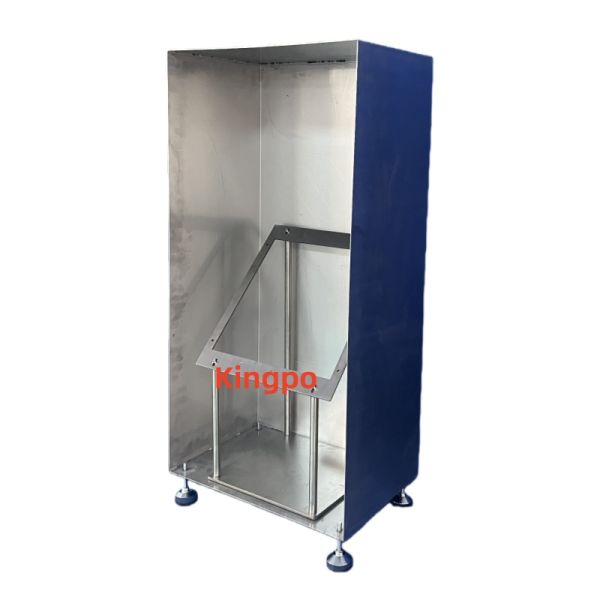

IEC 60335-2-17 Grid Test Equipment with 45° Inclined Angle and 300 mm x 300 mm Dimensions for Electrical Safety Testing
IEC 60335-2-17 Grid Test Equipment with 45° Inclined Angle and 300 mm x 300 mm Dimensions for Electrical Safety Testing
IEC 60335-2-17 Grid Test Equipment with 45° Inclined Angle and 300 mm x 300 mm Dimensions for Electrical Safety Testing
IEC 60335-2-17 Grid Test Equipment with 45° Inclined Angle and 300 mm x 300 mm Dimensions for Electrical Safety Testing
IEC 60335-2-17 Grid Test Equipment with 45° Inclined Angle and 300 mm x 300 mm Dimensions for Electrical Safety Testing
IEC 60335-2-17 Grid Test Equipment with 45° Inclined Angle and 300 mm x 300 mm Dimensions for Electrical Safety Testing
Specifications
Brand Name :
kingpo
Model Number :
KP-35179
Certification :
ISO 17025
Place of Origin :
china
MOQ :
1
Price :
To be quoted
Payment Terms :
T/T
Supply Ability :
50 pcs per month
Delivery Time :
15 working days
Packaging Details :
safety carton pack or plywood box
Place Of Origin :
Guangdong,China(mainland)
Standard :
IEC 60335-2-17
dimensions  :
300 mm x 300 mm
height :
350mm
Description
IEC 60335-2-17 Grids Inclined at 45°
Product Overview
IEC 60335-2-17 Grid Test Equipment with 45° Inclined Angle and 300 mm x 300 mm Dimensions for Electrical Safety Testing IEC 60335-2-17 Grid Test Equipment with 45° Inclined Angle and 300 mm x 300 mm Dimensions for Electrical Safety Testing
Testing Procedure

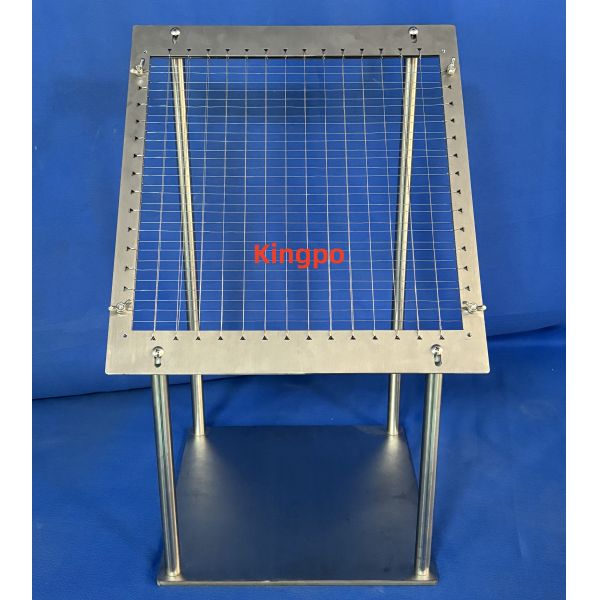

A heating element or internal wiring sample of at least 150 mm in length is placed on a grid inclined at 45°. The grid is constructed from parallel wires of 0.6 mm diameter spaced 20 mm apart. The sample is positioned perpendicular to the horizontal wires and centered between them. A second grid of similar dimensions is then placed on the sample, with its horizontal wires offset by 10 mm from those of the first grid. Both grids remain parallel to the sample and properly aligned with each other throughout the testing process.
