IEC 60730-1 Tumbling Barrel Tester
Automatic electrical controls – Part 1: General requirements - tumbling barrel tester
Product Overview
This IEC 60730-1 compliant tumbling barrel tester is designed to determine compliance with safety requirements, specifically evaluating the mechanical strength of test samples according to IEC 60730-1 and related standards.
IEC 60730-1 Tumbling Barrel Tester with 500mm Fall Height 5 RPM Rotation Speed and 3mm Steel Impact Surface
Test Apparatus Description

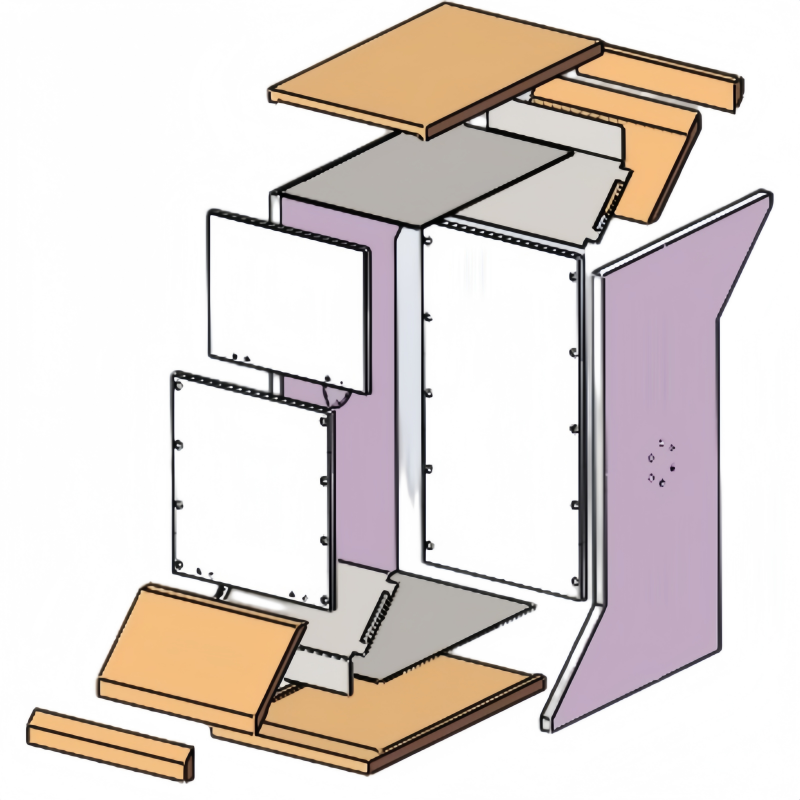

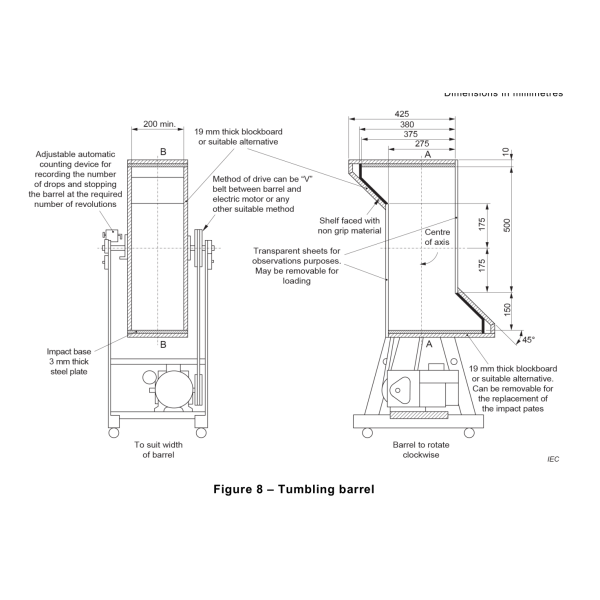

The testing apparatus consists of a blockboard barrel constructed with precise shape and dimensions as specified in relevant standards. The barrel rotates about its central axis at five revolutions per minute, subjecting test samples to repeated falls from a height of 500mm onto steel plates fitted inside the barrel.
Technical Specifications
Power Supply 220V 50Hz (other voltages and frequencies available)
Rate of Falls 10 times per minute
Speed of Rotation 5 rotations per minute
Bottom Impact Surface 3mm steel plate
Barrel Quantity 1
Fall Height 500mm
Chute Length 275mm
Inner Height 650mm
Testing Times Maximum 9999 times
IEC 60730-1 Tumbling Barrel Tester with 500mm Fall Height 5 RPM Rotation Speed and 3mm Steel Impact Surface IEC 60730-1 Tumbling Barrel Tester with 500mm Fall Height 5 RPM Rotation Speed and 3mm Steel Impact Surface
