IP54 IP50 Six Axis Universal Robot 2058mm Maximum Arm Length
IP54 IP50 Six Axis Universal Robot 2058mm Maximum Arm Length
Specifications
Brand Name :
KINGPO
Model Number :
BRTIRUS2030A
Certification :
ISO9001
Place of Origin :
DONGGUAN
MOQ :
1
Price :
7000
Payment Terms :
T/T
Arm Length(mm) :
2058
Repeatability(mm) :
±0.05
Loading Ability(KG) :
30
Power Source(KVA) :
10.16
Net Weight(KG) :
310
Description

Six Axis Universal Robot

Product details

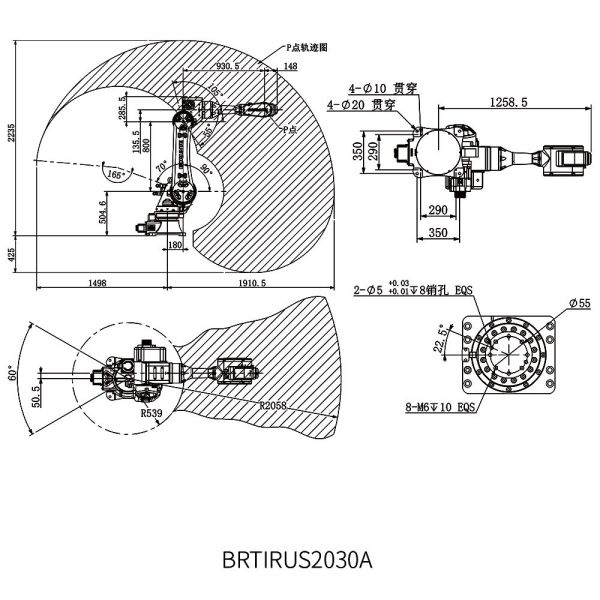

BRTIRUS2030A is a six-axis robot developed by BORUNTE ROBOT Co.,Ltd for complex applications with multiple degrees of freedom. The maximum load is 30KG and the maximum arm length is 2058mm. The flexibility of six degrees of freedom can be used to handle the scenes such as injection parts taking, machine loading and unloading, assembly and handling. The protection grade reaches IP54 at the wrist and IP50 at the body. Dust-proof and water-proof. The repeat positioning accuracy is ±0.05mm.

Main Specification

Arm Length(mm): 2058

Repeatability(mm): ±0.05

Loading Ability(KG): 30

Power Source(KVA): 10.16

Net Weight(KG): 310

Item Range Max.Speed
Arm J1 ±150° 102°/S
J2 -90°/+70° 103°/S
J3 -55°/+105° 123°/S
Wrist J4 ±180° 245°/S
J5 ±120° 270°/S
J6 ±360° 337°/S

IP54 IP50 Six Axis Universal Robot 2058mm Maximum Arm Length

No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
