IEC 60529 GB2423.37 Dust Test Chamber with 1000x1000x1000 Internal Size and 18m/s Adjustable Airflow Speed for Dust Resistance Testing
IEC 60529 GB2423.37 Dust Test Chamber with 1000x1000x1000 Internal Size and 18m/s Adjustable Airflow Speed for Dust Resistance Testing
Specifications
Brand Name :
KingPo
Certification :
Calibration certificate
Place of Origin :
China
MOQ :
1
Price :
To be Quoted
Payment Terms :
T/T
Supply Ability :
25 per month
Delivery Time :
25
Packaging Details :
satety plastic tool box or plywood package.
Internal size :
1000 * 1000 * 1000
External size :
3000X7000X2200
dust concentration :
10G / m³ ± 1
Airflow speed :
18m / s ± 1.5 (adjustable)
Quartz powder dosage :
6kg / m³
Duct width :
800MM
Description
IEC 60529 GB2423.37 Dust Test Chamber
Professional dust resistance testing chamber designed for electronics and automotive components. Meets ISO 20653-6K standards for comprehensive protection level testing requirements.
Model Specifications
Model: KP-SC6K1000-CS
Studio Size: 1000 × 1000 × 1000 mm (D×W×H)
External Size: 3000 × 7000 × 2200 mm (D×W×H)
Design & Construction
Design Principle: Features a tapered funnel design with bottom dust collection port. High-pressure turbine axial flow fan creates suction, circulating dust through the system repeatedly. Includes heating and drying functionality in dust storage box.
Materials & Components
  • Inner Material: SUS304 Stainless Steel
  • Outer Material: Stainless Steel
  • Large Observation Window on Chamber Door
  • Unique Duct Design for Laminar Flow Concentration
  • Complete System: Pre-blowing dust box, chamber, collection port, circulating air duct, vacuum system, and more
Technical Parameters
  • Fine Sand: >150μm
  • Coarse Sand: <890μm
  • Dust Concentration: 10G/m³ ± 1
  • Airflow Speed: 18m/s ± 1.5 (adjustable)
  • Quartz Powder: 6kg/m³ (70% quartz sand, 15% chalk, 15% kaolin)
  • Duct Width: 800mm
Control System
  • PLC & Touch Screen Intelligent Control (Teelong brand)
  • PT100 Test Sensor
  • Sand and Dust Concentration Meter
  • Anemometer for Wind Speed Adjustment
  • Comprehensive Safety Protections
  • Power: AC380V 50Hz
  • Vacuum Pump: 60-600L/H
Controller Features: Programmable controller with adjustable settings for dust blowing time, cycle time, test duration (0s ~ 999h99m99s), and power control.
Additional Specifications
  • Metal Mesh: 50μm nominal diameter, 75-150μm spacing
  • Dryer: Plastic Centrifugal Fan
  • Includes 5KG Talc
Component Specifications
Component Spec/Model Quantity Origin
Motor Protector
1 Omron
Insurance Seat 10A 1
Power Switch Button
3 Shanghai HongBo
Small Relay HH54P/220V 2 Schneider (France)
AC Contactor 1810 1 Schneider (France)
AC Contactor 0910 2 Schneider
Solid State Relay 40A 1 Yangming, Taiwan
Terminal Block 1520 1
Touch Screen I700 1 Kunlun Winton
PLC 24 1 XinJe
Product Images
IEC 60529 GB2423.37 Dust Test Chamber with 1000x1000x1000 Internal Size and 18m/s Adjustable Airflow Speed for Dust Resistance Testing

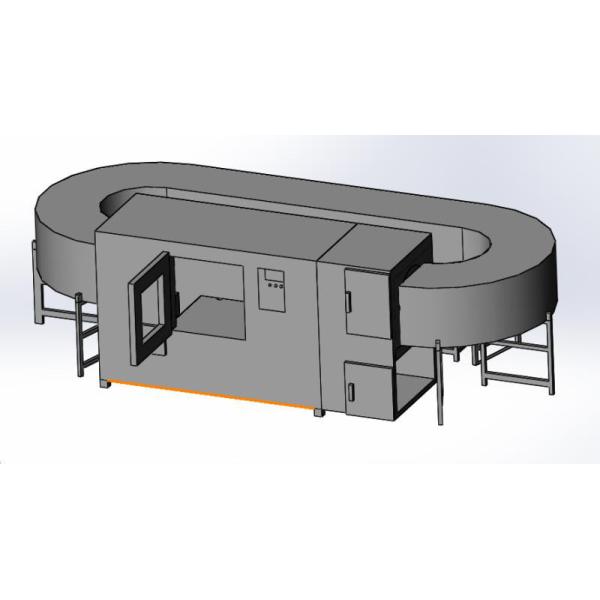

Chamber Overview
IEC 60529 GB2423.37 Dust Test Chamber with 1000x1000x1000 Internal Size and 18m/s Adjustable Airflow Speed for Dust Resistance Testing
Side View
IEC 60529 GB2423.37 Dust Test Chamber with 1000x1000x1000 Internal Size and 18m/s Adjustable Airflow Speed for Dust Resistance Testing
Internal Structure
IEC 60529 GB2423.37 Dust Test Chamber with 1000x1000x1000 Internal Size and 18m/s Adjustable Airflow Speed for Dust Resistance Testing
Dust System - Rear Side
IEC 60529 GB2423.37 Dust Test Chamber with 1000x1000x1000 Internal Size and 18m/s Adjustable Airflow Speed for Dust Resistance Testing
Lighting & Test Systems
IEC 60529 GB2423.37 Dust Test Chamber with 1000x1000x1000 Internal Size and 18m/s Adjustable Airflow Speed for Dust Resistance Testing
Dust Blow Port & Turntable
IEC 60529 GB2423.37 Dust Test Chamber with 1000x1000x1000 Internal Size and 18m/s Adjustable Airflow Speed for Dust Resistance Testing
Dust Collection Duct
