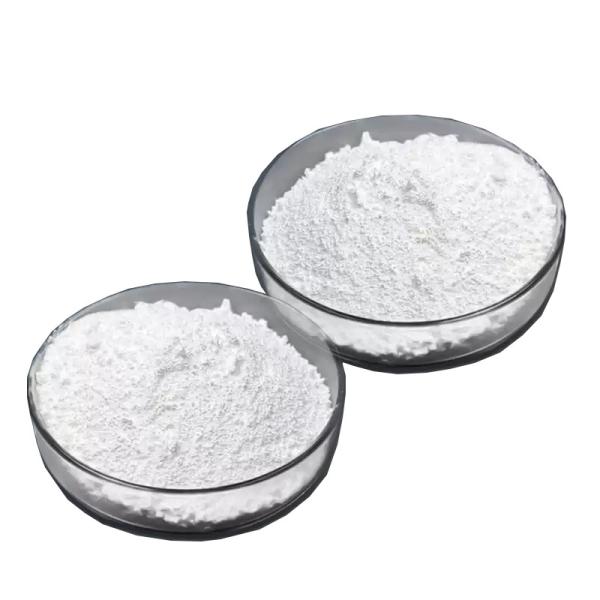

Niobium-containing LLZTO Tantalum-niobium co-doped lithium lanthanum zirconium oxygen solid electrolyte (500nm) battery material

LLZTO (Li_6.4La₃Zr_1.4Ta_0.6O₁₂) is a garnet-type solid-state electrolyte material that has garnered significant attention in the field of solid-state lithium-ion batteries due to its high ionic conductivity, excellent electrochemical stability, and compatibility with metallic lithium. Below is a detailed introduction to LLZTO:

1. ​Structure and Properties​
   LLZTO belongs to the cubic garnet structure, which exhibits high lithium-ion conductivity (typically ranging from 10^-4 to10^-3S/cm at room temperature). This makes it a promising candidate for solid-state electrolytes. The lithium ions in its structure can migrate rapidly through a three-dimensional network, enabling efficient ion conduction.
2. ​Interfacial Stability​
   The interfacial stability between LLZTO and liquid electrolytes is a critical challenge. Research has shown that constructing self-assembled monolayers (e.g., 4-chlorobenzenesulfonic acid) on the LLZTO surface can significantly enhance interfacial stability, optimize solvation structures, and improve ionic conductivity (e.g., up to 1.19 mS/cm) and lithium-ion transference numbers (e.g., 0.647).
3. ​Application of Composite Materials​
   LLZTO is often combined with other materials (e.g., graphene) to further enhance its performance. For instance, LLZTO-graphene composites with 25% graphene content exhibit optimal electrochemical performance, achieving a room-temperature ionic conductivity of 2.46×10_-4S/cm and excellent cycling stability.
4. ​Ion Redistribution Function​
   LLZTO is also utilized as an ion redistributor in composite separators, where it uniformly guides lithium-ion deposition to suppress lithium dendrite formation, thereby improving battery safety and cycling performance.
5. ​Machine Learning-Assisted Research​
   Through machine learning techniques, researchers can quantify the impact of LLZTO’s microstructure (e.g., porosity and grain size) on its ionic conductivity, enabling optimized material design.

In summary, LLZTO is a high-performance solid-state electrolyte material. Through interfacial modifications, composite material designs, and advanced research methodologies, its performance and application potential have been significantly enhanced.

Parameters
