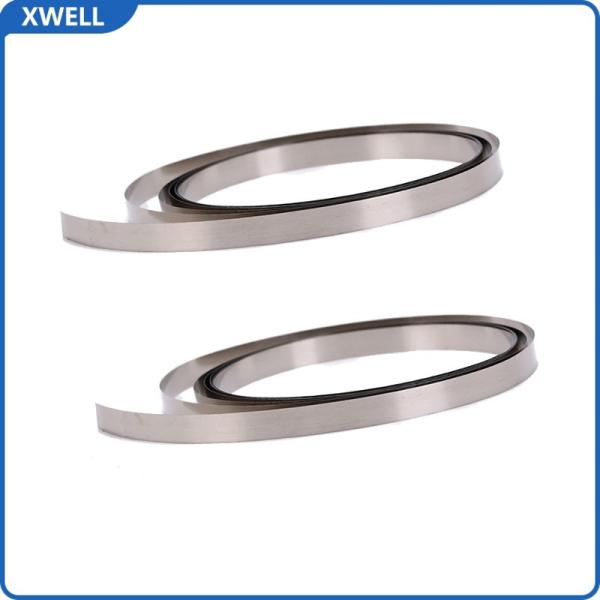

18650 Nickel Sheet 21700 Nickel Strip 26650 32650 Nickel Sheet Battery Connector Single And Multiple Parallel Staggered Nickel Sheet

1. Product Overview​​

Our ​​high-precision battery nickel strips​​ are engineered for ​​secure and efficient welding​​ of lithium battery packs (18650, 21700, 26650, 32650). Available in ​​single/multi-cell configurations​​ with ​​adjustable pitch spacing​​, these strips ensure ​​low resistance, high conductivity, and mechanical durability​​ for solar, EV, and energy storage applications.

​2. Key Features​​

Universal Compatibility​​: Supports ​​18650 (18.5mm/19mm pitch), 21700 (21.5–23mm pitch), 26650, 32650 cells​​.
​​Optimized Conductivity​​: ​​0.12/0.15/0.2mm thickness​​ options balance flexibility and current capacity.
Customizable Designs​​: Choose ​​horizontal/vertical/cross grooves, screw holes, or no grooves​​.

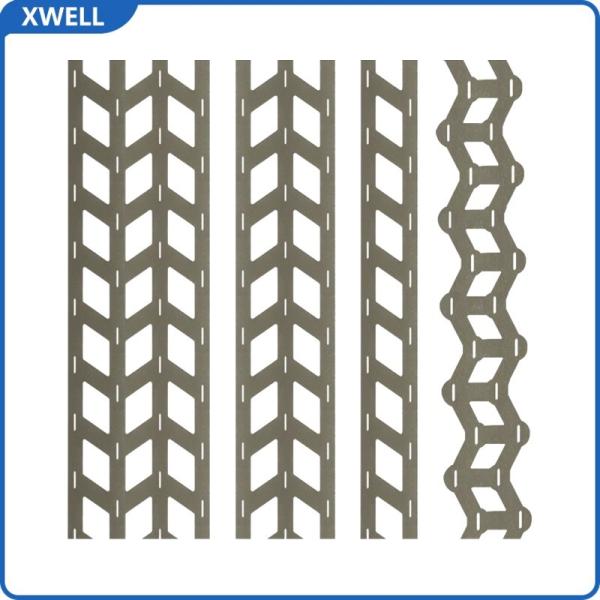

​​Precision Engineering​​: Laser-cut ​​square holes (11.5–15mm) + 7–8mm shoulders​​ for perfect alignment.
Adjustable Spacing​​: Roll-direction spacing can be tailored to battery pack layouts.

​3. Technical Specifications​​

​​Common Parameters​​:

• ​​Material​​: Pure nickel (Ni≥99.6%)
• ​​Thickness​​: 0.12mm / 0.15mm / 0.2mm
• ​​Groove Options​​: None, horizontal, vertical, cross, screw holes
• ​​Default​​: Horizontal groove (if unspecified)

4. Applications​​

• ​​Electric Vehicles (EVs)​​: High-current welding for lithium battery modules.
• ​​Solar Energy​​: Solar street light battery packs.
• ​​Energy Storage​​: Grid-scale and home battery systems.
• ​​DIY Projects​​: Custom battery assemblies for drones, power tools, etc.

​5. Why Choose Our Nickel Strips?​​

Superior Conductivity​​: Low resistance (<0.5mΩ) for minimal energy loss.
Mechanical Strength​​: Resists vibration and thermal expansion stresses.
Flexible Configurations​​: Supports ​​single parallel (1P), multi-parallel (2P–8P), and staggered layouts​​.
✔ ​​OEM Support​​: Custom hole patterns, thickness, and lengths available.
