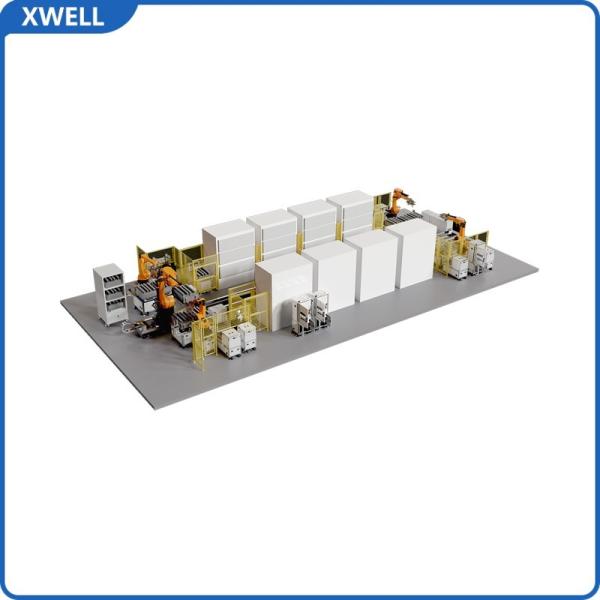

Fully Automatic Soft Pack Pouch Cell Manufacturing Vacuum Drying Line
Fully Automatic Soft Pack Pouch Cell Manufacturing Vacuum Drying Line
Specifications
Brand Name :
XWELL
Model Number :
XW-FAPD
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
1 set per month
Delivery Time :
60-90 work days
Packaging Details :
Wooden box
Model :
XW-FAPD
​​Throughput​ :
≥20 PPM (Pieces Per Minute)
Temperature Uniformity​ :
±2°C (empty chamber)
Vacuum Leak Rate​ :
≤10 Pa·L/s
Heating/Cooling Time​ :
≤20 mins (room temp to 120°C or reverse)
Robot Accuracy​ :
Loading: ±0.06mm / Handling: ±0.1mm
​​Safety​ :
Anti-collision clamps + data traceability
Applications​ :
Electric Vehicles
Price :
100000-10000000USD/Negotiable
Description

Fully Automatic Soft Pack Pouch Cell Battery Vacuum Drying Line

1. Product Overview​​

Our ​​Fully Automatic Vacuum Drying Line​​ is a ​​state-of-the-art, modular system​​ designed for ​​high-efficiency drying of pouch-type lithium battery cells​​. Combining ​​precision heating, robotic handling, and real-time monitoring​​, this line ensures ​​optimal moisture removal, temperature uniformity, and process traceability​​ for EV, ESS, and consumer battery production.

​​2. Key Features​​

Intelligent Process Control​​:

  • Automated workflow with ​​barcode scanning, scheduling, baking, moisture testing, and cooling​​.
  • Real-time parameter monitoring + ​​alarm/root-cause analysis​​ for quality assurance.
    Advanced Heating System​​:
  • ​​Contact + clamping design​​ minimizes heat loss (uniformity: ​​±2°C​​).
  • Rapid heating/cooling: ​​≤20 mins​​ to reach 120°C (adjustable range).
    High-Precision Robotics​​:
  • ​​Dual robotic arms​​ for loading/unloading (±0.06mm) and handling (±0.1mm).
    Modular Efficiency​​:
  • Independent modules prevent interference (​​OEE ≥95%​​).
  • Compact chambers with ​​fast evacuation (≤10 Pa·L/s)​​ and thermal insulation.

​​3. Technical Specifications​​

​​Parameter​​ ​​Specification​​
​​Throughput​​ ≥20 PPM (Pieces Per Minute)
​​Temperature Uniformity​​ ±2°C (empty chamber)
​​Vacuum Leak Rate​​ ≤10 Pa·L/s
​​Heating/Cooling Time​​ ≤20 mins (room temp to 120°C or reverse)
​​Robot Accuracy​​ Loading: ±0.06mm / Handling: ±0.1mm
​​Safety​​ Anti-collision clamps + data traceability

​​4. Unique Advantages​​

Energy-Saving Design​​: Low power consumption + ​​insulated clamps​​ for idle heat retention.
Scalable Layout​​: Adaptable to ​​high-mix cell sizes​​ (custom chamber volumes).
​​Industry 4.0 Integration​​: ​​Historical data export​​ for process optimization.

​​5. Applications​​

  • ​​Electric Vehicles​​: Drying ​​high-capacity pouch cells​​ for battery packs.
  • ​​Energy Storage​​: Moisture control for ​​grid-scale ESS modules​​.
  • ​​Consumer Electronics​​: Precision drying for ​​portable device batteries​​.
