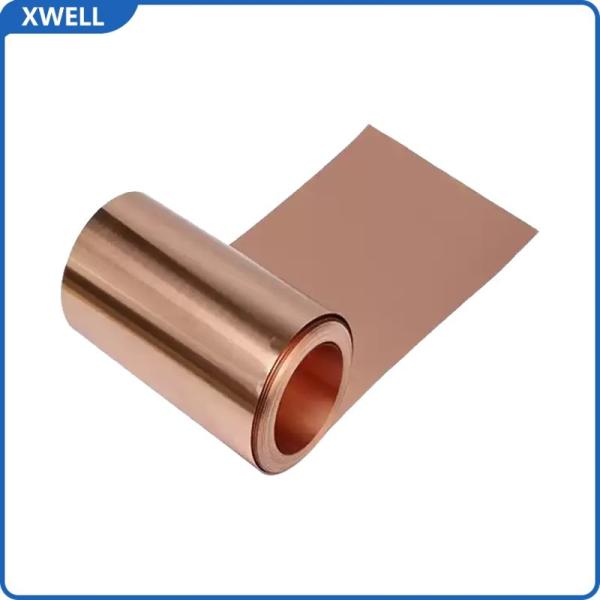

Solid State Lithium Battery Double Sided Light Research Soft Electrolytic Copper Foil
Solid State Lithium Battery Double Sided Light Research Soft Electrolytic Copper Foil
Specifications
Brand Name :
XWELL
Model Number :
6um*150mm
Certification :
CE
Place of Origin :
CHINA
MOQ :
100g
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1 t/month
Delivery Time :
5-7 days
Packaging Details :
Plastic package
Model :
6um*150mm
Thickness​ :
​​8μm​
​​Surface Density (g/m²)​ :
70-75
​Tensile Strength (kg/mm²)​ :
≥30 (RT), ≥20 (180°C)
Elongation (%)​ :
≥5 (RT), >3 (180°C)
​​Surface Roughness (Rz) :
≤3.0 μm
Temperature :
Room Temperature (25°C)
Applications​ :
​​Solid-State Battery Prototyping​
Price :
1-1000USD/Negotiable
Description

Copper Foil Solid-state Lithium Battery Double-sided Light Research Soft Electrolytic Copper Foil Ultra-thin Electrode Current Collector Rolled Copper Foil

Product Overview​​

Our dual-sided glossy electrolytic copper foil is engineered specifically for solid-state lithium battery R&D and prototyping. With thickness options from ​​8μm to 35μm​​, this ultra-smooth (Rz ≤3.0 μm) current collector delivers exceptional mechanical stability under high-temperature (180°C) solid-state electrolyte processing conditions while maintaining optimal flexibility for electrode fabrication.

​​Key Specifications​​

​​Thickness​​ ​​Surface Density (g/m²)​​ ​​Tensile Strength (kg/mm²)​​ ​​Elongation (%)​​ ​​Surface Roughness (Rz)​​
​​8μm​​ 70-75 ≥30 (RT), ≥20 (180°C) ≥5 (RT), >3 (180°C) ≤3.0 μm
​​9μm​​ 85-90 ≥30, ≥20 >5, >3 <3.0 μm
​​12μm​​ 100-105 ≥30, ≥20 >5, >3 <3.0 μm
​​15μm​​ 128-133 ≥30, ≥20 >6, >3 <3.0 μm
​​20μm​​ 175-181 >30, ≥20 ≥8, >3 <3.0 μm
​​25μm​​ 220-225 ≥30, ≥20 >8, >4 <3.0 μm
​​30μm​​ 265-270 ≥30, ≥20 ≥9, >5 <3.0 μm
​​35μm​​ 285-290 ≥30, ≥20 ≥9, >5 <3.0 μm

RT = Room Temperature (25°C)

Material Advantages​​

  1. ​​Solid-State Battery Optimization​​

    • Ultra-smooth dual-sided finish (Rz ≤3.0 μm) minimizes interfacial voids with sulfide/oxide solid electrolytes
    • Maintains mechanical integrity at solid-state processing temperatures (180°C tensile strength ≥20 kg/mm²)

  2. ​​Research-Grade Flexibility​​

    • Soft temper design enables >9% elongation for wrinkle-free electrode laminates
    • Compatible with solvent-free dry electrode manufacturing

  3. ​​Customization Options​​

    • ​​Antioxidant treatments​​: Enhanced stability for air-sensitive solid electrolytes
    • ​​Thickness variants​​: Sub-8μm foils available for ultra-high-energy-density prototypes
    • ​​Surface modifications​​: Lithiophilic coatings (CuO nanoneedles, Ag nanoparticles)

Applications​​

  • ​​Solid-State Battery Prototyping​​: Sulfide (Li₆PS₅Cl) and oxide (LLZO) electrolyte integration
  • ​​Lithium Metal Anode Substrates​​: Dendrite suppression via uniform current distribution
  • ​​Flexible Battery Research​​: Foldable/stretchable current collector development

Technical Notes​​

  • ​​Certification​​: Compliant with GB/T standards (test methods per manufacturer specifications)
  • ​​Packaging​​: Vacuum-sealed rolls with desiccant (100m/roll standard)
  • ​​Customization​​: Surface density and antioxidant properties negotiable
