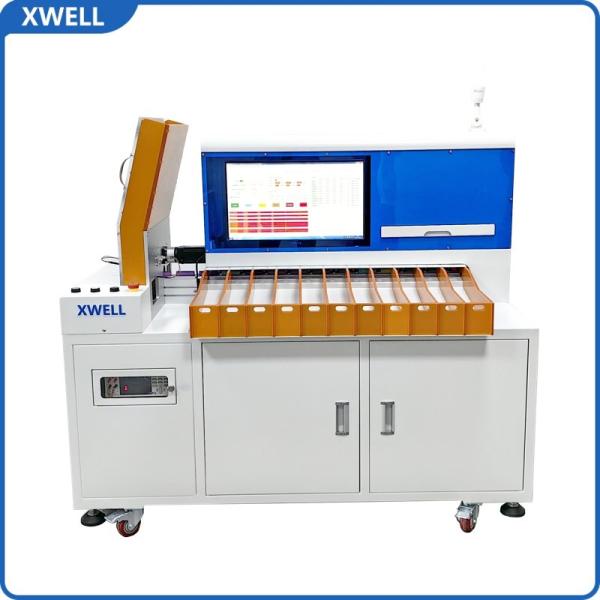

26650 32650 18650 11 Channels Battery Cell Sorting Machine Common Use Accepted
26650 32650 18650 11 Channels Battery Cell Sorting Machine Common Use Accepted
Specifications
Brand Name :
XWELL
Model Number :
BDBS-11
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
10000-1000000USD/Negotiable
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
30 PCS a month
Delivery Time :
7-15days
Packaging Details :
wooden case
Compliance :
CE Certified
Warranty :
1 year
Description

11 Channels 18650&26650&32650 Common Use Accepted Battery Cell Sorting Machine

Feature:
1. Compact and reasonable equipment structure, beautiful appearance, small volume.
2. Simple equipment operation, workers can easily learning.
3. The equipment is controlled by PLC and PC. The PLC is responsible for battery feeding, battery handling and battery sorting. The PC is responsible for battery testing data collection, voltage internal resistance rating, high work efficiency, saving manpower, good product performance.
4. Equipment materials are made of high quality thick cold-rolled sheet metal, aluminum frame.

5. The device is equipped with universal movable casters, the device can easily move when it is displaced.

Technological Process:

The battery resistance and voltage are set by the battery testing software of the upper computer, and the following functions are automatically completed by PLC:

Manual filling of batteries→wave wheel rotating feeding→belt carrying batteries→ejector cylinder jacking batteries→ test cylinder closure (test instrument uploading data, software sorting)→mechanical gripper sorting batteries.

The equipment is equipped with acoustooptic alarm, which can be sorted to complete automatic shutdown. Full material alarm, fault alarm, etc. Operating parameters can be set according to the actual requirements of customers.

Specication

Voltage AC220
Power 900
Voltage Accuracy ±0.1 RDG
Resistance Accurac ±0.5 RDG
Battery type 18650 21700 26650 32650 32700 etc cylindrical cell
Air Pressure
 0.4-0.6Mpa
Size 860*1350*1200
