100Ah-280Ah Prismatic Lithium Battery Cell Stacking Machine
100Ah-280Ah Prismatic Lithium Battery Cell Stacking Machine
Specifications
Brand Name :
XWELL
Model Number :
XW-12
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
50 pcs a month
Delivery Time :
7- 15days
Packaging Details :
wooden case
Input Power :
1.5kw
Warranty :
One Year warranty with lifetime support
Payment :
T/T
Price :
10000-1000000USD/Negotiable
Description

Prismatic Lithium Battery Cell Stacking Machine

Ⅱ,Equipment performance parameters :
2.1 Applicable battery model:Prismaitc cell:100Ah-280Ah；
2.2 Module compatible size specifications:Length:200-900mm,width:100-320mm,height:80-250mm；
2.3 Probability of equipment damage to products:≤0.1%；
2.4 Equipment program control method: PLC control；
2.5 Capacity speed:≥8ppm(Specific depends on manual operation)；
2.6 NG equipment failure rate:≤1%(Malfunctions caused solely by equipment)；
2.7 Squeeze pressure range:0-500kg,Squeezing reaches the set upper limit value, with a red buzzing light alarm function；
2.8 Squeeze stroke range 0-110mm adjustable；
2.9 Using high-precision pressure load gauges,Accuracy:0.1%；
2.10 Squeezing and moving with repeated positioning accuracy:±0.05mm；

2.11 Real time monitoring of extrusion distance and extrusion pressure dual protection, each parameter can be adjusted through PLC；

Ⅲ,Equipment environmental conditions requirements :
3.1 Ambient temperature:5ºC-35 ºC
3.2 Humidity:20%-90%
3.3 Air Pressure :0.5～0.6 Mpa
3.4 Supply voltage:220V-50Hz/60Hz
3.5 Area to weight ratio:≤200kg/M²
3.6 Grounding type: direct grounding type
  • Specication
  • Equipment Efficiency 50 groups/hour (10PCS battery cells)
    Equipment grafting rate ≥98%
    Extrusion stroke 1000mm
    Stacking maximum pressure 100KG
    Adaptable size range L:50~250mm；W:20~100mm；H:100~300 mm
    Pressure control error 0.1KG
    Control system PLC+touch screen
    Input power supply AC220V/50HZ
    Weight 300kg
    Equipment appearance reference size L*W*H=1570*500*1400mm
  • Picture

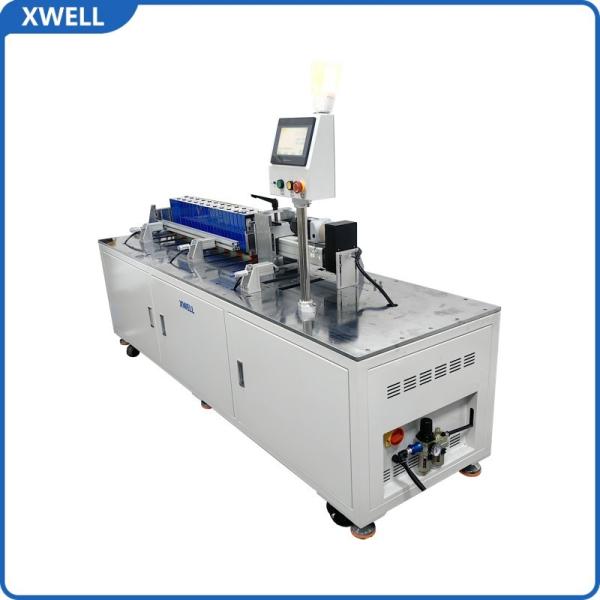

  • 100Ah-280Ah Prismatic Lithium Battery Cell Stacking Machine
