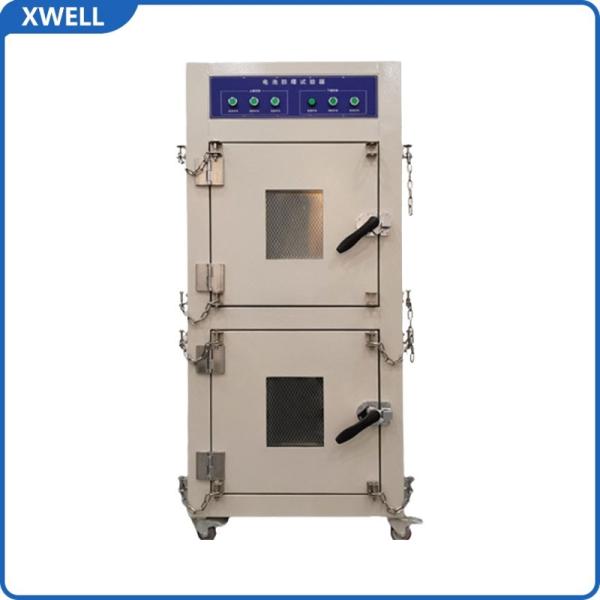

High Altitude And Low Pressure Simulation Test Chamber For Battery
High Altitude And Low Pressure Simulation Test Chamber For Battery
Specifications
Brand Name :
XWELL
Model Number :
XE-6003
Certification :
CE
Place of Origin :
china
MOQ :
one pcs
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
100 pcs a month
Delivery Time :
7-15days
Packaging Details :
wooden case
Impulse voltage :
AC 1kv/1.2-50μs(maximum value)1min
Cabinet material :
Cold rolled plate baking varnish
Power :
3.0KW
Price :
1000-100000USD/Negotiable
Description

High Altitude and Low Pressure Simulation Test Chamber for Battery

I. Product Overview:

This test chamber is designed according to UL, EN, IEC, and other standard testing requirements. It can rapidly achieve the low-pressure storage state of the sample and automatically control the test cycle. The pressure changes within the chamber are monitored throughout the test, and the test is automatically terminated once the set parameters are met. The chamber simulates the storage conditions for batteries and battery packs at a pressure of 11.6 kPa or lower and an ambient temperature of (20±5)℃ for 6 hours. A battery is considered qualified if there is no leakage, no gas emission, no disintegration, no rupture, and no fire, and the open-circuit voltage of each tested battery or battery pack after the test is not less than 90% of its voltage before the simulation test.

II. Compliance Standards:

GB/T 18287, UL 2054, UN 38.3, UL 1642, IEC 61960, IEC 62133, and other relevant testing standards.

Specification

Impulse voltage AC 1kv/1.2-50μs(maximum value)1min
DC response time ≤5μs
Voltmeter Measuring voltage: 0-100V;
Display accuracy: F.S ± 0.5% RDG ± 1digit;
Maximum short circuit current 1000A or 2000A selectable
Ammeter Measuring current: 0-1000A/2000A;
Display accuracy: F.S ± 0.5% RDG ± 1digit;
temperature range RT+10℃ ~ +130℃(adjustable)
Temperature fluctuation
0.5℃
Power Supply AC 220V10% 50HZ
