Specifications
Brand Name :
Elite Battery
Model Number :
48V 100Ah
Certification :
CE, UL, MSDS, UN38.3, MSDS
Place of Origin :
Guangdong, China
MOQ :
1 PCS
Price :
$199.99-$1199.99/PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
10000 PCS/Month
Delivery Time :
30 Days
Packaging Details :
Carton box with pallet
Capacity :
48V 100Ah
Nominal Voltage Voltage :
51.2V
Rated Capacity :
100Ah
Energy :
5376Wh
Application :
ESS, Solar System
Cycle Span :
3000-5000 Cycles
Compact Desiged :
with Built-in BMS
Self-diacharge Rate :
<3%
Communication :
CAN, RS232, RS485
OEM/ODM :
Available
Description

Off On Grid 5kwh Household LiFePO4 Powerwall 48V 100ah Battery

Off/on Grid 5kwh Household Powerwall 48V 100ah LiFePO4 Battery

Product Description

Feature
1. Low self-discharge rate: < 3% monthly.

2. High retention rate: With a DOD of more than 80% after 2000 cycles.

3. Excellent performance at high temperature.

4. With built-in BMS to protect the battery from over-charge/discharge, over/under temperature and short circuit and so on.

5. No memory effect, high efficient, charge anytime.

Nominal Voltage 51.2V
Nominal Capacity 100Ah
Energy 5120Wh
Internal Resistance ≤10mΩ
Cycle Life >3000 cycles@1C 100% DOD
Months Self Discharge <3%
Efficiency of Charge 100%@0.5C
Efficiency of Discharge 96-99% @1C
Charge Cut-off Voltage 58.4±0.2V
Charge Mode 0.2C to 58.4V, then 58.4V charge current to 0.02C(CC/CV)
Recommend Charge Current 20A
Max. Charge Current 100A
Max. Continuous Discharge Current 100A
Max. Pulse Current 200A(10S)
Discharge Cut-off Voltage 40V
Charge Temperature 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity
Discharge Temperature -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity
Storage Temperature 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity
Water Dust Resistance IP67
Cell&Method 16S
Package Metal Case
Dimensions(in./mm.) 780*634*114mm
Weight(lbs./kg.) 68kg

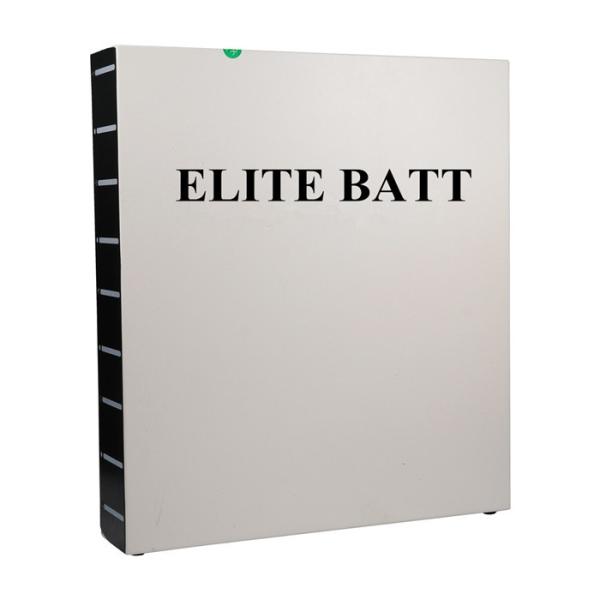

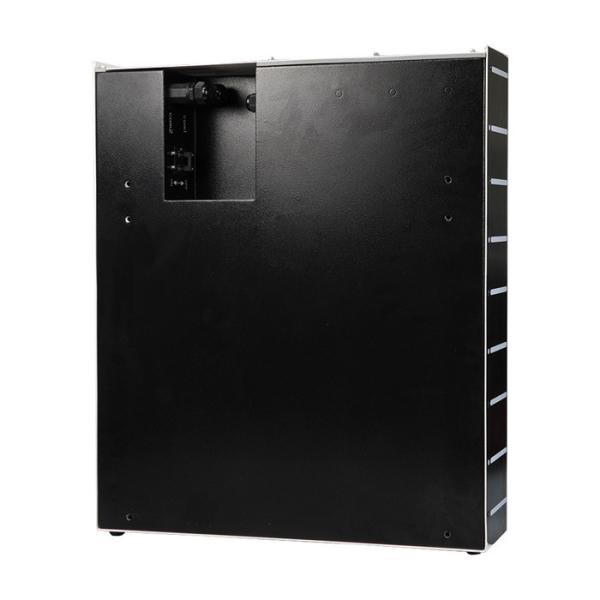

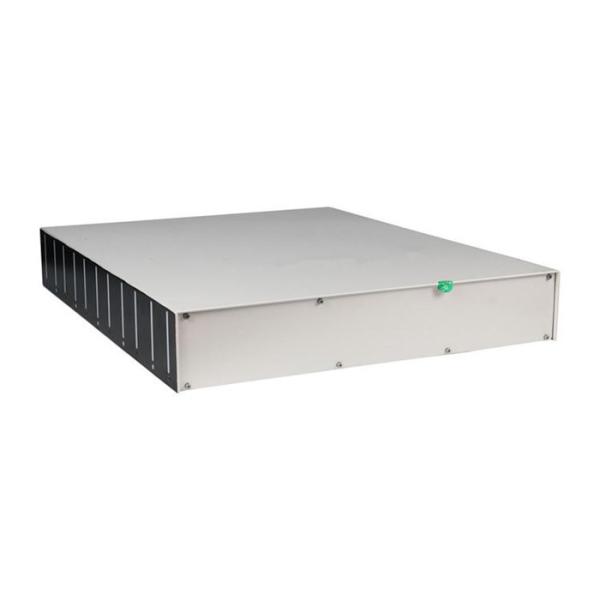

Product Images

5kwh Household 48V LiFePO4 Powerwall Off On Grid 100ah Battery

Product Advantages

1. Professional technical team: Elite’s R&D technical team has received more than 20 inventions and application patents.

2. Unique pack technique: Elite possesses special pack technique to batter protect the battery cell and increase the life span of the battery pack.

3. Safety certification guarantee: Most batteries have been certificated according to international standard including CE, MSDS, UN38.3, UL etc..

4. Professional sales team: Elite possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.

5. Punctual delivery: Elite has strict production plan to promise punctual delivery of the goods.

6. Perfect after-sales service: Elite has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.

Packaging & Shipping

Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.

Shipping: By air, by sea, by express, railway transportation and so on.

Q&A

1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process to ensure the stability and consistency of the products. We have a team of professional workers who are engaged in quality management during every process. Besides, all of our products have 3-5 years warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
