Specifications
Brand Name :
DONGFENG
Model Number :
EQ1060TJ20D3
Certification :
CCC
Place of Origin :
China
MOQ :
1units
Price :
USD15000~25000/unit
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000units/month
Delivery Time :
depends on order quantity
Packaging Details :
naked, with wax; shipped by container, ro-ro ship, train or long vehicle
Overall Size :
5820x1940x2080mm
Driving form :
4*2driving
Curb weight :
3740kg
Rated loading :
5000kg
Wheel Base :
3300mm
Frong& Rear Track :
1506/1466mm
Maximum speed :
90km/h
Fuel Type :
Diesel Engine
Engine Type :
CY4100Q
Max. Power :
82hp
Maximum Torque :
230N.m
Displacement :
3.7L
Emission Level :
Euro 5
Cab type :
Single row cab, 2passengers
Tyres size :
7.00R16 steel tire
Description

4T Loading Light Refrigerator Truck, Diesel Freezer Refrigerated Truck

Product Detailed Specification:

Vehicle parameters-- 4T Loading
Overall dimensions 5820x1940x2080mm Curb weight 3740kg
Van Dimentsion 4000X1900X1900mm Loading capacity 5000kg
Chassis parameters
Chassis model EQ1060TJ20D3 Chassis brand DONGFENG
Overall dimensions 5820x1940x2080mm Wheel base 3300mm
Front/rear wheel track 1506/1466mm Front/rear suspension 1032/1488mm
Approach/departure angle 19/15° Maximum speed 90km/h
Chassis Manufacturer Dongfeng Automobile Co.,Ltd
Cab Configuration Single row cab,allowable 3 passengers,Air Conditioner
Color White,other color is optional
Engine Model CY4100Q
Emission Euro 3
Type in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power 82hp,rated power speed 3200rpm
Displacement 3707ml
Max.torque 230N.m
Manufacturer Dongfeng Chaoyang Diesel Power Co. Ltd.
Tire Size 7.00R16 steel tire
Number 6+1 nos

Refrigerator Truck Description:

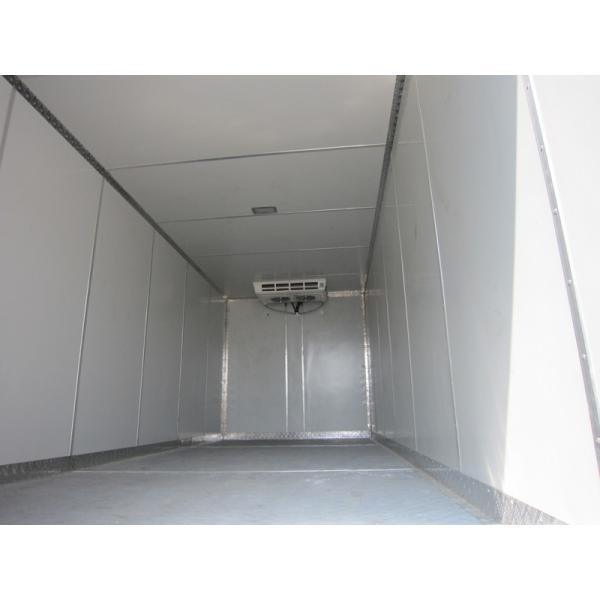

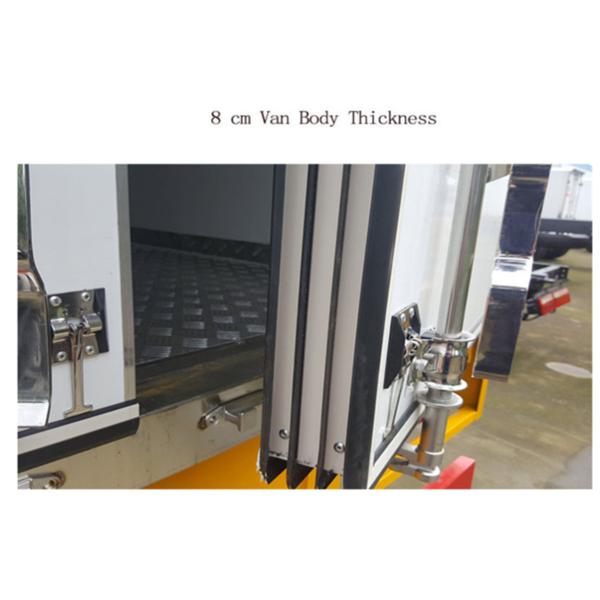

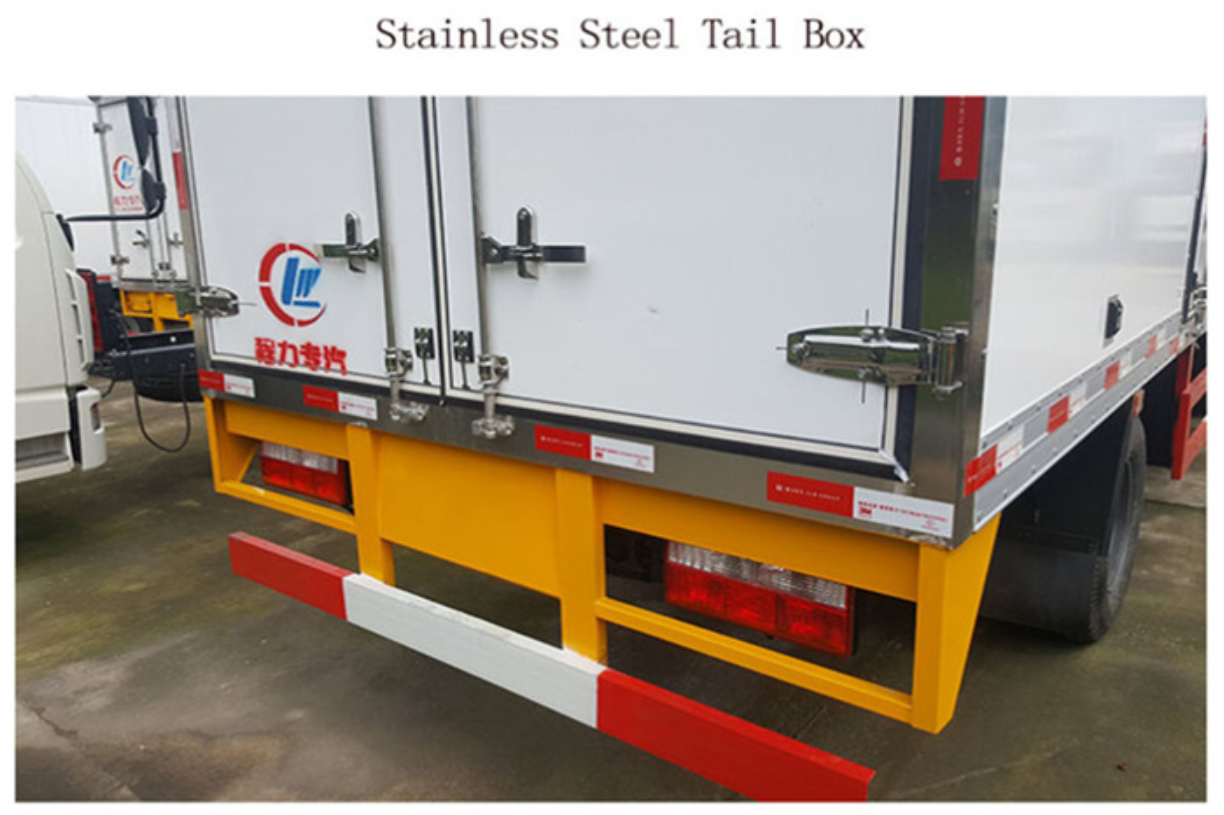

- The interior and exterior fabrics of the cabin are made of * * new nano fiberglass (non light absorbing, good insulation, strong hardness, and oxidation resistance), with a thickness of 8cm. The inner frame of the cabin is made of high-quality light steel profiles treated with rust prevention, and the insulation material is filled with polyurethane foam without gaps. The bottom of the cabin is made of aluminum alloy patterned plate or flat nano fiberglass. The cabin is made of galvanized stainless steel with corners, thickened aluminum alloy with edges, and the rear door frame is made of stainless steel, Thickened stainless steel rear door hinge and lock components, with LED lighting and side marker lights inside the cabin

Products HD pictures:

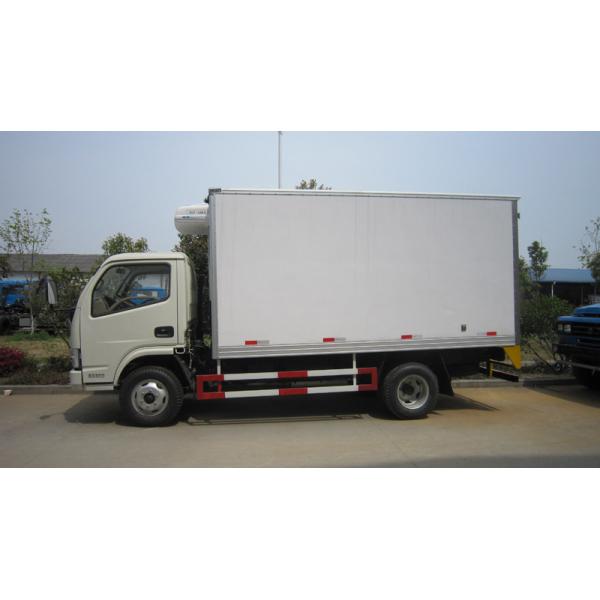

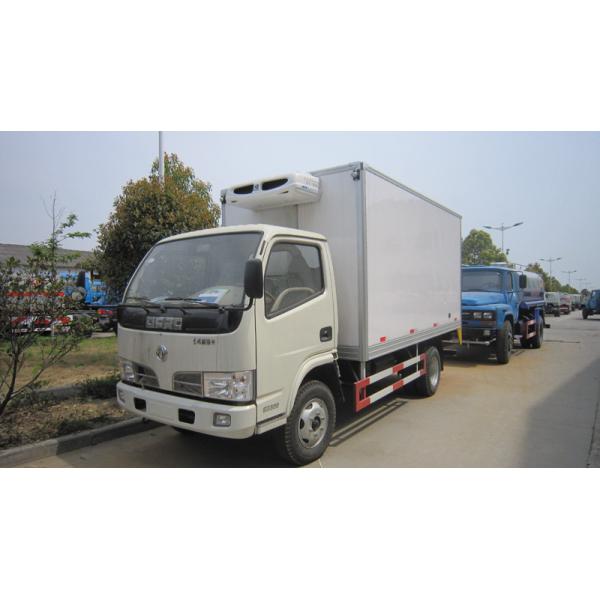

4T Freezer Lorry Box Truck Diesel Engine Euro 5 Standard4T Freezer Lorry Box Truck Diesel Engine Euro 5 Standard4T Freezer Lorry Box Truck Diesel Engine Euro 5 Standard

4T Freezer Lorry Box Truck Diesel Engine Euro 5 Standard

4T Freezer Lorry Box Truck Diesel Engine Euro 5 Standard

4T Freezer Lorry Box Truck Diesel Engine Euro 5 Standard

Packing and Shipping:

FQA:

Q:How about the delivery time?

A: Most of our trucks are made to new order, so the delivery time is usually 20~45days.

Q:How about shipping ?

A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,

Pls contact us to get a shipping quotation .

Q: How many trucks does your factory produce per years?

A: Almost 3000 units one month.

Q: How about your product After-sales service system?

A: Our main export country have accepted after-sales service,some of country used the third department service.

Q: Do you accept Custom orders? What's is your MOQ order?

A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.

Q:Which country do you have exported to?

A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
