Specifications
Brand Name :
DONG FENG
Model Number :
SYQE5185ZYSD6
Certification :
CCC
Place of Origin :
hubei, China
MOQ :
1unit
Price :
USD15000~20000/unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000units/month
Delivery Time :
25days
Packaging Details :
Naked
Overall Dimension: :
6443×2050×2650mm
Driving Form :
4X2 driving
Total Weight :
7360kg
Curb Weight :
5400kg
Wheel Base :
4200mm
Cargo Box Volume :
6cbm
Front Tread :
1525mm
Rear Tread :
1498mm
Chassis Model :
EQ1075SJ3CDF
Engine Type :
Diesel Engine
Emission Level :
Euro V
Max Speed :
110km/h
Engine House Power :
127hp
Description

Garbage Collection Truck Transfer 6m3 loading Vehicle Garbage Compactor Truck

DONGFENG Trucks Features


Always driver-focused, the dashboard is curved for better ergonomics and the control instruments are made to be easy

to read and reach. The steel structure is reinforced to prevent the cab from being damaged by unexpected debris fall.

To provide the driver and passengers a stronger security, we made sure to meet the European collision standards, the most

demanding in the world.

Garbage Collection Truck detailed specifications


Vehicle parameters
Vehicle Model SYQE5185ZYSD6 Vehicle Type Gabage Compact Truck
Overall dimensions(mm) 6443×2050×2650mm Curb weight 5300kg
Total Veight 7360kg Rated Capacity 1930kg
F/R overhang 1055/800mm Gabage Volume 6cubic
Chassis parameters
Chassis model EQ1075SJ3CDF Chassis brand DFAC
Front Wheel Track 1525mm Wheel base 2700mm
Rear wheel track 1498mm Axle Number 2 axles
Approach/departure angle 27.7°/15° Maximum speed 110km/h
Cab Configuration Single row cab,2~3 passengers allowed, air conditioner.
Color White, or as request
Engine Model D20TCIF1
Emission Euro V
Type Diesel Type, in-line 4cylinders
Rated power 93kWkw/127hp, rated power speed 3200rpm
Displacement 2.2L
Max.torque 350N.m
Tire Size 7.00R16
Number 6pcs

Product Features:


-The vehicle can be equipped with a rear sealing cover device. ABS model/manufacturer: ABS/ASR-12V-4S/4M/Xiangyang Dongfeng Longcheng Machinery Co., Ltd. The corresponding relationship of engine/fuel consumption value L/100km: D20TCIF1/16.2, YCY24140-60/16.2, CA4DB1-11E6/16.2, ZD30D16-6N/16.2, CY4BK461/16.2, CY4BK161/16.2. Optional front mask, front bumper and front combination lamp. Optional left and right fuel tank position

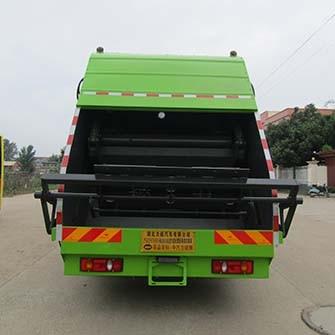

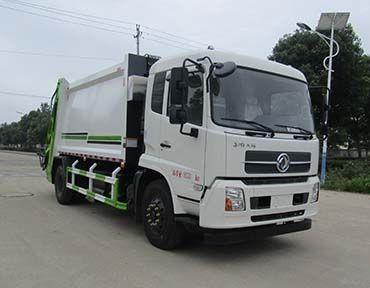

Products HD Picture


6CBM Garbage Disposal Truck Waste Compactor Dong Feng

6CBM Garbage Disposal Truck Waste Compactor Dong Feng


FAQ


Q:How about the delivery time?

A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed

Q:How about shipping ?

A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,

Pls contact us to get a shipping quotation .

Q: How many trucks does your factory produce per years?

A: Almost 3000 units

Q: How about your product After-sales service system?

A: Our main export country have accepted after-sales service,some of country used the third department service.

Q: Do you accept Custom orders? What's is your MOQ order?

A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.

Q:Which country do you have exported to?

A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.

Q: Can I Customize vehicles?
A:We could also customize the vehicles according to the demand of the end markets, technical and equipment modification as per demand.
