Specifications
Brand Name :
KaiYun
Model Number :
Kai Passenger,4KW
Certification :
L7E, EEC, LSV
Place of Origin :
CHINA
MOQ :
3units
Price :
USD3500~7000
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
150000units/year
Delivery Time :
20days
Packaging Details :
naked and protected with films
Overall Size :
3655×1340×1560mm
Wheel base :
2495mm
Cabin Type :
double row, 4seats
Curb weight :
775kg
Payload :
150kg
Max. speed :
40-45km/h
Driving mileage :
120KM
Min. Ground Clearance :
>150mm
Motor Type :
AC Motor
Rated Power :
4KW
Battery type :
Lead Acid AGM
Battery Voltage :
72V / 100Ah
Charging time :
8-10h
Max. Grade :
20%
Approach Angle :
>55
Departure Angle :
>35
Description

EC Certificated Electric Pickup Truck/ Light Loading Electric Truck, 2WD with 4KW Rated Motor

Product Detailed Specification:

Model PASSENGER,4kW
BASIC SPECS
VEHICLE DIMENSIONS
Height (mm) 1,560
Width (mm) 1,340
Length (mm) 3,655
Wheelbase (mm) 2,495
BED DIMENSIONS
Height (mm) 900
Width (mm) 1,315
Length (mm) 400
Vehicle Gross Weight (kg) 775
Payload (kg/lb) 150
Towing Capacity (kg/lb) 1,000 / 2204.62
Passengers 4
PERFORMANCE
Top Speed (km/h) 40 (~45)
Maximum Grade Ability (%) 20%
Min.Turning Radius (m ) ≤9m
Min.Ground Clearance (mm) ≥150mm
Approach Angle(°) ≥55°
Departure Angle(°) ≥35°
BATTERY & MOTOR
Battery Voltage/ Current 72V / 100Ah
Battery Type Lead Acid AGM
Charging Time(h) 8~10h
Maximum Driving Mileage (km) 120
Motor Type AC motor
Rated Power 4000W
Motor Controller CAN
BODY STRUCTURE
Cabin Body Stamped Sheet Metal
Double Row
CHASSIS & WHEELS
Drive Type Rear Wheel Drive
Front Suspension Double Wishbone Independent Suspension
Rear Suspension Leaf Plate Suspension (5 pieces)
Drive Axle Integrated (Speed ratio12.76)
Brake (front/rear) Discs / Drums
Wheel Hub 13x4.5B (Alloy 4X114.3)
Tire Specification 13x4.5B (Alloy 4X114.3)
Steering Type Rack & Pinion
Steering Assist
Brake Assist

Products Features:

- At the beginning of the development of pickman, we returned to the fundamental demand of people for transportation tools

- to load more things and go farther. To achieve this goal, we redefined pickman's product design ideas.

- Revolutionary materials, from "zero" to "whole".

- Gold ratio, love at first sight
- Under the fine and reasonable structure, the body shape of pickman has reached the golden ratio, and the overall posture is

stable and dynamic.

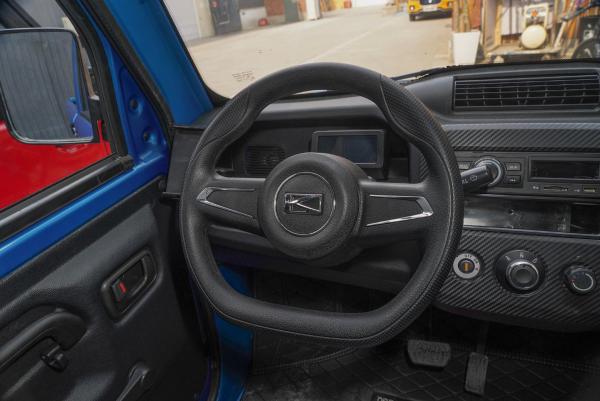

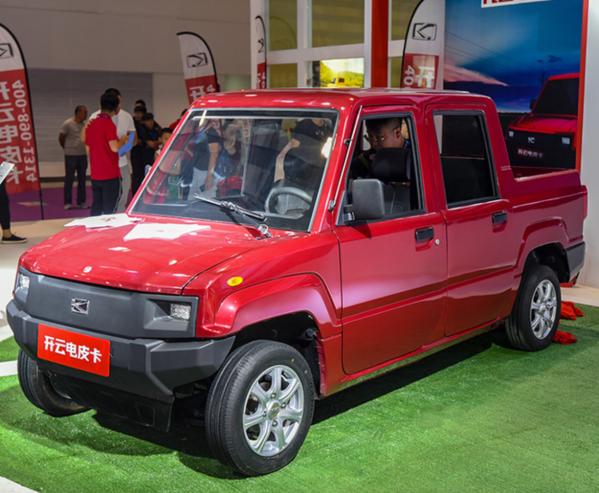

Products HD pictures:

EC Certificated Mini EV Bus Electric Truck 2WD Pickup TruckEC Certificated Mini EV Bus Electric Truck 2WD Pickup TruckEC Certificated Mini EV Bus Electric Truck 2WD Pickup Truck

EC Certificated Mini EV Bus Electric Truck 2WD Pickup TruckEC Certificated Mini EV Bus Electric Truck 2WD Pickup Truck

Reference Vedio:

Customers View:

Company Profile:

Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.

From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.

We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.

Packing and Shipping:

FAQ:

Q: How many trucks does your factory produce per years?

A: Almost 15000 units

Q:How about the warranty?

A:One year for motor and battery.

Q:How about the delivery time?

A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed

Q:How about shipping ?

A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,

Pls contact us to get a shipping quotation .

Q: How about your product After-sales service system?

A: Our main export country have accepted after-sales service,some of country used the third department service.

Q: Do you accept Custom orders? What's is your MOQ order?

A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.

Q:Which country do you have exported to?

A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.

Q. Is it OK to print my logo on ?
A: Yes. Please tell to us about quantity.
