Specifications
Brand Name :
KaiYun
Model Number :
XR(4x4)
Certification :
L7E, EEC, LSV
Place of Origin :
CHINA
MOQ :
3units
Price :
USD4500~8000
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
150000units/year
Delivery Time :
20days
Packaging Details :
naked and protected with films
Overall Size :
3600×1520×1820mm
Inner Container Size :
1620X1245X300mm
Wheel base :
2315mm
Cabin Type :
Closed, 2rows
Curb weight :
800kg
Payload :
300kg
Max. speed :
80-85km/h
Driving Range :
150KM(Unload)
Min. Ground Clearance :
>200mm
Motor Type :
AC asynchronous motor
Rated Power :
10.5KW
Battery type :
Lithium iron phosphate battery
Battery Voltage :
76.8V/206Ah
Charging time :
5-8h
Max. Grade Ability :
35%
Approach Angle :
>55
Departure Angle :
>35
Description

FWD Electric Pickup Truck/ EV Electric Truck, Enclosed Cabin big power motor for Patroling

Product Detailed Specification:

Model XR (4X4) KK1121D10
Basic Parameters
L*W*H(mm) 3600×1520×1820
Inner dimension of container 1620X1245X300
Wheelbase (mm) 2315
Front track width (mm) 1315
Rear track width (mm) 1315
Front suspension (mm) 455
Rear suspension (mm) 705
Curb weight (kg) 800
Cargo weight (kg) 300
Seats 2
Total mass(kg) 1230
Performance parameter
Max speed(km/h) 80(Instrument display 85)
Acceleration time s (0-40km) 20
Maximum climbing gradient 35%
Minimum turning diameter (m) ≤9
Maximum angle 36.3(Outer wheel)/42(Inner wheel)
Approach angle (°) ≥55
Departure angle (°) ≥35
Minimum ground clearance (mm, no load) ≥200
Body structure
Cab upper body Sheet Metal
Steel pipe door
Cargo box Cargo box is opend from rear
Battery / motor parameters
Power Battery Specification (V / ah) 76.8V , 206Ah
Driving range (no load) (km) 150
Battery type Lithium iron phosphate battery
Charger 110 ~ 220V vehicle mounted charger (wide voltage)
Charging time (h) 5~8
Power consumption per 100 km (KWH) 6.5
Motor type AC asynchronous motor
Motor controller Dual motor controller
Rated power (kw) 10.5KW(front 3kw,rear 7.5kw)
Chassis / wheel brake
Driving form Rear drive / 4WD
Front suspension Double wishbone spiral spring independent suspension
Rear suspension Longitudinal leaf spring(3 piece)
Drive axle Front axle 6.77/1 Rear axle (7.99/1)
Front brake Disc
Rear brake Drum
Wheel 15 inch steel rim
Aluminum rim
Tire size 195/65 R15(Ordinary pattern)
Off -road tire size 195/65 R15(Off road tread pattern)
Steering structure Rack and pinion
Power steering
Brake assist

Products Features:

- At the beginning of the development of pickman, we returned to the fundamental demand of people for transportation tools

- to load more things and go farther. To achieve this goal, we redefined pickman's product design ideas.

- Revolutionary materials, from "zero" to "whole".

- Gold ratio, love at first sight
- Under the fine and reasonable structure, the body shape of pickman has reached the golden ratio, and the overall posture is

stable and dynamic.

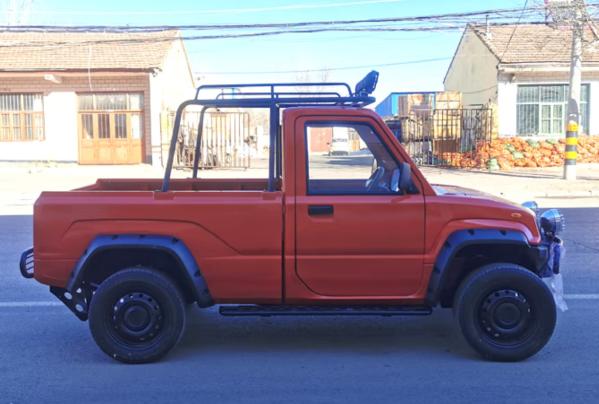

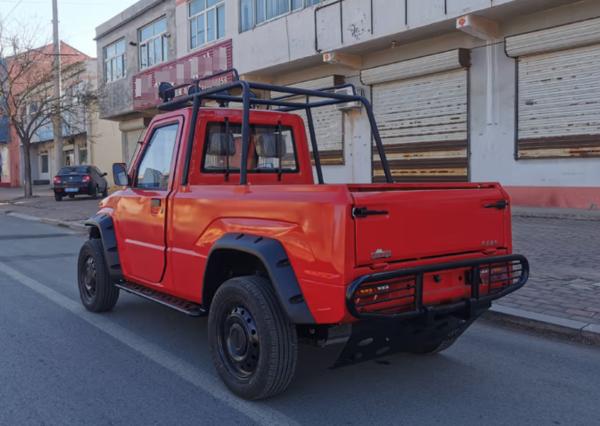

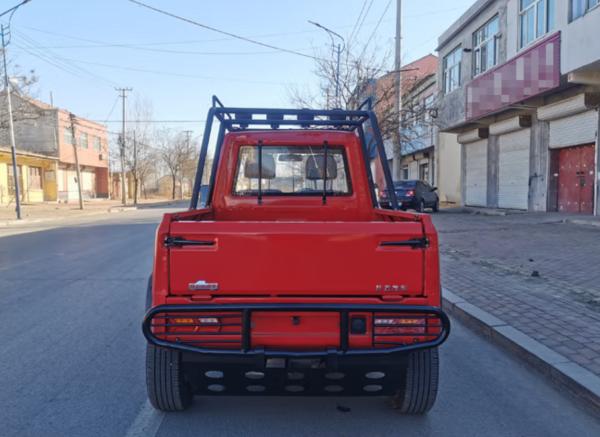

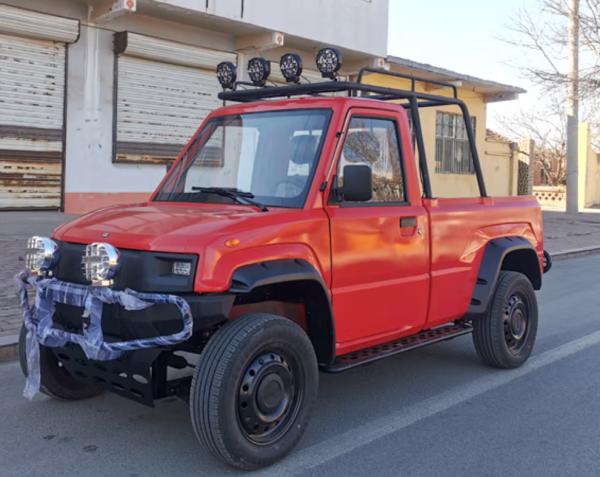

Products HD pictures:

FWD Fully Electric 2WD Pickup Truck For Patroling

FWD Fully Electric 2WD Pickup Truck For Patroling

FWD Fully Electric 2WD Pickup Truck For Patroling

Details Pictures:

FWD Fully Electric 2WD Pickup Truck For PatrolingFWD Fully Electric 2WD Pickup Truck For PatrolingFWD Fully Electric 2WD Pickup Truck For Patroling

Reference Vedio:

Customers View:

Company Profile:

Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.

From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.

We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.

Packing and Shipping:

FAQ:

Q: How many trucks does your factory produce per years?

A: Almost 15000 units

Q:How about the warranty?

A:One year for motor and battery.

Q:How about the delivery time?

A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed

Q:How about shipping ?

A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,

Pls contact us to get a shipping quotation .

Q: How about your product After-sales service system?

A: Our main export country have accepted after-sales service,some of country used the third department service.

Q: Do you accept Custom orders? What's is your MOQ order?

A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.

Q:Which country do you have exported to?

A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.

Q. Is it OK to print my logo on ?
A: Yes. Please tell to us about quantity.
