Full Automatic Hot Dipped Broiler Chicken Cage H Type
Full Automatic Hot Dipped Broiler Chicken Cage H Type
Full Automatic Hot Dipped Broiler Chicken Cage H Type
Full Automatic Hot Dipped Broiler Chicken Cage H Type
Specifications
Brand Name :
Silver star
Model Number :
H3L102/H4L136
Certification :
ISO9001,SGS
Place of Origin :
China
MOQ :
50 sets
Price :
108-135$/ set
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sets/week
Delivery Time :
10-20 days
Packaging Details :
FCL: Standard exporting packaging type; LCL: In wooden cage packaging
Product name :
broiler chicken cage
Color :
Silver
Material :
Hot galvanized steel wire mesh
Size :
85*62.5*50 cm
Capacity :
17 chicks/cell
Lifespan :
More than 20 years
Model :
H type broiler chicken cage
Automatic :
Yes
Use :
Chicken farm
Keywords :
Broiler chicken cage
Description

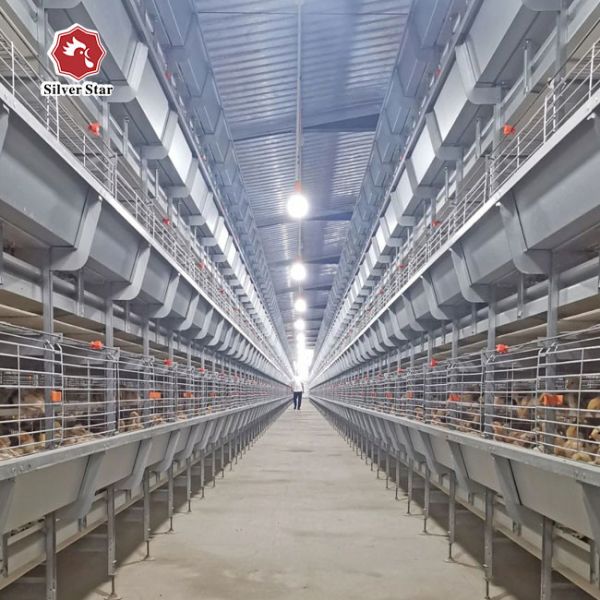

Full Automatic H Type Hot Dipped Broiler Chicken Cage

Exhibition:

We attend exhibitions in Africa and Southeast Asia every year

And we have offices and agents in Indonesia, Zambia, Nigeria, Kenya, Uganda, South Africa and Bangladesh.

Full automatic system of battery chicken cage:

1:H type battery pullet/broiler cage
2:3tiers, 4tiers,5 tiers, 6tiers, 8tiers
3:Q235 double hot galvanized anti-corrosion
4:Q235 national standard double hot galvanized bridge steel cage,hot galvanized steel feed trough,ball type automatic water equipment ,white PVC pipe ,3MM U type galvanized steel shelves,closed-end pressure-reducer;Al-Zn material feeding system,AL-Zn material manure cleaning system,ventilation system,lighting system,environment controlling system and so on.


Accessories of broiler chicken cage :
1). The new white PVC material trough, compression, heat, deformation, not broken. Life span 15 years more. 100kg load-bearing.
2). 3MM U-type galvanized steel frame leg: National standard 3MM thick steel plate, U shape design.
350kg load-bearing. With double-DIP galvanizing, life span 15 years more.
3). Automatic water nipple drinker: 360-degree rotating design, ball type or spring type. Stainless steel and plastic.
4). White PVC water pipe: New PVC material, deformation, high temperature, difficult to damage. Impurities in the water will not produce a chemical reaction, thus ensuring the chickens can drink clean and healthy water. Useful life of 15 years more.
5). Regulator: Fully enclosed design, voltage regulator and with filter.

Broiler chicken cage specification :

Tier
Cell size
Whole size
Capacity/set
Average area/bird
3-tiers
85*62.5*50 cm
85*220*260 cm
102 birds(1.5 kgs)
312.5 cm2
4-tiers
85*62.5*50 cm
85*220*325 cm
136 birds(1.5 kgs)
312.5 cm2
5-tiers
85*62.5*50 cm
85*220*390 cm
170 birds(1.5 kgs)
312.5 cm2
6-tiers
85*62.5*50 cm
85*220*455 cm
204 birds(1.5 kgs)
312.5 cm2
8-tiers
85*62.5*50 cm
85*220*585 cm
272 birds(1.5 kgs)
312.5 cm2

Full Automatic Hot Dipped Broiler Chicken Cage H TypeFull Automatic Hot Dipped Broiler Chicken Cage H TypeFull Automatic Hot Dipped Broiler Chicken Cage H Type
