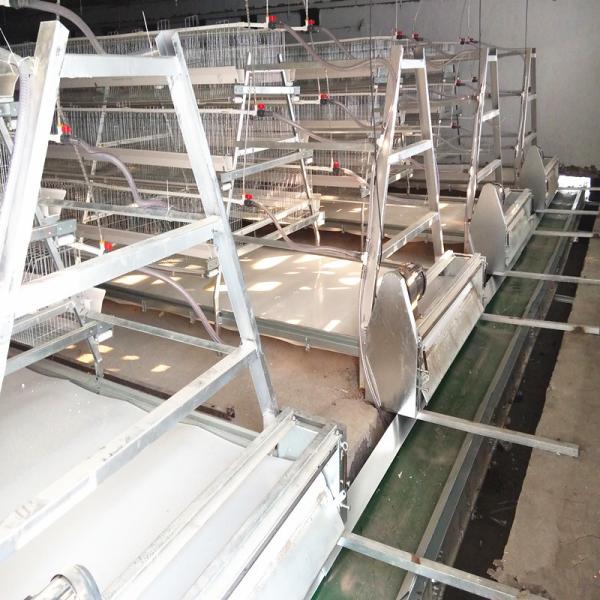

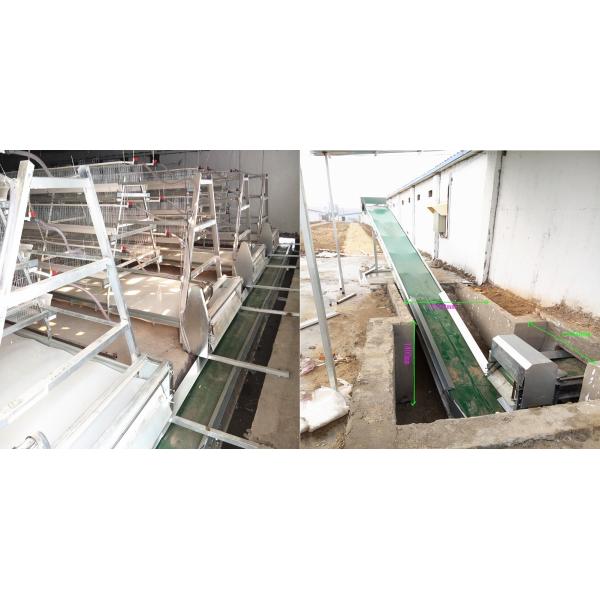

10-12m/Min Belt Poultry Manure Removal System Noiseless For Chicken Farm
10-12m/Min Belt Poultry Manure Removal System Noiseless For Chicken Farm
10-12m/Min Belt Poultry Manure Removal System Noiseless For Chicken Farm
10-12m/Min Belt Poultry Manure Removal System Noiseless For Chicken Farm
Specifications
Brand Name :
Silver Star
Model Number :
YXPM5
Certification :
ISO9001:2015, SGS
Place of Origin :
China
MOQ :
1 Set
Price :
1000-2000USD/Set
Payment Terms :
T/T, Western Union, D/A, D/P, L/C
Supply Ability :
50000sets/month
Delivery Time :
7-15 working days after advanced payment
Packaging Details :
Standard Exporting Packaging Or As Customers' Request
Keywords :
Chicken Farm Poultry Belt Manure Removal Cleaning Machine
Methods of Cleaning :
belt manure remover way
Manure Cleaner Machine :
Hot Dipped Galvanized Or Zinc-Aluminum
Feature :
Noiseless running, high working efficiency
Driving Motor :
1.5KW
Belt Conveyor Speed :
10-12m/min
Usage :
Suit for H and A frame battery chicken cage
Blet Material :
White PP, 1.2mm thickness
Local Service :
Indonesia, Philippines, Thailand, Ecuador, Algeria, Ghana, Kenya, Nigeria, Panama
HS Code :
84362900
Description

Chicken Farm Poultry Belt Manure Removal Cleaning Machine , Noiseless

Chicken Farm Poultry Belt Manure Removal Cleaning Machine Introduction

Chicken farm poultry belt manure removal cleaning machine is noiseless during the period of working. The belt type manure cleaner adopts the national standard cycloid pinwheel accelerator to ensure the legitimacy of the input transmission ratio. The direct connection of the motor and the accelerator is small in size and simple in operation.

Poultry Belt Manure Removal Cleaning Machine Characteristics

1. The manure removal belt for manure cleaning machine is a thickened PP material, which has strong corrosion resistance, strong environmental adaptability and long life. Moreover, the wear rate of the belt is very low when clean manure, and it can be used for ten to twenty years, which can carry heavy objects, generally one square can carry the limit of 5000N force.

2. The conveyor belt manure cleaner motor produced by our company uses a cycloid reducer, and the multi-layers can be equipped with a straight gear reducer.

3. High-carbon steel is used for the scraping mouth, and some use high-thickness galvanized steel, which can withstand objects harder than itself without deformation, and the scraper is well-made.

4. High working efficiency, chicken manure can be automatically transfered out timely, avoiding overnight chicken manure infection, preventing the occurrence of infectious diseases, automatic loading, and the height of chicken manure can be automatically adjusted according to the situation.

Belt Manure Removal Cleaning Machine Characteristics

Belt Manure Removal Cleaning Machine Hot-dip galvanized 3mm side board, chain safety door with 1mm hot-dip galvanized steel or zinc-aluminum, running speed 3m/min.Motor:1.5kw
Feces/Litter Cleaning Belt PP manure belt, which has high tensile strength to ensure a long service life.Thickness is 1.2mm. Width:1m,1.2m ,1.25m, 1.4m, 1.5m, 1.75m, 1.8m, 2.1m
Bracket For Waste Cleaning Belt Hot dipped galvanized, 1.5mm thickness
Passive Roller Spiral type cylinder,in the front. Anti deviation system is included.

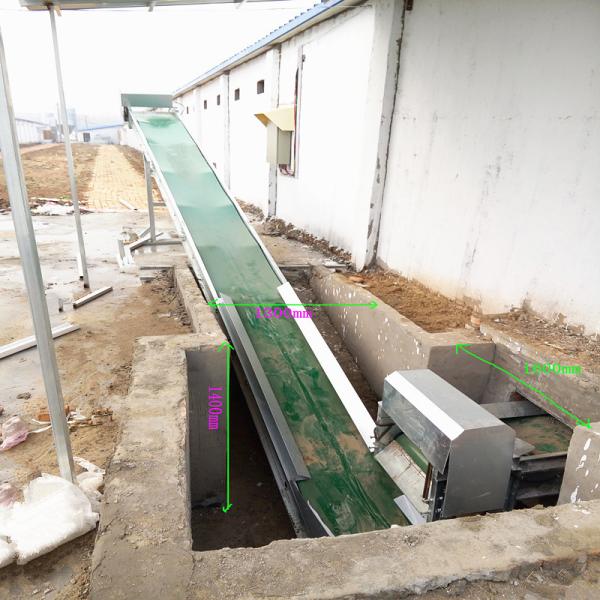

Transverse manure conveying machine Each chicken house is with 1 set, transverse and slope conveying is separate, the material is hot dipped galvanized; Manure belt: green rubber belt with 8mm thickness. Power:3kw, The transverse manure conveying system adopts rubber conveying belt. There is no leak of manure during transportation.
