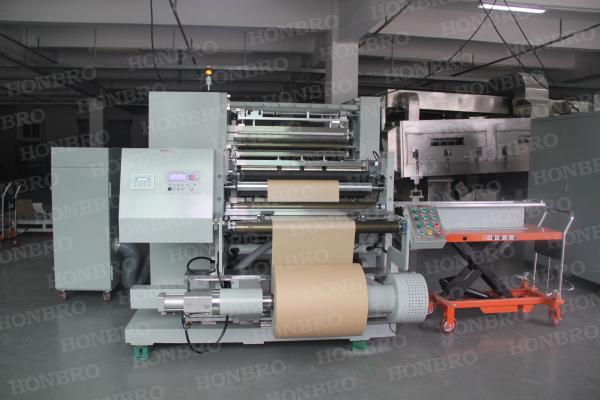

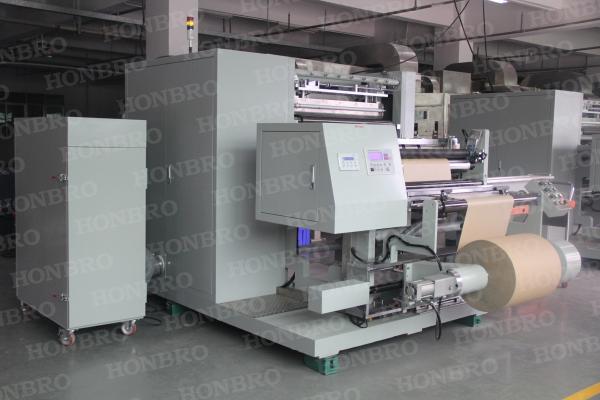

250um Electrode Battery Slitting Machine Continuous Auto Slitter
250um Electrode Battery Slitting Machine Continuous Auto Slitter
250um Electrode Battery Slitting Machine Continuous Auto Slitter
250um Electrode Battery Slitting Machine Continuous Auto Slitter
Specifications
Brand Name :
Honbro
Certification :
CE certification
Place of Origin :
Dongguan, China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
350 sets/year
Delivery Time :
lab machine: 7-8 weeks, Mass production machine: 13-14 weeks
Packaging Details :
Fumigation-free wooden box and vacuum moisture-proof treatment
Slitting electrode sheet material width :
50~250μm
Slitting speed :
1~80m/min
Slitting width :
800mm
Material feeding width :
800mm
Life of slitting blade :
The life of theupperdagger is 60-150 thousand meters for every grinding which its total life is 360-900thousand meters The life of theowe flat blade is 400-600 thousand meters for every grinding which its total life is 1.2-1.8 million meters
Burr :
Plane(horizontal)s0.012mm,Transverse plane(longitudinal)s0.007mm
Description

Continuous Auto Slitter

Functions and features

  • Continuous slitter is an auto device to slit the whole roll of electrode sheets lengthways to required width through material filling,slitting,dust removal material collecting and rolling
  • Unwinding tension control adopts imported automatically close-loop tension control system so as to achieve unwinding under the same pressure
  • Scrap material is pulled independently and automatically.Tension is controlled independently.Scrap materialis absorbed and collected under negative pressure
  • Control system:PLC,servo motor,tension controller and pneumatic components,etc are famous imported products

Technical parameters

Item Common parameter
Slitting electrode sheet material width 60~250μm
Slitting speed 1~90m/min
Slitting width 900mm
Material feeding width 900mm
Life of slitting blade

The life of theupperdagger is 60-160 thousand meters for every grinding which its total life is 360-900thousand meters

The life of theowe flat blade is 400-600 thousand meters for every grinding which its total life is 1.2-2.0million meters
Burr Plane(horizontal)s0.012mm,Transverse plane(longitudinal)s0.007mm
Slitting width precision ±0.05mm
Edge straightness ≤0.05mm/m
Unwinding correction precision ±0.1mm
Unwinding correction journey ±75mm
Unwinding tension control 0~200N
Winding uniformity ±0.2mm
Max winding and unwinding roll diameter Unwinding Φ900mm, Winding Φ900mm
Max load-bearing of winding and unwinding shaft Material filling shafts 300kg, Material collecting shafts 160 kg
