Dry Battery Cell Production Electrode Die Cutting Machine Continuous Coating Rolls
Dry Battery Cell Production Electrode Die Cutting Machine Continuous Coating Rolls
Specifications
Brand Name :
Honbro
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability :
350 sets/year
Delivery Time :
13-14 weeks
Packaging Details :
Fumigation-free wooden box + vacuum moisture-proof treatment
Certification :
CE certification
Electrode shape accuracy :
±0.2mm
Tab to electrode coating side edge accuracy :
±0.4mm
Tab powder accuracy :
±0.4mm
Action :
95%
Description

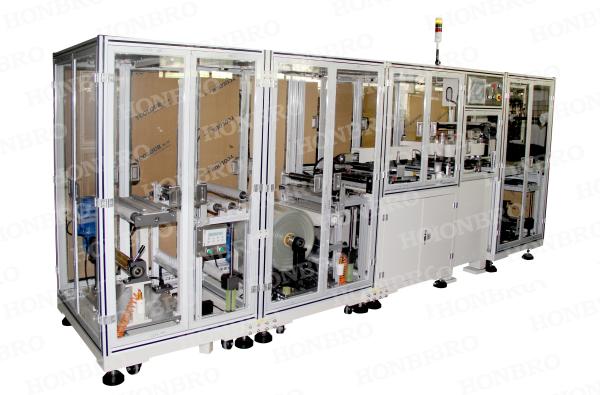

Electrode Die Cutting Machine With Continuous Coating Rolls

Function Description

  • The equipment is mainly used for cutting and forming the continuous coating rolls of lithium ion batteries into anode & cathode electrode sheets.
  • Optional configuration: CCD visual material with defect detection, defective product labeling detection, FFU clean air dust removal system, non-contact dust removal

Technical Parameters

Item Common parameter
Output ≥40PPM
Min cutting forming size L 60 (include tab) x W 50mm
Burr Horizontal, vertical ≤ 0.015mm
Electrode shape accuracy ±0.2mm
Tab to electrode coating side edge accuracy ±0.4mm
Tab powder accuracy ±0.4mm
Cutting Die life Anode Die once life ≥ 1.2 million times, can be repaired 10 times, total life ≥ 12 million times
Cathode Die once life ≥ 0.8 million times, can be repaired 10 times, total life ≥8 million times
EMS function It can dock with MES system
Action 95%
Qualification rate 98%
