Lab Electrode Coating Machine One Layer Transfer Coater Width Max 680mm
Lab Electrode Coating Machine One Layer Transfer Coater Width Max 680mm
Lab Electrode Coating Machine One Layer Transfer Coater Width Max 680mm
Lab Electrode Coating Machine One Layer Transfer Coater Width Max 680mm
Specifications
Brand Name :
Honbro
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability :
350 sets/year
Delivery Time :
13-14 weeks
Packaging Details :
Fumigation-free wooden box + vacuum moisture-proof treatment
Certification :
CE certification
Coating thickness error :
≤±2um
Min uncovered gap :
6mm
Front & back overlap error :
≤±0.5mm
Coating length error :
≤±0.5mm
Uniformity of winding edge :
≤±0.5mm
Unwinding and rewinding roll diameter :
Max. 600mm
Description

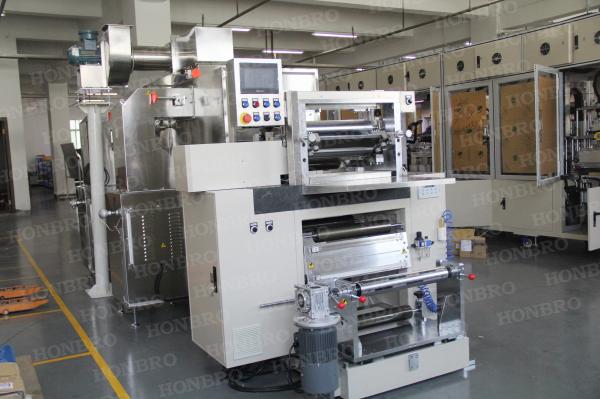

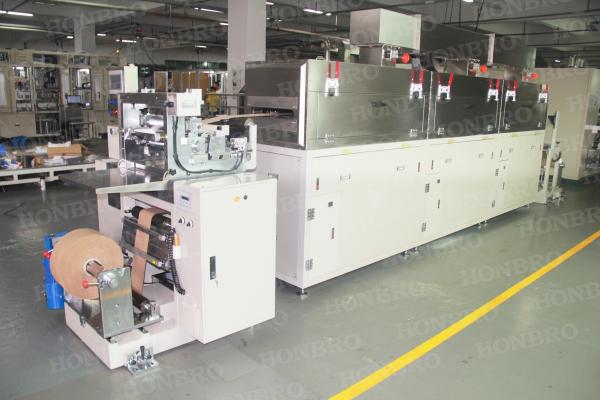

One-Layer Transfer Coater , Coating Width Max.680mm

Functions and features

  • The device is designed to evenly coat slurry on the surface of the film according to preset thickness and length. The coated film orderly rewinds to the winding air expansion shaft after drying in the drying box, correction and tension control.
  • The foundation of the coating head.
  • Gap mode: backup roll driven by a servo motor
  • Tool setting way: imported displacement sensor is adopted. It is driven by a servo motor. An auto loop-closed adjustment is realized.
  • Scraping knife gap: the straightness of the scraping knife is adjustable.
  • The drying box: electrical heating/steam heating/oil heating are adopted. Hemicycle blowing way from top to bottom is adopted. Blast capacity is in frequency conversion control and damper control.
  • Optional item: NMP solvent concentration detection and alarm are equipped in the drying box. Online thickness detection system is equipped.
  • Control system: PLC, servo motor, tension controller and pneumatic components are all selected from famous foreign products.

Technical Parameters

Item Common parameter
Outlook size L28000mm *W2600mm*H2800mm
Coating width Max.680mm
Machine speed Max.30m/min
Coating speed Max. 20m/min
Area density error ≤±1.6%
Coating thickness error ≤±2um
Min uncovered gap 6mm
Front & back overlap error ≤±0.5mm
Coating length error ≤±0.5mm
Uniformity of winding edge ≤±0.5mm
Unwinding and rewinding roll diameter Max. 600mm
