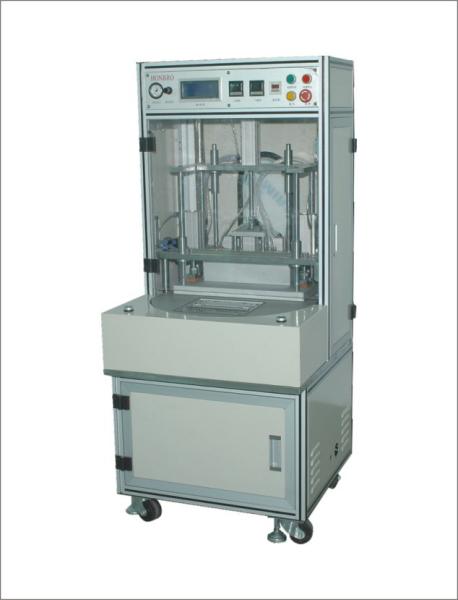

Lab Automated Lab Equipment Double Sided Heating Vacuum Sealing Machine
Lab Automated Lab Equipment Double Sided Heating Vacuum Sealing Machine
Specifications
Brand Name :
Honbro
Model Number :
HBS-DGS280 ( TY/QY ) Type
Certification :
CE certification
Place of Origin :
Dongguan, China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
350 sets/year
Delivery Time :
lab machine: 7-8 weeks, Mass production machine: 13-14 weeks
Packaging Details :
Fumigation-free wooden box and vacuum moisture-proof treatment
Outer Shape size :
900 x 800 x 1650mm(L*W*H)
Whole weight :
about 600Kg
Power :
2.5 KW
The power supply :
AC380V/50HZ
Description

Double-Sided Heating Vacuum Sealing Machine , HBS-DGS280 ( TY/QY ) Type , Lab Equipment & Semi-Auto Equipment

Function Description

It suitables for puncturing, vacuuming and packaging of soft package power battery air bag

Technical Feature

  • Double station rotary plate feeding, loading and unloading and packaging can be carried out at the same time
  • The turntable is closed with the upper cavity and the lower cavity to form a closed sealing cavity, which can meet the requirements of vacuum packaging. The electrolyte separation bucket is configured, the electrolyte removal channel is optimized, and the pollution of vacuum source is reduced
  • Programmable logic controller PLC automatic control, touch screen to realize man-machine dialogue, easy to operate
  • With output statistics function, with manual, automatic operation function, fault alarm function
  • Preset packaging temperature, packaging pressure, packaging time, pumping time, with temperature abnormal alarm function
  • With upper cavity head overhaul cylinder, the upper head part and bayONet are all exposed out of the cavity during overhaul, easy maintenance
  • Feeding table driven by precision CAM roller divider, positioning accuracy <30"
  • Upper and lower head parallelism: +0.01mm; The degree of alignment can be adjusted by adjusting mechanism
  • Pressure can be applied by cylinder or spring on the upper pressure plate of the cell in the cavity

Technical Parameters

Item HBS-DGS280
Outer Shape size 900 x 800 x 1650mm(L*W*H)
Whole weight about 600Kg
Power 2.5 KW
The power supply AC380V/50HZ
Air source ≥0.6MPA 28L/min
Vacuum source ≤ - 0.095MPA 280L/min
Scope of application

L 80MM - 270MM (length of air bag 45-70)

W 80MM -195MM (length of polar ear 25)

T 3.0MM – 15MM
Set backup capacity 2-3ppm ( one out and one package station total time 20S calculation )
Qualification rate ≥99%
