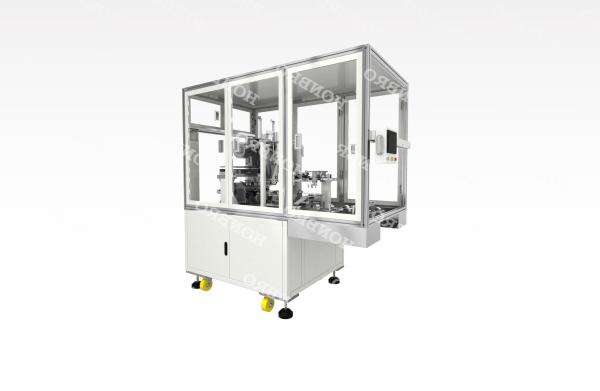

Single Station Semi Automated Lab Equipment U Type Sticking Film Machine
Single Station Semi Automated Lab Equipment U Type Sticking Film Machine
Specifications
Brand Name :
Honbro
Place of Origin :
Dongguan, China
Model Number :
HBDCS200 ( Single Station ) Type
Certification :
CE certification
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
350 sets/year
Delivery Time :
7-8 weeks
Packaging Details :
Fumigation-free wooden box + vacuum moisture-proof treatment
Power source :
AC220V/50HZ
Air source :
≥20.6Mpa,40L/MIN
Qualified rate :
≥99%
Applicable range :
L630XW350(Air bags are included)XT3-15.
Description

U Type Sticking Film Machine , HBDCS200 ( Single Station ) , Lab Equipment & Semi-Auto Equipment

Function Description


The device is designed to stick PP protective film to the surface of flexible packaging battery cells


Technical Feature

  • Servo fixed length puller, auto tensioning dancer
  • Material in and out by a drawstring;step-by-step control of rolling coating
  • Material rolling to a vertical air expansion shaft
  • Controlled by PLC, parameters adjusted by a touch screen

Technical Parameters

Item HBDCS200 (Single station)
Measures 1960 (Drawstring for material in and out included )*1000*2000mm(L*W*H)
Weight About 0.8T
Power 2.5KW
Power source AC220V/50HZ
Air source ≥20.6Mpa,40L/MIN
Vacuum source ≤-0.095MPa,80L/MIN
Applicable range H50-200mm*W60-200mm(Air pocket included, The main body 30-140mm) *T2.5-10mm
Output 10EA/MIN
Qualified rate ≥99%
