300L Min Automated Lab Equipment Vacuum Standing Box 200W
300L Min Automated Lab Equipment Vacuum Standing Box 200W
Specifications
Brand Name :
Honbro
Place of Origin :
Dongguan, China
Certification :
CE certification
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
350 sets/year
Delivery Time :
7-8 weeks
Packaging Details :
Fumigation-free wooden box + vacuum moisture-proof treatment
Model Number :
Lab Type
Weight :
About 0.1T
Power :
200W
Power source :
AC220V/50HZ
Air source :
≥0.6Mpa, 5L/min
Description

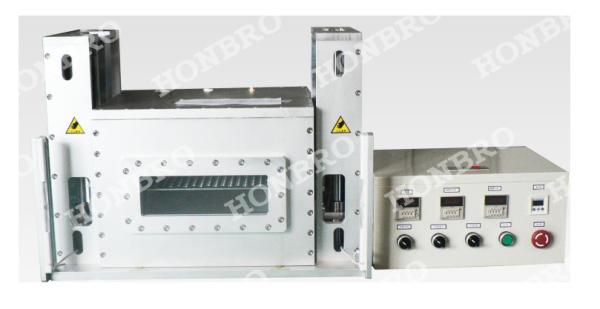

Vacuum Standing Box , Lab Type , Lab Equipment & Semi-Auto Equipment

Function Description

  • This device is designed for the vacuum standing of batteries after electrolyte filling so as to finish the penetration of electrolyte

Technical Feature

  • When the start button pressed, the cavity will close automatically, pump vacuum, maintain pressure, relieve vacuum, and then the cavity will open
  • Vacuum-pumping delay time, standing time and cycling times can be preset
  • There are light curtains in the operative surface to protect the safety of operators
  • The machine is controlled by PLC, which can be switched by hand or automatically. Configuration is displayed in text, which is convenient for setting and operation
  • The control box is independent, separated from the main body. The control box does not take up space of the glove box
  • The machine is mainly made of aluminum casting, resistant to electrolyte corrosion. The window in the front of the cavity is made of tempered glass, which makes the inside situation visible

Technique Paraneters

Item Common parameter
Measures (L*W*H)760 X510 X1190mm
Weight About 0.1T
Power 200W
Power source AC220V/50HZ
Air source ≥0.6Mpa, 5L/min
Vacuum source ≤-90Kpa, 300L/min
Internal measures of the cavity Length X thickness X height=500 X400 X300mm
Qualified rate ≥99%
