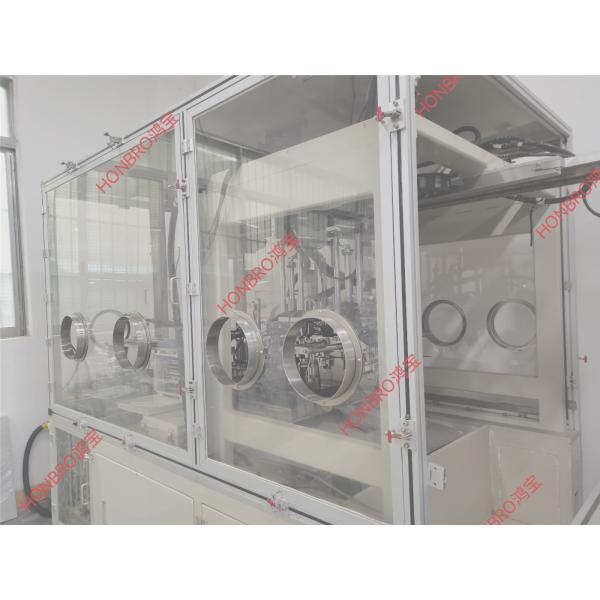

Middle Low Humidity Drying Glove Box , Battery Auto Injection Machine
Middle Low Humidity Drying Glove Box , Battery Auto Injection Machine
Specifications
Brand Name :
Honbro
Model Number :
Middle Type
Certification :
CE certification
Place of Origin :
Dongguan, China
MOQ :
1 set
Price :
USD 10，000-500，000/set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
350 sets/year
Delivery Time :
lab machine: 7-8 weeks, Mass production machine: 13-14 weeks
Packaging Details :
Fumigation-free wooden box and vacuum moisture-proof treatment
Glove box :
separated and modular design
The coating and material transfer box :
Stirrer device and support are included
inside vacuum :
up to -90Mpa
Auto electrolyte mixture system :
included to remove air bubbles, and prevent electrolyte drop
Air source :
≥0.6MPa 30L/S
Vacuum source :
≥-95KPa 80L/S
Description

Middle Low Humidity Glove Box, Middle Low Humidity Drying Box, Auto Injection Machine Of BatteryMiddle Low Humidity Drying Glove Box , Battery Auto Injection Machine

Function Description

This device is designed for pipelined work process from drying box to go through the glove box. Generally several boxes combine into a relatively confined space. The isolation between the inside and the outside can be achieved through gloves when operating. Low humidity wind is inlet to the inside box through linked air inlet pipe, thus maintaining the working environment of humidity and cleanness required by the product processing such as electrolyte filling, standing, and pre-sealing, etc.

Technical Feature

  • The glove box adopts separated and modular design, which means that it can be combined as required.
  • The coating and material transfer box is linked to the drying box. Stirrer device and support are included.
  • The working surface is made of stainless iron 304, which is free from corrosion.
  • Cylindrical transitional box is adopted to ensure the inside vacuum up to -90Mpa.
  • Gas spring for two side doors make it convenient to maintain and clean the device.
  • Auto electrolyte mixture system is included to remove air bubbles, and prevent electrolyte drop when electrolyte filling.

Technical Parameters

Item Common Parameter
Measures L2000*W1600*H1900mm(Transitional box and the size of PVC pipe valve are not included )
Weight About 1T
Power 1.0KW
Power source AC 220V±10% 50HZ/60HZ
Air source ≥0.6Mpa 30L/S
Vacuum source ≥-95KPa 80L/S
Applicable range None
Output None
Qualified rate None
Volume of electrolyte filling None
Electrolyte accuracy None
Weighing precision None
