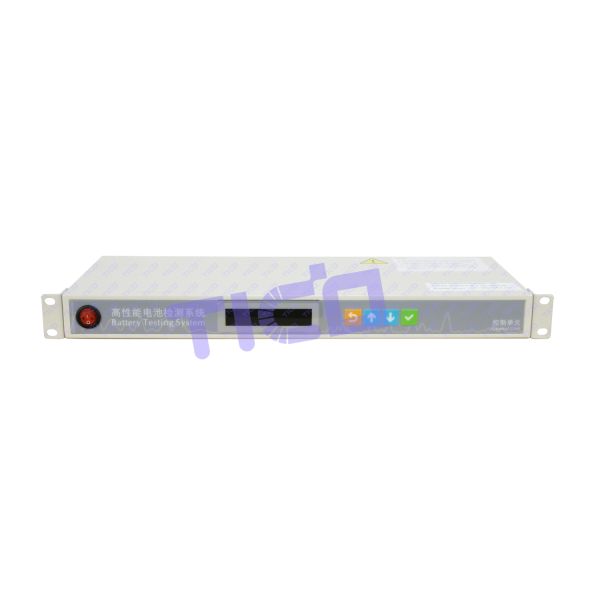

The Middle Machine for Baterry Tester
The Middle Machine for Baterry Tester
Specifications
Brand Name :
TICO
Model Number :
STC-ZWJ-4'S-T-1U
Place of Origin :
Shenzhen
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
5~8 working days
Packaging Details :
Standard export packing
Model :
STC-ZWJ-4'S-T-1U
Screen :
LCD
Communication mode :
TCP/IP
IP levels :
IP20
Description

The Middle Machine for Baterry Tester

Brief Introduction

This Master Unit is a core data management and equipment control unit specifically designed for precision measurement applications such as battery testing. It acts as a high-speed bridge between the host PC (software) and the slave units (multi-channel battery testers), enabling centralized scheduling of large-scale test programs, real-time data acquisition, and efficient processing. It is the critical infrastructure for building reliable, automated test systems.

Key Features

● Centralized Control & Efficient Management.

● Real-Time & Reliable Data Flow.

● Stability for Continuous Operation.

Technical Parameter

Input power AC 220V ±10% / 50Hz
Input power 15W
Data cache 4GB
Frequency Max. 100Hz
Clock error 1s/Day
It can be realized with the equipment Power-off protection Save the test state when the power is cut off for restoring the test.
Testing control Charge and discharge the equipment according to the working process.
Real-time guard Collect equipment data in real time, monitor the test process,and make logical protection judgment.
Off-line test When communication with the upper computer is interrupted, ensure that the test is not affected and continue.

Third-party device

communication

 The control of third-party devices and the integration of device data can be achieved through communication ( Such as: temperature box, chiller, pressure module, height scale block, press bed PLC, etc.)
CPU Arm Cortex-A8
System kernel Linux core
Screen LCD
Communication interface RJ45
Communication mode TCP/IP
Communication rate 100M
IP levels IP20
Maximum number of band channels (main channels + auxiliary channels) 256

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
