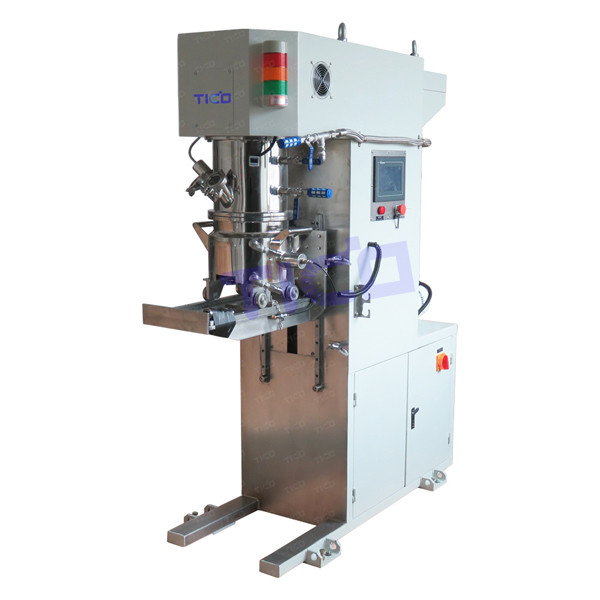

5L Planetary Vacuum Mixer For Battery Electrode Fabrication
5L Planetary Vacuum Mixer For Battery Electrode Fabrication
Specifications
Brand Name :
TICO
Model Number :
STC-EXJ-5L
Place of Origin :
Shen Zhen, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
5~8 working days
Packaging Details :
Standard export wooden packing
Product Name :
Battery Electrolyte Vacuum Diffusion Chamber
Effective volume :
5L
Bucket inner diameter :
240mm
Bucket inner depth :
180mm
Bucket material :
304 stainless steel
Working voltage :
AC 3×380V±5%, 50Hz
Total power :
＞4kw
Weight :
700kg
Description

5L Planetary Vacuum Mixer For Battery Electrode Fabrication

Brief Introduction

It is used for mixing dispersion of various common battery powder and liquid to achieve uniform battery slurry, especially for the high viscosity technological process. The viscosity interval of applicable operating conditions is ≤1200000cP.

Key Features

• Form of jacket for temperature adjustment, the single-layer jacket for bucket wall is used for cooling or heating; and the single-layer jacket for bucket bottom is used for cooling or heating.

• Over temperature alarm system, safer and smarter.

• Operation failure stop: the frequency converter is self-provided with overload, overcurrent, overvoltage, leakage of electricity, short-phase protection

• Variable cross-section Non-prismatic mixing design can make slurry get better mixing effect.

• Touch screen, simple operation, high automation.

Technical Parameters

Model

STC-EXJ-5L
Machine total power ＞4KW
Dimension L1463 * W610 * H1770mm
Weight 700kg

Part 1. Lower bucket component

Design volume 8L
Effective volume 2.7-5L
Bucket inner diameter 240mm
Bucket inner depth 180mm
Bucket material 304 stainless steel
Form of jacket for temperature adjustment The single-layer jacket for bucket wall is used for cooling or heating; and the single-layer jacket for bucket bottom is used for cooling or heating.
Interface of jacket for temperature adjustment “G3/8”, with quick-open joint, jacket pressure resistance ≤0.4MPa.
Circulatory system of jacket for temperature adjustment User provided, recommended jacket inlet temperature≤8℃, cooling water flow > 3.5L/Min.
Form of discharge One “G1/2” three-piece discharge ball valve at the bottom of the bucket.
Design ambient temperature -10～+120°C

Part 2. Mixing component

Operating frequency 5-50Hz
Mixing power 1.5KW
Speed of mixing paddle 10-98rpm
Speed of planetary gearbox 5-50rpm
Diameter of mixing paddle 124mm
Pattern of mixing paddle Non-prismatic twist type, 90° spiral line
Material of mixing paddle 304 stainless steel
Linear speed of mixing paddle 0.06-0.6m/s
Quantity of mixing paddle 2 pieces
Distance between paddles 7±2mm
Distance between paddle and bucket wall 3mm
Distance between paddle and bucket bottom 3mm

Part 3. Dispersed component

Operating frequency 5-50Hz
Dispersion power 2.2KW
Speed of dispersion 610-6100rpm
Diameter of dispersion disc 70mm
Pattern of dispersion disc Sawtooth pattern
Material of dispersion disc 304 stainless steel
Speed of dispersion line 2.2-22m/s
Quantity of dispersion disc 1piece
Quantity of dispersion axes 1piece

Warranty

1 year's warranty with lifetime technical support.

FAQ

1. Are you a manufacture ?

A: Yes,our factory is located in Shenzhen, China.

We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R&D department.

2. Do you accept customized product ?

A: Yes. Most of our products can be customized to meet different requirments.

3. Will you provide test video before dispatch ?

A: Yes, we take test video for every equipment before dispatchm which will display how to use it.

4. Can you offer overseas installation service ?

A: Yes, we can dispatch professional engineer for on-site installion service.
