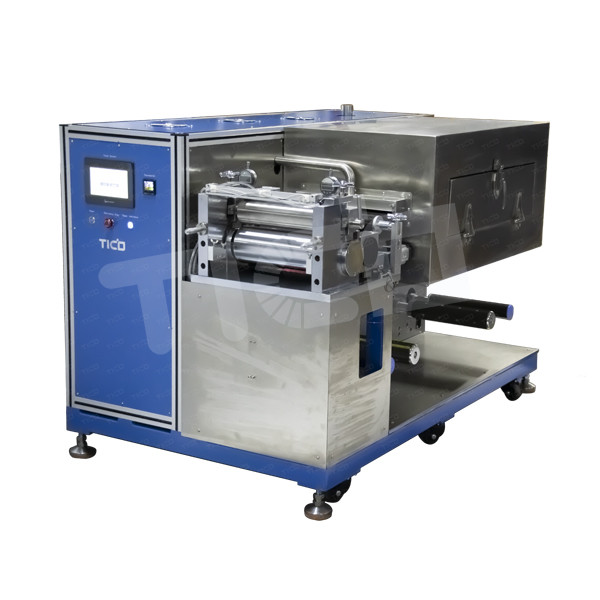

Transfer Roll to Roll Film Coating Machine for Battery Electrode Making
Transfer Roll to Roll Film Coating Machine for Battery Electrode Making
Specifications
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
30~35 working days
Packaging Details :
Wood Packing
Brand Name :
TICO
Model Number :
STC-TMZT-300
Place of Origin :
Shenzhen, China
Product Name :
Roll to roll film coating machine
Coating method :
3 rollers transfer coating
Coating mode :
Continuous & intermittent coating
Roller width :
330mm, 280mm effective
Substrate thickness :
Aluminium foil : 8~30μmCopper foil : 8~30μm
Coating speed :
0~0.5m/min,depending on the heating
Dimension :
L1700*W1000*H1100mm
Weight :
800Kg
Description

Transfer Roll to Roll Film Coating Machine for Battery Electrode Making

Brief Introduction

STC-TMZT-300 coating machine is a three roller transfer coating equipment, which can be used continuous coating and intermittent coating, it is convenient to apply for surface coating for various substrates. Especially used in the lithium-ion battery industry, the equipment is designed in accordance with the convenience of the researchers and meets the requirements of coating precision and consistency, it has excellent drying effect. It is the ideal choice for lithium ion battery, super capacitor, nickel battery and other two battery research and development and small test.

Key Features

● Continuous and intermittent coating can be changed freely.

● Tension control, it’s equipped with correction device.

● Lower & upper blowing heating oven with excellent drying.

● Comma coating blade metering, with precision adjustment mechanism to obtain high coating accuracy.

● Gap tracking system for double side coating.

● PLC control, high automation.

● Solvent recovery processing device is optional. Please click other link for NMP processing system.

Technical Parameters

Power Supply Information

Model

STC-TMZT-300
Voltage

AC380V, 50HZ, three-phase five-wire system
Power 10KW

Equipment

No. Item Technical Parameters Notes
1 Application Vanadium sodium, lithium iron phosphate, lithium cobalt oxide, lithium manganate, graphite, silicon carbon, and other system battery anode & cathode electrode
2 Coating method Continuous, intermittent coating Transfer coating machine
3 Mechanical speed Max 1m/min
4 Coating speed 0~0.5m/min Depends on drying conditions
5 Gap coating length

Coating length: 10~5000mm,

Bare coating length: 10~500mm
6 Double sided gap alignment

Photoelectric detection of gaps enables

automatic tracking of front side head and

tail gaps to align with back side head and

tail gaps.
7 Substrate thickness

Aluminum foil (Al): 8~30μm

Copper foil (Cu): 8~30μm
8 Roller width 330mm
9 Coating width Within 280mm
10 Coating roller, rubber roller φ120mm
11 Doctor blade roller φ80mm
12 Coating accuracy ±3μm
13 Coating surface density

≦±1.5%, (including substrate, excluding edge abnormal areas, refer to product

evaluation for sampling and measurement

criteria)
14 Slurry viscosity applicable 2000~12000 (mPa·s)
15 Single side coating thickness after drying 20-200μm
16 Solvent characteristics Oily solvent NMP(s.g=1.033,b.p=204°C)

Waterborne solvent

H2O/NMP (s.g=1.000,b.p=100℃)
17 Solid content range 20~85%
18 Coating size accuracy(mm) L≤ ±1,W≤ ±0.5

L: Length direction

W: Width direction
19 Double side alignment accuracy (mm) L≤ ±1,W≤ ±0.5
20 Corrective error ±0.3mm

Dimension & Weight

Dimension L1700 * W1000 * H1100mm
G. W 800kg
Moving methods Wheels and foot will be installed.

Warranty

1 year's warranty with lifetime support .

FAQ

1. Are you a manufacturer ?

A: Yes, our factory is located in Shenzhen, China.

We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R&D department.

2. Do you accept customized product ?

A : Yes, Most of our products can be customzied to meet different requirements.

3. Will you provide test video before dispatch ?

A : Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service ?

A : Yes, we can dispatch professional engineer for on-site installation service.
