Vacuum Electrolyte Filling and Standing Machine
Vacuum Electrolyte Filling and Standing Machine
Specifications
Brand Name :
TICO
Model Number :
STC-CZY-35J
Place of Origin :
Shenzhen, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
20~25 working days
Packaging Details :
Wood Packing
Product Name :
Vacuum Electrolyte Filling and Standing Machine
Application :
Cylindrical cell & supercapacitor battery
Working station :
35
Volume :
0.2ml~3LxN filling, adjust according to filling pump
Dimension :
L1000*W500*H640mm
Weight :
180kg
Description

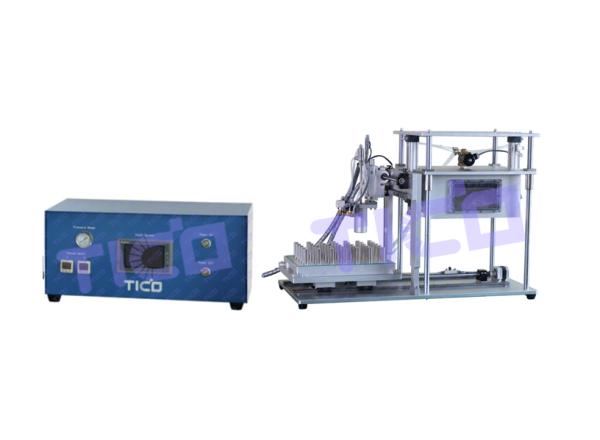

Vacuum Electrolyte Filling and Standing Machine

Brief Introduction

It is a multi-working stations machine for battery electrolyte injection and vacuum standing process. The electrolyte has high precision, absorption consistency and high reliability.

Features

● Electrolyte filling & vacuum standing 2 in 1 machine.

● Electrolyte injection speed and volume, vacuum degree and pressure holding & standing time are adjustable.

● Key part is adopted the SS304, SS316 material, and anti-corrosion.

● It has extremely high measurement accuracy and repeatability.

● Multi-station with high efficiency, accurate precision, convenient and reliable operation.

● The inlet and outlet are connected by chemical-resistant hoses.

● Can be operated in glovebox or drying room.

● PLC, touch screen operation, flexible parameters, high automation program.

Technical Parameters

Model STC-CZY-35J
Voltage AC220V±10%, 50Hz
Application Cylindrical cell & supercapacitor battery
Working station 35
Volume 0.2ml~3LxN filling, adjust according to filling pump
Filling accuracy ±0.5%
Spitting speed 0.1~0.6ml/s adjustable
Main function Filling and standing
Dimension L1000*W500*H640mm
Weight 180kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
