Fast Speed High Efficiency Vertical Planetary Grinding Machine
Fast Speed High Efficiency Vertical Planetary Grinding Machine
Fast Speed High Efficiency Vertical Planetary Grinding Machine
Fast Speed High Efficiency Vertical Planetary Grinding Machine
Fast Speed High Efficiency Vertical Planetary Grinding Machine
Fast Speed High Efficiency Vertical Planetary Grinding Machine
Fast Speed High Efficiency Vertical Planetary Grinding Machine
Fast Speed High Efficiency Vertical Planetary Grinding Machine
Fast Speed High Efficiency Vertical Planetary Grinding Machine
Fast Speed High Efficiency Vertical Planetary Grinding Machine
Specifications
Brand Name :
ACEY
Model Number :
ACEY-VPM-2L
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2350~2449/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Compatible Grinding Jars :
2L: (250ml~500ml) * 4 / 4L:(500ml~1000ml) * 4
Max Feeding Capacity :
2/3 capacity of the grinding jar
Roll placement :
vertical placement
Sample Type :
hard, medium-hard, soft, fibrous, brittle, moist
Dimensions :
720mm*468mm*535mm
Equipment weight :
75kg-120KG
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Description
Fast Speed High Efficiency Vertical Planetary Grinding Machine
The ACEY-VPM-2L Planetary Ball Mill performs dry grinding, suspension grinding, or grinding in inert gas. Beyond comminution, this versatile machine handles mixing and homogenizing of emulsions and pastes, as well as mechanical alloying and activation in material research. With compact design, comprehensive functionality, high efficiency, and low noise operation, it's the ideal equipment for research sampling in institutes, universities, and enterprise laboratories—processing four samples simultaneously. When paired with vacuum ball milling tanks, it enables grinding under vacuum conditions. Applications span Geology, Mining, Metallurgy, Electronics, Construction Materials, Ceramics, Chemical Engineering, Light Industry Medicine, and Environmental Protection.
Key Features
  • Elegant design with easy operation
  • Ideal for both wet and dry grinding applications
  • Automatic programmable control with LED display
  • Multiple grinding mode selections
  • High uniformity and excellent repeatability
  • Fast rotational speed for high efficiency and fine granularity
  • Process four different samples simultaneously
  • Programmable interval and pause timing
  • Stepless speed regulation with reversing function
  • Wide range of compatible grinding tool materials
  • Gear-drive system eliminates belt-drive issues
  • Low center of gravity, robust construction, compact design, quiet operation
  • Built-in fan cooling for extended grinding sessions
Technical Specifications
Working PrincipleImpact and friction force
Compatible Grinding Jars2L: (250ml~500ml) * 4 / 4L: (500ml~1000ml) * 4
Max Feeding Capacity2/3 capacity of grinding jar
Operation Mode2 or 4 grinding jars working simultaneously
Max Feeding Granularity15mm
Mini Discharging GranularityDown to 0.1μm
Sample TypeHard, medium-hard, soft, fibrous, brittle, moist
Rotational Speed of Grinding Jar800rpm
Rotational Speed Ratio1:2
Drive ModeGear drive and belt drive
Speed ControlStepless speed regulation
Electrical Details110V/220VAC, 50/60 Hz, 0.75KW
Max Continuous Grinding Time72 hours (full-load)
Weight (Net/Gross)2L: 75kg/110kg, 4L: 80kg/120kg
Dimension (L*W*H)720mm * 468mm * 535mm
Size of Planetary DiskDia340mm * T6mm
Noise Level<70dB

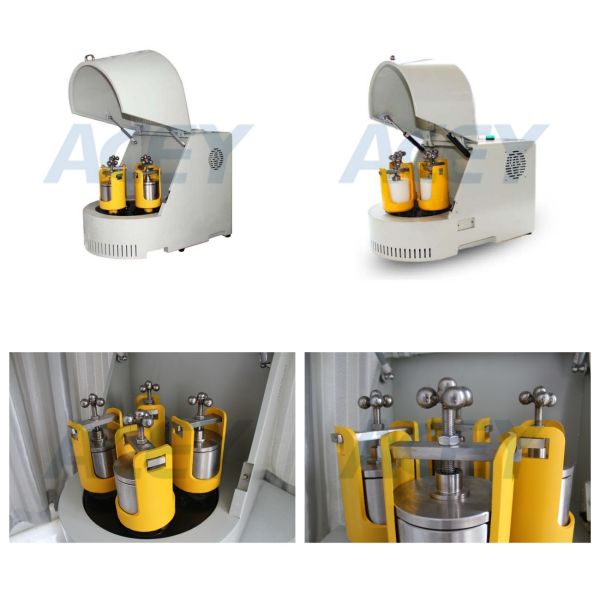

Product Visualization
