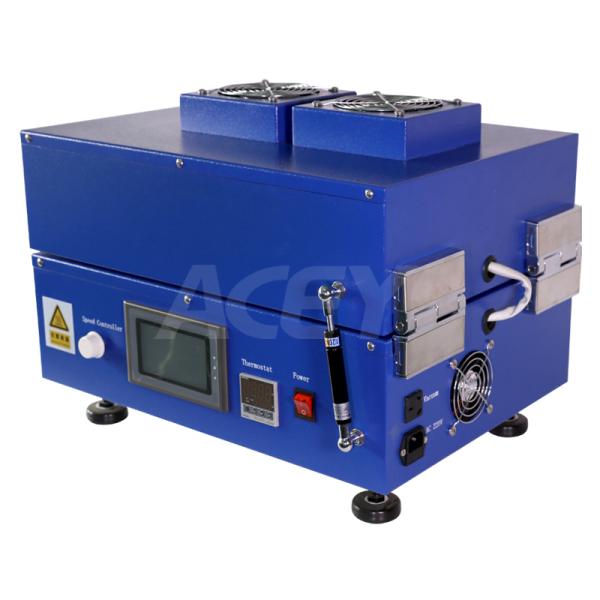

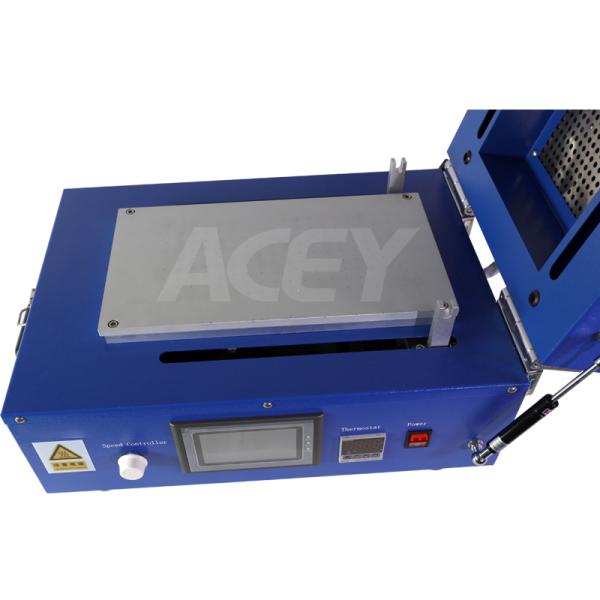

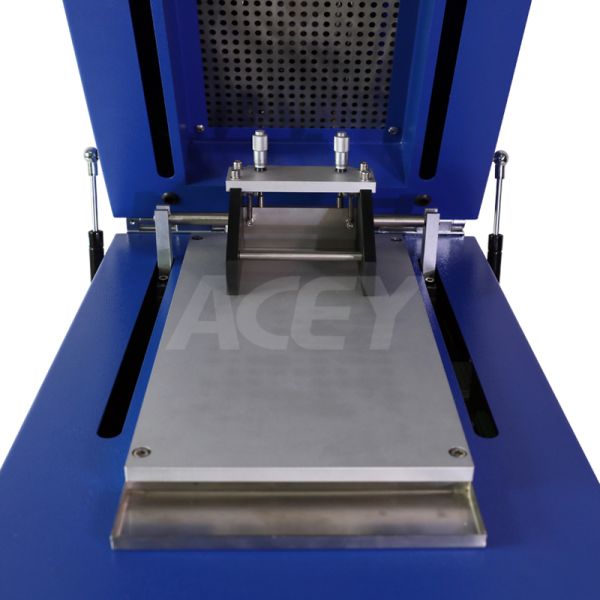

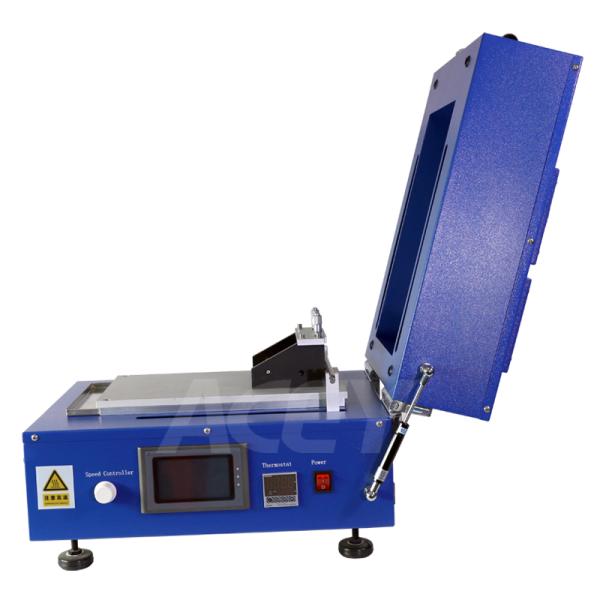

Automatic Adjustable Vacuum Film Drying Coating Machine
Automatic Adjustable Vacuum Film Drying Coating Machine
Automatic Adjustable Vacuum Film Drying Coating Machine
Automatic Adjustable Vacuum Film Drying Coating Machine
Automatic Adjustable Vacuum Film Drying Coating Machine
Automatic Adjustable Vacuum Film Drying Coating Machine
Automatic Adjustable Vacuum Film Drying Coating Machine
Automatic Adjustable Vacuum Film Drying Coating Machine
Specifications
Brand Name :
ACEY
Model Number :
ACEY-HFC250
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2380 /Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Packaging Details :
Plywood Case
Delivery Time :
7~35 Days
The coating width :
adjustable from 6.4-100mm
Coating speed :
0～120mm/sec
Scraper adjustable range :
0～6mm adjustable
Heating drying system :
room temperature～150℃
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Description

Automatic Adjustable Vacuum Film Drying Coating Machine



Product Description

ACEY-HFC250 is widely used in the research of various high-temperature coating films, such as ceramic films, crystalline films, battery material films, and special nano-films; they can adapt to the development of science and technology for film formation under high temperature conditions in the future.


Product Features

*Using large area uniform heating to ensure high precision and uniform temperature in the cavity;
* Flat coating, motor-driven scraper coating, stable and adjustable coating speed;
*The coating film speed is adjustable. The vacuum aluminum pan can quickly place or remove copper foil, aluminum foil, etc., built-in vacuum pump or connected to an external vacuum source, and the substrate is adsorbed without deformation;
*Standard film dispenser, high coating precision, coating Adjustable cloth thickness;
*Can be used in the glove box, easy to operate and small in size, which can save space;
*PLC. Touch screen control for easy parameter setting.

Technical Parameter

Heating drying system room temperature～150℃, digital display temperature controller, accuracy ± 1℃
Coating method flat coating, standard film maker (can be enlarged), optional scraper, wire rod and other gauges
The coating width adjustable from 6.4-100mm, the coating stroke is about 250mm, and the stroke is steplessly set and adjusted in the touch screen
Coating drive motor drive, the coating speed is steplessly set and adjusted in the touch screen;
Coating speed: 0～120mm/sec (such as lithium iron phosphate slurry);
Scraper adjustable range 0～6mm adjustable
Vacuum plate size L365mm×W200mm×H32mm
Vacuum plate aluminum plate with vacuum
Accuracy: ±3μm, optional display 1μm dial indicator
Power supply 220V/50Hz
Weight 50KG
Dimensions L505mm×W355mm×H325mm
Packing details Include 1 built-in oil-free vacuum pump

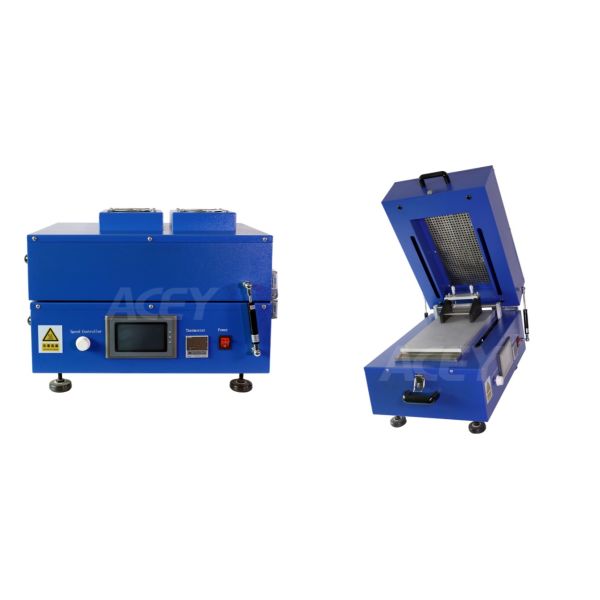

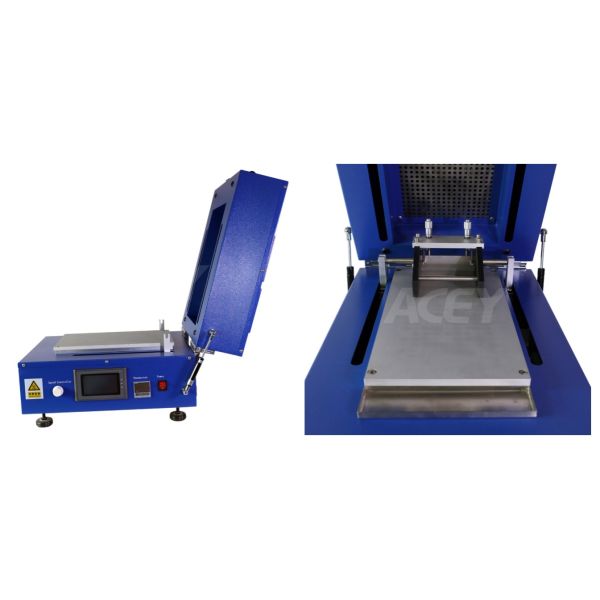

Product Display
