5V 1A 512 Channels Pouch Lithium Ion Cell Capacity Grading Machine

Product Description

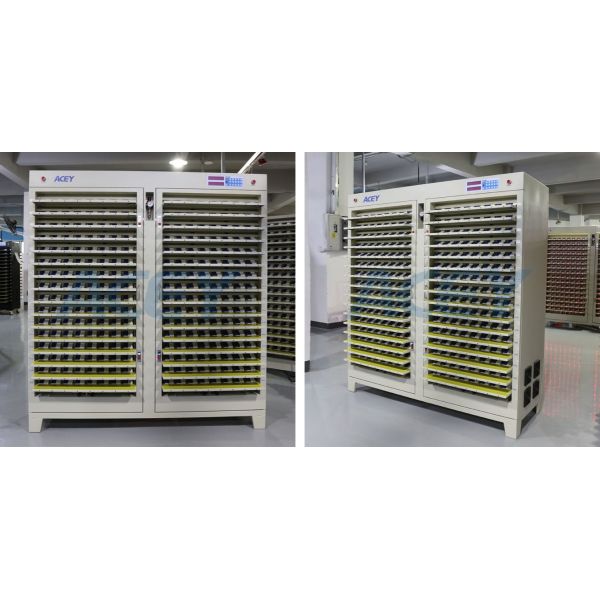

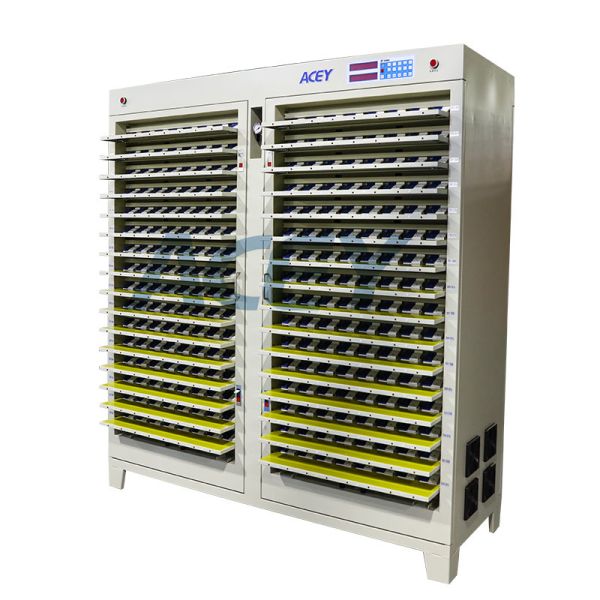

ACEY-PCT501-512 pouch lithium ion cell capacity grading machine is designed for formation, capacity grading, and performance testing of pouch lithium-ion batteries. It is a master–slave battery testing system composed of a computer and the device’s microcontroller, featuring an advanced structure, reliable performance, easy operation, and high efficiency. With excellent cost-performance, it is an essential testing and production tool for battery manufacturers, grading facilities, and research institutions.

The system is controlled via a computer, which sends commands and collects data, while the keyboard allows manual operation and real-time display of parameters and system status. The constant current board, managed by the CPU, provides precise constant current and constant voltage control during testing.

Equipment Structure

  1. The system is controlled by a single CPU board, which manages the entire cabinet.
  2. It includes 64 eight-channel constant current boards, evenly arranged across four doors.
  3. Two sets of 32 output switching power supplies provide power, with each supply supporting two constant current boards.
  4. Two keyboard panels allow convenient operation from both the front and rear of the cabinet.

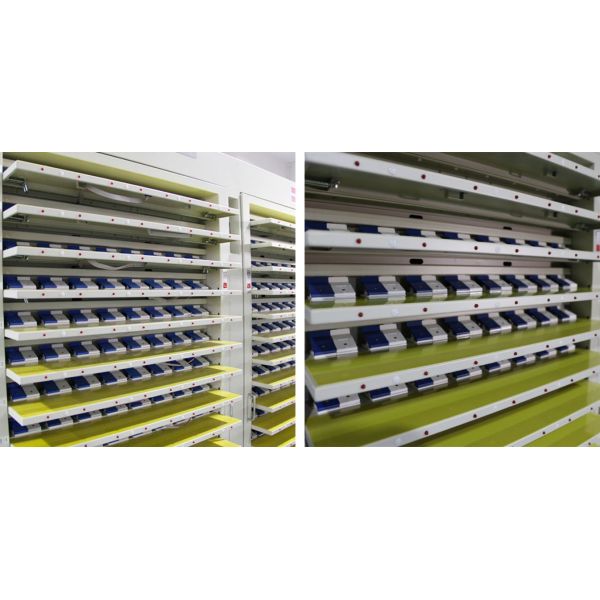

  5. The system comes with 64 trays, each 180 mm deep and insulated with epoxy boards, supporting 8 channels per tray and battery electrode widths up to 65mm.

Main Technical Parameter

Structure Of Equipment (Device)
Number of device channels 512 Channels
Size (width * depth * height) cm 160*55*184
Clamp form Cylindrical four-wire fixture
Color of device White
Clamp center distance 40mm/35mm
Support battery height Adjustable within 10-100mm range
Working power Three-phase five-wire system ac380v±10%, 50hz
Working power dissipation ≤27kw
Work environment Temperature 0-40 ℃, relative humidity ≤80%
Heat-dissipating method Natural wind intake and upward exhaust
Channel Parameter
Voltage testing range 0-5V, 1MV resolution
Battery voltage range Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range 2.5V-4.5V
Voltage accuracy ±(1‰ reading +1‰ full)
Current range 10mA-1A, Reslution: 1mA
Current accuracy ±(1‰ reading +1‰ full)
Control mode Computer connection equipment work, Whole
Machine Control
Software Function
Communication mode Rs485, baud rate 57,600
Process set Maximum 32 work steps and 256 cycles
Charging mode Constant current, constant voltage
Charging cutoff condition Voltage, current, time, capacity
Discharge Constant current
Discharge cut-off condition Voltage, time, capacity
Protection function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range 0 - 30,000 minutes
Time accuracy ≤±1‰
Sampling inspection period ≤8s
Minimum data recording frequency ≤8s
Battery grading By capacity, time, discharge platform, etc
Data processing Data, graphs, and loop diagrams
