Specifications
Brand Name :
ACEY
Model Number :
ACEY-BP32-200A200A
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 9170~9630Set
Supported Series: :
1-32S
Discharging current :
0.1A ~200A
Current resolution :
1mA
Current accuracy :
±（0.1%）
Packaging Details :
Plywood Case
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

1-32 Series 200A Charge And Discharge BMS Testing machine For Lithium Ion Battery

Product Description

ACEY-BP32-200A200A is with high automation level, featuring a friendly Chinese interface, fast testing speed and high testing accuracy. It has 13 performance tests including overcharge, overcharge recovery, overdischarge, overdischarge recovery, overcurrent (overcharge current and overdischarge current), internal resistance, self-consumption, short circuit protection, overcharge protection time, overcurrent protection time, overdischarge protection time, equalization current, and equalization voltage.

Device Advantages

1. Cycle: cycle times: 1 to 9999 times
2. Laboratory mode, can arbitrarily adjust the voltage value of a section
3 Can continuously provide charging and discharging current.
4. Using programming, the device carries out the number of cycles of each indicator of the protection board without interruption.
5. Log tracking, With log function, including the test of the entire process of operation records, abnormal records, can be used for the traceability of the test process.
6. Data processing, human-machine interface
7. Test data is saved in EXCEL file.
8. RS232 interface is used for the interface between the device and the host computer, which can ensure the stability and real-time data acquisition.
9. Accuracy calibration/software calibration
10. With sweeping code start function
11. MES system interface
12. Active equalization (can be customized)
13. Equalization current (customizable)
14. Communication protocol test (optional)

Tester Function

No. Function Range Accuracy unit
1 Self-consumption of single cell 0--500 ±0.1 uA
2 Self-consumption 0--5000 ±1 uA
3 Overcharge voltage 500--5000 ±1 mV
4 Overcharge recovery voltage 500--5000 ±1 mV
5 Overcharge voltage protection delay 0--10000 ±1 mS
6 Overdischarge voltage 500--5000 ±1 mV
7 Overdischarge recovery voltage 500--5000 ±1 mV
8 Overdischarge voltage protection delay 0--10000 ±1 mS
9 Overcharge protection current protection value 0.1--200 ±0.01 A
10 Overcharge protection current protection delay 0--20000 ±1 mS
11 Overdischarge protection current protection value 0.1--200 ±0.01 A
12 Overdischarge protection current protection delay 0.1--20000 ±1 mS
13 Equalization function opening voltage 500--5000 ±1 mV
14 Equalizing current 1--500 ±1 mA
15 Charging current 0.1--120 ±0.01 A
16 Discharging current 0.1--120 ±0.01 A
17 Charging time 0--100 ±1 S
18 Discharging time 0--100 ±1 S
19 The difference of single cell self-consume 0-500 ±0.1 uA
20 Resistance 0-999 ±1 mΏ
21 Short circuit protection time 0--5000 ±1 uS
22 The charging voltage of single cell 500--5000 ±1 mV
23 The discharging voltage of single cell 500--5000 ±1 mV
24 Open circuit voltage 160000 ±1 mV
25 Number of voltage analogs 32 0 PCS

Parameter of the main loop test

Project Parameter
Voltage 160000mV
Voltage resolution 1mV
Voltage accuracy ±0.1%
Discharging current 0.1A ~200A
Current resolution 1mA
Current accuracy ±(0.1%)
Other The charging and discharging circuits are completely separated

Parameter of every series cell

Project Parameter
Output voltage of every cell 500mV ~ 5000mV
Input voltage of every cell 500mV ~ 5000mV
Voltage resolution 1mV
Voltage accuracy ±0.05%
Equalization current 500mA

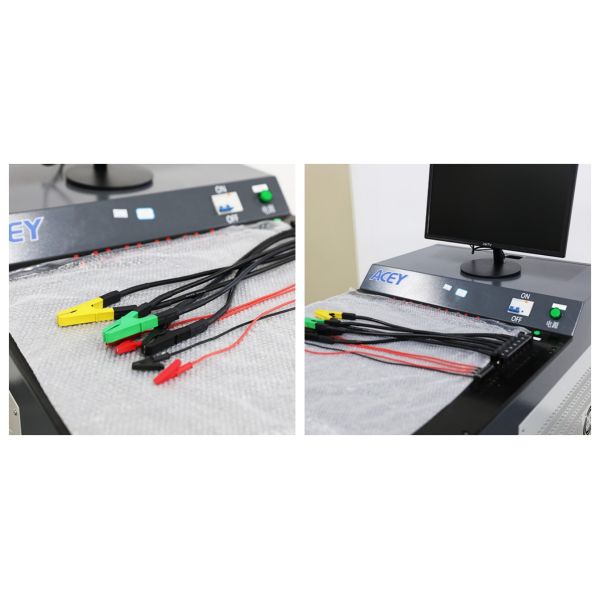

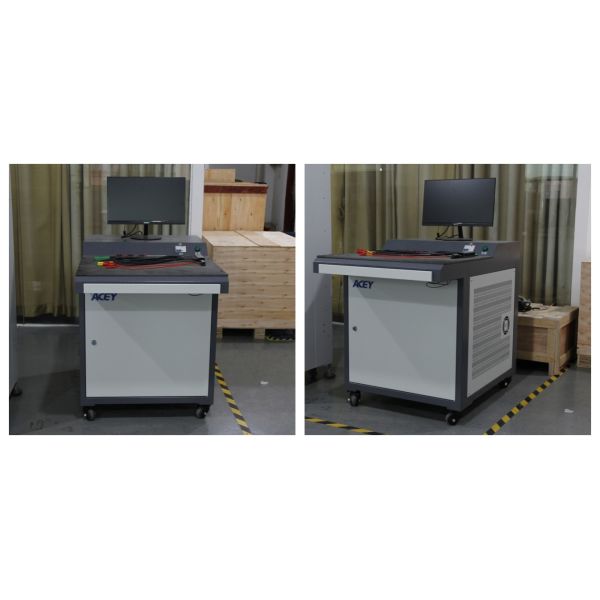

Product Display

1-32 Series 200A Charge And Discharge BMS Testing Machine For Lithium Ion Battery

1-32 Series 200A Charge And Discharge BMS Testing Machine For Lithium Ion Battery
