Automatic Ultrasonic Aluminum Wire Bonding Machine Wire Bonder For Lithium Ion Battery Pack

Product Description

Automatic ultrasonic aluminum wire bonding machine ACEY-3740A,It is the first company in the country to use the rotary welding head method, adopting a digital automatic frequency tracking ultrasonic system, a digitally controlled pressure adjustment function, a first-class image recognition device, and a fully closed-loop motion control circuit. Realize the full automation of China's thick aluminum wire bonding machine. Mainly used for welding Tesla battery 18650,21700, 26800 lithium battery, square battery, etc.

Product Features

1. Manual (manipulator) loading, automatic identification and positioning, automatic bonding, manual (manipulator) unloading.
2. This assembly machine is dedicated to the bonding production of battery products specified by the customer. Non-universal equipment.
3. If other products are needed, they need to be modified and used according to actual conditions.
4. This machine is mainly composed of frame assembly, XYZC feeding assembly, automatic feeding mechanism, wire feeding mechanism, jig positioning and pressing assembly, welding head mechanism and console, etc.
5. X adopts imported linear motor, Y and Z modules are driven by precision ball screws, and the distance repeat positioning accuracy is less than ±
0.02mm, the angular positioning accuracy of C axis is ±1°.
6. The control system adopts industrial computer + motion control card to control the operation of the private server motor. The equipment is easy to operate and maintain, the control interface is friendly, and the parameter setting is digital; it is more flexible.
7. Adopt quick clamp clamping, single button start, easy and safe for personnel to unload materials.

Main Technical Parameter

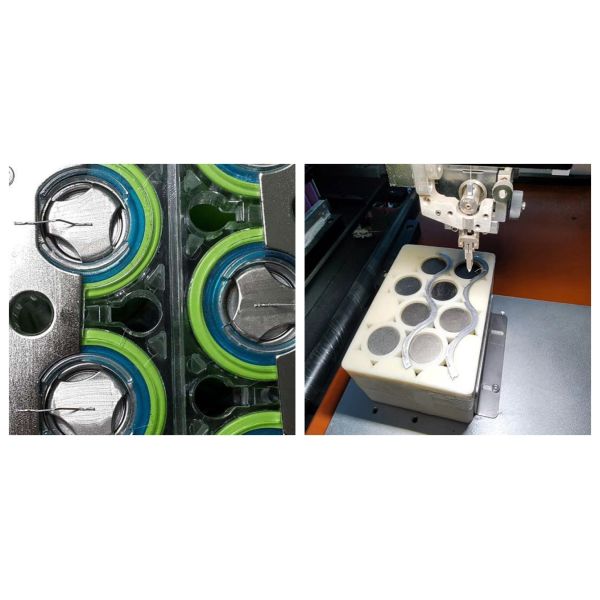

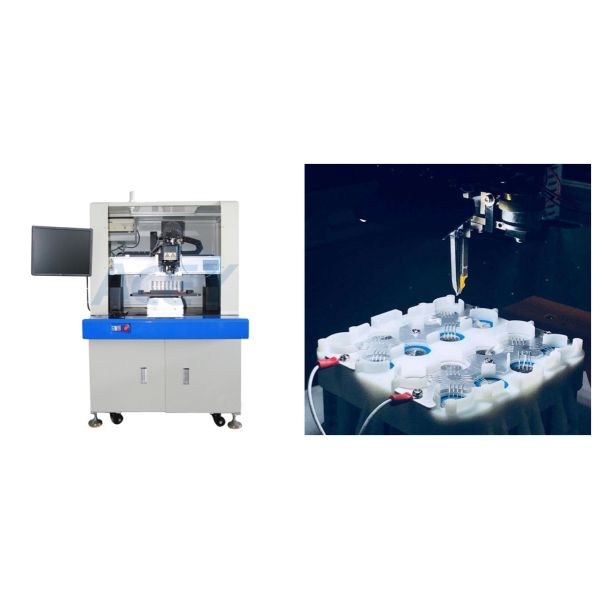

Product Display
