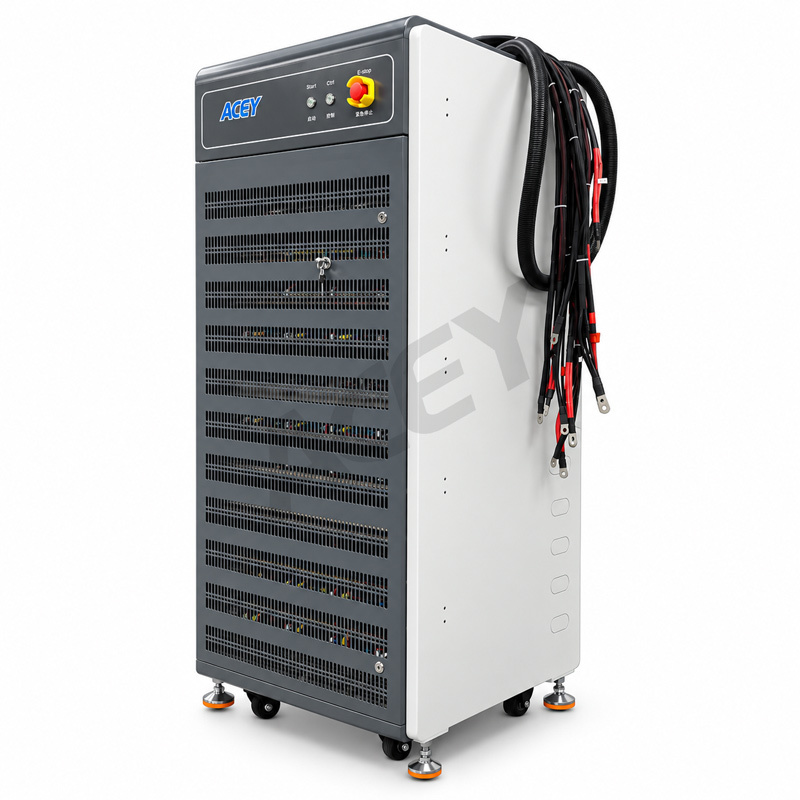

60V 50A Battery Aging Machine with Energy Feedback for Battery Pack Manufacturing 16 Channels

Product Description

ACEY‑BA6050‑16 Battery Aging Machine is an energy‑feedback battery charge‑discharge aging tester with modular power unit design. Each module contains 2 fully independent and programmable test channels. It is applicable for aging, capacity and charge‑discharge characteristic tests of ternary, LFP, lead‑acid, Ni‑MH and Ni‑Cd battery packs, covering 10V‑60V voltage range and adjustable current from 100 mA to 50 A. Featuring high‑precision sampling of ±(0.05%RD+0.05%FS), dual software‑hardware protection, power‑failure data retention & resume‑test function, optional multi‑protocol communication and MES system integration, this equipment is widely deployed for battery‑manufacturing production‑line inspection, EV/HEV power‑battery system detection and daily maintenance of battery modules.

Product Highlights

• Energy‑feedback design:Discharge energy feeds back to grid to cut energy consumption
• Independent test channels:2‑channel per module, fully independent programmable control
• High‑precision measurement:±(0.05%RD+0.05%FS) voltage & current accuracy
• Modular structure:Simple maintenance, fast spare‑part replacement
• Complete dual safety protection:Software‑hardware combined protection for test security
• Powerful data management:Real‑time MES upload, Excel export and full‑process traceability

Product Features

1. Comprehensive Testing: Supports battery aging, capacity, charge-discharge, and temperature tests, with programmable CC/CV/CCCV charging, CD/CP discharging, resting, and cycle testing up to 9999 cycles.

2. Safety Protection: Provides software and hardware protection against overvoltage, overcurrent, overtemperature, reverse connection, short circuits, and abnormal voltage changes.

3. Data Analysis and Export: Records data at intervals of 5 seconds, with multiple data views, Excel export, and customizable test curves.

4. BMS Communication: Optional SMBus, I2C, HDQ, SPI, CAN, and RS485 interfaces support BMS data reading and system integration.

5. Accurate Measurement: Four-wire voltage and current sampling improves measurement accuracy, while soft-start control reduces current surges.

6. Fault Recovery and Traceability: Supports test resumption after power or communication interruptions, with anomaly alarms and detailed test logs.

Main Technical Parameter

Product Display

FAQ

Q1: What kinds of battery packs can energy‑feedback charge‑discharge aging testers test?

The ACEY‑BA6050‑16 energy‑feedback battery charge‑discharge tester supports ternary lithium, lithium iron phosphate, lead‑acid, Ni‑MH and Ni‑Cd battery packs. Its test voltage ranges from 10V‑60V with adjustable current between 100 mA and 50A. It is widely applied to battery module aging, capacity inspection and high‑current performance testing for power batteries.

Q2: What accuracy and channel features should I look for in a battery pack cycle tester?

ACEY‑BA6050‑16 battery cycle aging tester features a 2‑channel per‑module design with fully independent channels. It delivers voltage and current accuracy of ±(0.1%RD+0.1%FS). Soft‑start output prevents inrush current, and the minimum data logging interval is 5 seconds. Each channel can run separate charge‑discharge steps without mutual interference for parallel battery cycling tests.

Q3: Can battery charge‑discharge testing equipment resume tests after power loss, and what safety protections are available?

ACEY‑BA6050‑16 battery charge‑discharge test system supports power‑failure resume, which continues existing work‑steps after power outages or communication interruptions. It is equipped with comprehensive hardware and software protections including reverse‑connection, short‑circuit, over‑voltage, over‑current and over‑temperature protection. It automatically suspends relevant channels for sampling line failures, together with alarm notification and full log traceability to guarantee test safety.
