Energy Regenerative 60V 60A 24-Channel Battery Aging Testing Equipment for Lithium and Lead-Acid Battery Packs

Product Description

ACEY-BA6060-24 Energy Feedback Battery Aging Testing Machine is designed for battery pack aging, capacity testing, charge-discharge performance evaluation, and temperature characteristic testing. It supports battery packs with a voltage range of 8V to 60V and adjustable charging and discharging currents from 100mA to 60A, with 24 independently controlled test channels and a maximum continuous output power of 3.6kW per channel. The system supports programmable constant current and constant voltage charging, constant current and constant power discharging, and multi-level cycle testing. Its energy feedback design returns discharge energy to the power grid, helping reduce energy consumption during extended testing. With high-precision voltage and current measurement, real-time data monitoring, Excel data export, MES integration, and comprehensive safety protection, it is suitable for battery pack manufacturing and production testing involving lithium, lead-acid, NiMH, and NiCd batteries.

Test Items

• Battery Pack Capacity Test: Measures charging and discharging capacity under configured test conditions.

• Charge-Discharge Performance Test: Evaluates battery pack voltage, current, capacity, energy, and charge-discharge characteristics.

• Battery Aging Test: Performs programmable charge-discharge cycles to assess battery performance during repeated operation.

• Cycle Life Test: Executes repeated charge-discharge sequences with configurable cycle counts and termination conditions.

• Temperature Characteristic Test: Monitors battery temperature during charging, discharging, and cycling when temperature measurement is configured.

• Charging and Discharging Efficiency Test: Records charge and discharge capacity and energy data for efficiency analysis.

• Constant Current and Constant Voltage Charging Test: Supports CC and CCCV charging modes with automatic transition between constant current and constant voltage.

• Constant Current and Constant Power Discharge Test: Supports configurable discharge procedures for evaluating battery behavior under different operating conditions.

System Composition

The ACEY-BA6060-24 Battery Aging Testing System consists of the following main components:

1. Power Supply Module: Provides the power required for system operation.

2. Bidirectional AC/DC Conversion Module: Enables energy conversion between the AC power grid and the battery testing system, supporting discharge energy feedback to the grid.

3. Power Module: Provides controlled charging and discharging output for each test channel.

4. Control Module: Manages test procedures, channel operation, parameter configuration, and safety interlocks.

5. Data Acquisition System: Collects battery voltage, current, temperature, and other configured test data.

6. Heat Dissipation System: Supports thermal management during equipment operation.

7. Upper Computer and Software System: Provides test programming, real-time monitoring, data recording, curve analysis, Excel export, and MES data integration.

8. Cabinet Structure: Integrates the electrical modules, control hardware, and thermal management components into the equipment enclosure.

Main Technical Parameter

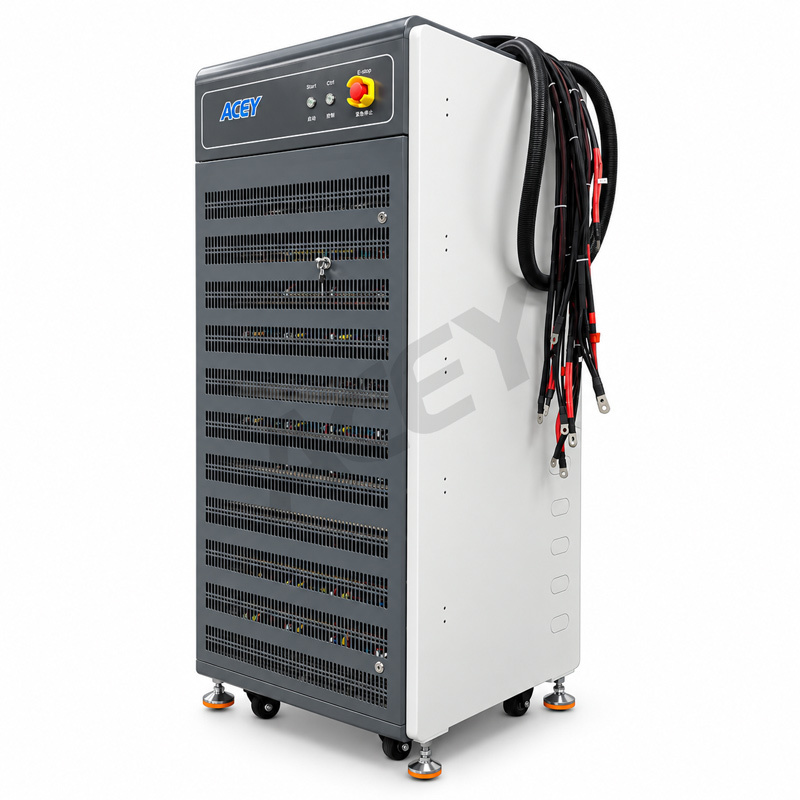

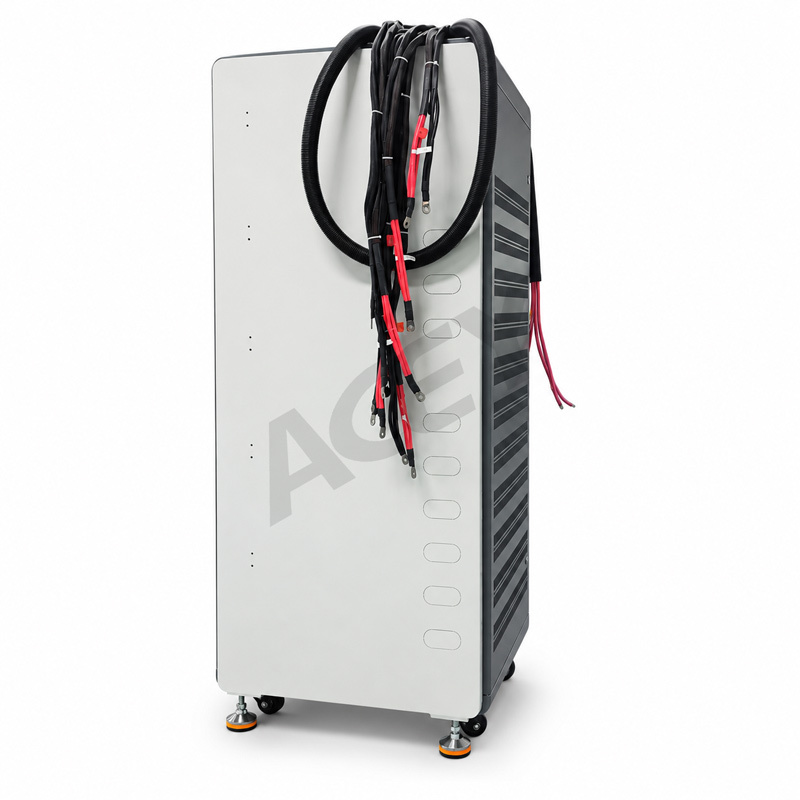

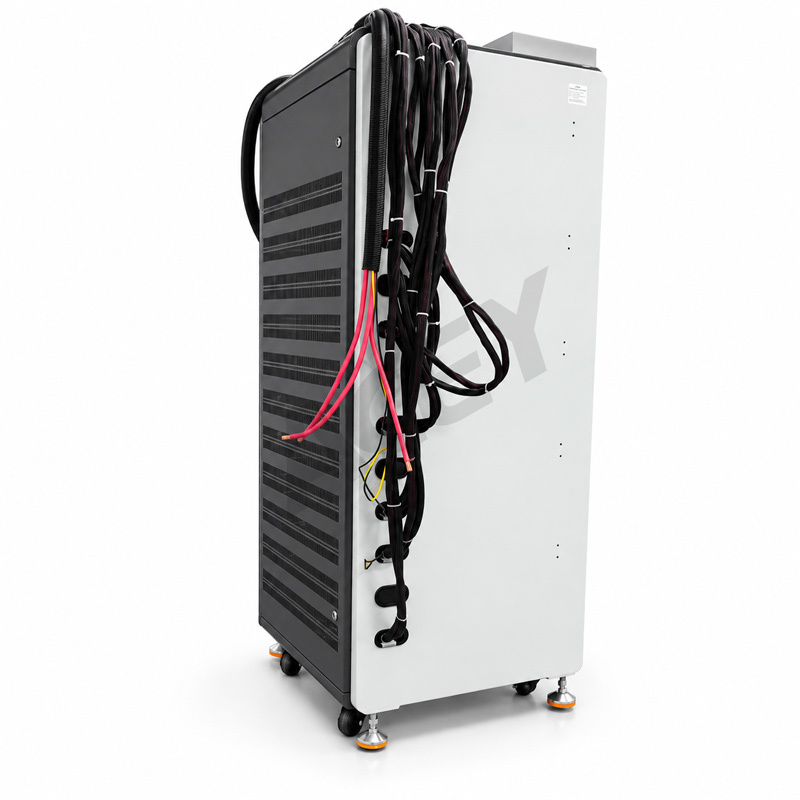

Product Display

FAQ

FAQ 1: What types of batteries can a battery aging testing machine test?

The ACEY-BA6060-24 Battery Aging Testing Machine is suitable for lithium-ion, lithium iron phosphate, lead-acid, nickel-metal hydride (NiMH), and nickel-cadmium (NiCd) battery packs. It supports battery aging, capacity testing, charge-discharge performance evaluation, and cycle testing.

FAQ 2: How many battery packs can be tested simultaneously with a 24-channel battery tester?

The ACEY-BA6060-24 Battery Aging Testing Machine features 24 independently controlled test channels. Each channel supports separate charging and discharging parameters and programmable test procedures, allowing multiple battery packs to be tested simultaneously under different conditions.

FAQ 3: How does an energy feedback battery tester reduce electricity consumption?

The ACEY-BA6060-24 Battery Aging Testing Machine uses a bidirectional energy conversion system to feed discharge energy back into the power grid. This helps reduce energy drawn from the grid during repeated charge-discharge cycles, making it suitable for long-duration battery aging and cycle life testing.
