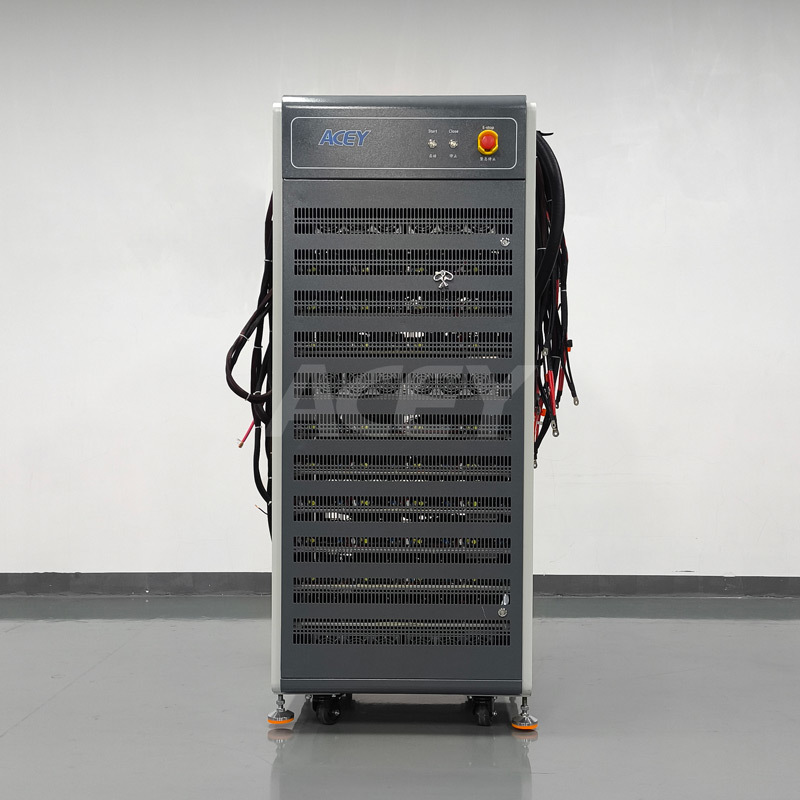

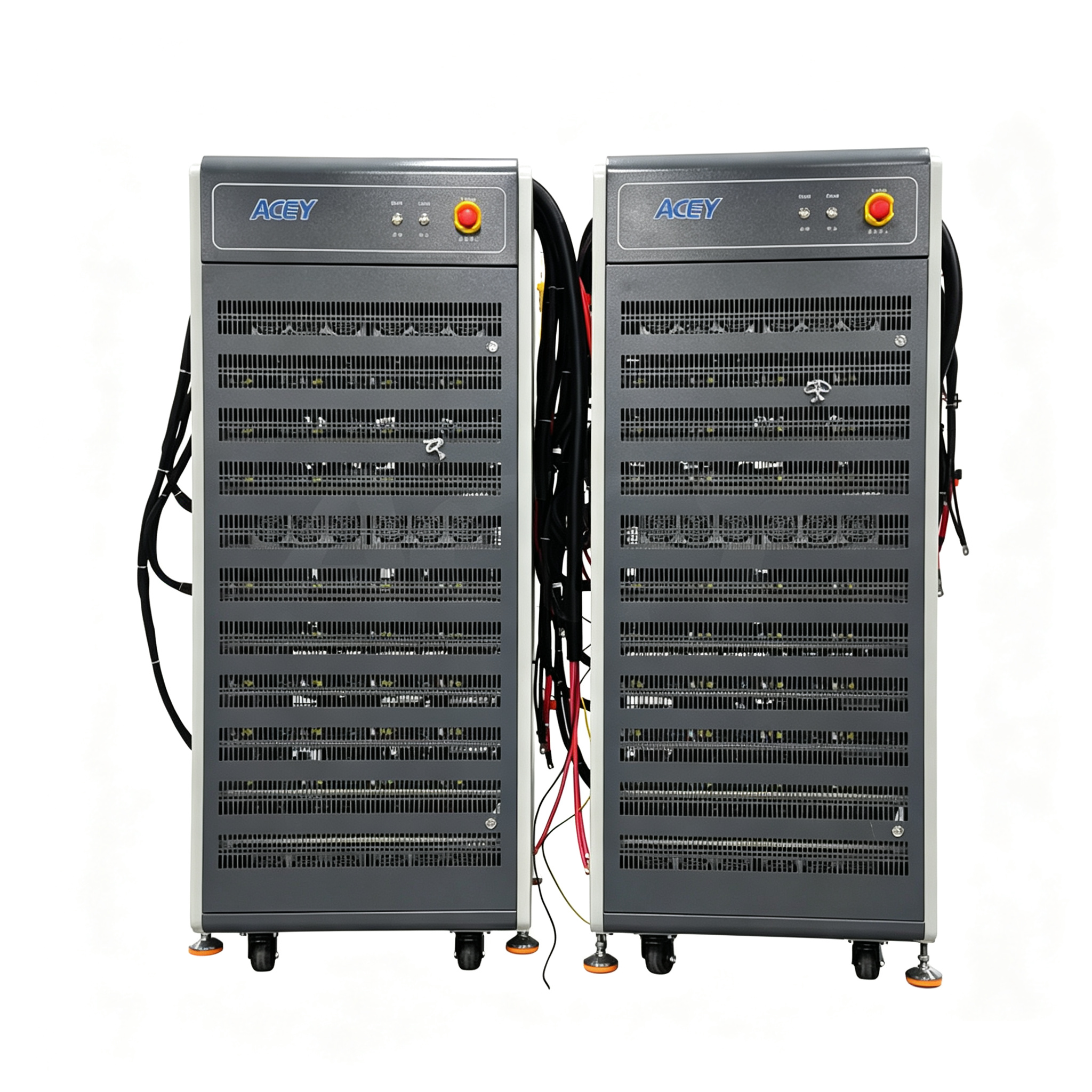

ACEY-BA60300-16 is a 60V 300A battery pack charge and discharge tester designed for high-power testing of lithium battery packs. It supports a voltage range of 10V–60V and charging and discharging currents of up to 300A, making it suitable for capacity testing, aging tests, cycle life evaluation, and performance verification. The regenerative design feeds discharge energy back to the power grid, helping reduce energy consumption and operating costs during long-term testing. With independently controlled channels and flexible test programs, the system can test different battery packs simultaneously and is widely used for EV batteries, ESS battery packs, and industrial lithium battery applications

• High-Precision Testing: Voltage and current accuracy up to ±0.1%RD + ±0.1%FS for reliable and repeatable test results.
• Energy Regeneration: Feeds discharge energy back to the grid, reducing power consumption and heat generation.
• Independent Channel Control: Each channel can run its own test program, allowing multiple battery packs to be tested simultaneously.
• Flexible Test Profiles: Supports CC, CV, CCCV, Constant Power, Constant Resistance, Pulse Test, and customized test sequences.
• Comprehensive Protection: Provides over-voltage, over-current, reverse polarity, short-circuit, over-temperature, communication fault, and power failure recovery protection.
• Smart Data Management: Enables real-time monitoring, automatic data storage, Excel export, curve analysis, and MES integration.

FAQ 1: What types of lithium battery packs can be tested with a charge and discharge tester?

ACEY-BA60300-16 Battery Pack Charge Discharge Test Equipment is suitable for lithium battery packs used in electric two-wheelers, drones, and residential energy storage systems. It supports capacity testing, aging tests, cycle life evaluation, and charge-discharge performance verification.

FAQ 2: What voltage and current range is required for high-power battery pack testing?

ACEY-BA60300-16 Battery Pack Charge Discharge Test Equipment supports a voltage range of 10V to 60V and charging and discharging currents of 100mA to 300A. Its six independent test channels allow multiple battery packs to be tested simultaneously with independently configured test programs.

FAQ 3: How can energy consumption be reduced during battery charge and discharge testing?

ACEY-BA60300-16 Battery Pack Charge Discharge Test Equipment features an energy regeneration design that feeds discharge energy back into the power grid. This helps reduce energy consumption and heat generation during extended battery aging, cycle life, and performance tests.
