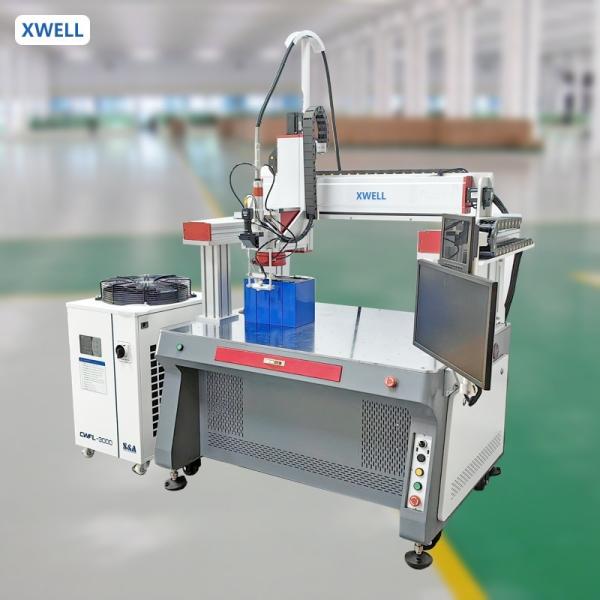

3000W Laser Welding Machine For Battery Pack Welding
3000W Laser Welding Machine For Battery Pack Welding
Specifications
Brand Name :
XWELL
Model Number :
XW-3000W
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
USD 10000 - 22000 / pcs
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 pcs per month
Delivery Time :
15-20 days
Packaging Details :
Wooden box
Compliance :
CE Certified
Product Origin :
China
cooling method :
water cooling
Model :
XW-3000W
Advantage :
Welding Precision
Axis number :
4 axis
Laser power :
1000W 1500W 2000W 3000W
Maximum depth of weld :
2 - 3 mm
Electricity demand :
220V/380V±5V50Hz/40A
Description

3000W Laser Welding Machine For Battery Pack Welding

Guangdong Xwell Technology Co., Ltd.
Guangdong Xwell Technology Co., Ltd. is a comprehensive company, have 21 years experience in new energy battery industry. inorder to create more economic and offer theone-step service, we collect all the know ledgeand resource to service our customers with complete solution in battery industry in our field including the battery laboratory equipment,battery production equipment, battery pack equipment, laser welding machine, plastic ultrasonic welding machine, metal ultrasonic spot welding machine, wire ultrasonic welding machine, and most of the accessories, and we hadexported them to more than 60 countries all over theworld in the past 10 years. We have passed CE safety certificated system. With rich technology and capital resource, we pay high attention to the new productin novation. Every year we have at least one new designmachine. Creating value for customers first is the only way to achieve self-worth. We look forward to cooperating with you!

3000W Laser Welding Machine For Battery Pack Welding

Main feature:

1. The photoelectric conversion efficiency can reach 40%, and the power consumption is low;

2. Continuous 3000W pure fiber laser, which can penetrate 3mm materials for direct welding;

3. Precise servo system control to ensure welding accuracy.

Product functional characteristics:

1. Independent research and development design, high precision of machine tool. Having long service life with stability and reliability;

2. Equipped with high-response and high-precision servo motor;

3. International first-class quality fiber laser, many years of industrial application, long service life and maintenance free;

4. High-precision laser welding head, imported optical lens, fine focus, convenient adjustment, perfect welding;

5. The operation of the numerical control system is simple and easy to learn, and the requirements for the operator are low;

3000W Laser Welding Machine For Battery Pack Welding

CCD Camera Display


Display on a video display by connecting the device. Claer welding point.

3000W Laser Welding Machine For Battery Pack Welding

X.Y.Z Axis guide rail


With the function of moving up and down, it can weld irregular products. The Z axis has brake function.
Large-stroke gantry has a larger welding range.
Argon gas blown out of the air pipe doesn't damage to material surface

3000W Laser Welding Machine For Battery Pack Welding


Water Cooling Machine


Equipped with with 1.5P chiller. it can meet the requirements for a long time. High power welding is more stable.

3000W Laser Welding Machine For Battery Pack Welding

3000W Laser Welding Machine For Battery Pack Welding

Standard cabinet, four-axis travel.

3000W Laser Welding Machine For Battery Pack Welding

With different water machines and different welding heads, the stroke and welding effect will be different.

3000W Laser Welding Machine For Battery Pack Welding

Desktop welding and handheld welding, multifunctional machine. One machine with multiple functions, customized fixtures, and multiple customized welding stations, work faster and more accurately.

3000W Laser Welding Machine For Battery Pack Welding

Raycus Laser source
1000W—220V
1500W—380V
2000W—380V

3000W Laser Welding Machine For Battery Pack Welding

MAX Laser source
1000W—220V
1500W—380V
2000W—380V

3000W Laser Welding Machine For Battery Pack Welding

JPT Laser source
1000W—220V
1500W—380V
2000W—380V

Laser machine parameters

Device name / model
XW-1000W
XW-1500W
XW-2000W
Maximum laser power
1000W
1500W
2000W
Laser type
fiber-optic laser
Laser wavelength
1080±5
Sport mode
continuous
Adjust frequency
1000HZ
Thickness of welding material(dependingonthematerial)
≤4.0 mm
≤6.0mm
≤8.0mm
Fiber core diameter
5-7(50μm)
Fiber length
10m-20m
Spectroscopy
Precision energy splitting or high-speed time splitting
Light mode
Red light
Welding gun head
Youmir/WSX
Total power
8KW
6KW
12KW
Chiller cooling power
1.5P
Cooling method Water-cooled ambient temperature
20℃-40℃
electricity demand
220V/380V±5V50Hz/40A
Dimensions / net weight
Host computer:
139*139*186CM
407kg
cooling-water machine:
79*56*108CM
93.5kg

Comparison project
Argon arc welding
YAG laser welding
Continuous laser welding
Heat input
Very high
Low
General
Deformation, undercut
Big
Small
Small
firmness
It is good
General
It is good
Follow-up
Polishing
Slightly polished or not polished
Slightly polished or not polished
Welding speed
General
More than 2 times argon arc welding
More than 2 times argon arc welding
Applicable material
Stainless steel, carbon steel, galvanized sheet, aluminum, copper
Stainless steel, carbon steel, galvanized sheet, aluminum, copper, nie, gold, silver
Stainless steel, carbon steel, galvanized sheet, aluminum, copper, Nie
Consumables
More consumables
General supplies
Less consumables
operating
Complex
General
Simple
safety
Unsafe
Safety
Safety
surroundings
Not environmentally friendly
Environmental protection
Environmental protection
Fault tolerance
It is good
It is good
It is good
Swing welding
No
No
Have
Spot width
No
0.1-3MM
0.1-5MM
Welding quality
Difference
General
Well
Argon consumption
15PSI
30PSI
40PSI
Melting depth
High
low
High
Applicable thickness
2-10MM
0.2-3MM
0.2-5MM
Radiation
High
No
No
