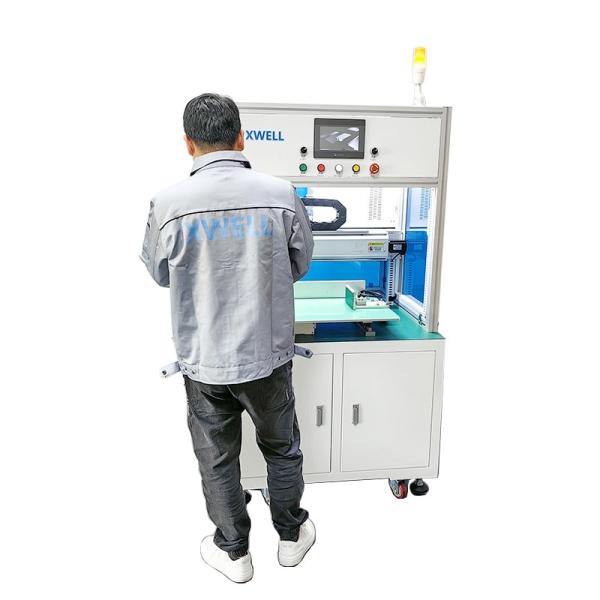

Battery Pack Spot Welder Automatic Li Ion Battery Spot Welding
Battery Pack Spot Welder Automatic Li Ion Battery Spot Welding
Specifications
Brand Name :
XWELL
Model Number :
MD-ASW
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
USD 6000 - 9000 / pcs
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100pcs per month
Delivery Time :
10-15 days
Packaging Details :
Wooden box
Video outgoing-inspection :
Provided
Core Components :
Pressure vessel, Gear
Rated Capacity :
Customizable
Weight support :
0-35KG
Pack size :
X direction: 26; Y direction: 26
Welding current :
5000A 8000A
Voltage :
220V and 380V
Description

Battery Pack Spot Welder Automatic Li Ion Battery Spot Welding


Battery Spot Welding Machine Description

single Side Automatic Battery Pack Spot Welding Machine is a general platform of automatic processing technology based on microcomputer, suitable battery pack spot welding and assembly in the factory.


Battery Spot Welding Machine Features

The electrical control part of the spot welding machine adopts modular design, with high integration, good versatility and easy maintenance; it mainly performs the traveling mechanism is controlled by servo motor, which has high precision and good reliability; the electrical circuit of the equipment adopts domestic and foreign standards.Control components and devices are easy to maintain and replace. Supports Autocad data import, array and manual methods, which significantly improves spot welding efficiency and ensures the standardization and reliability of spot welding station production in the Pack assembly line.



Battery Spot Welding Machine Specification

Model No. MD-ASW
Y-axis travel 500mm (customizable)
X-axis travel 350mm (customizable)
Max spot welding speed 0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed 1000mm/S
Max load electric cores X direction: 26; Y direction: 26
Capable file group storage 99 groups
Operating system embedded system human-machine interface
Transmission mode Taiwan precision screw with guide rail
Driving mode stepper servo motor
Repeat positioning accuracy ±0.02mm
Dimensions L: 900mm, W: 900mm, H: 1750mm
Power 4000W
Machine weight 200KG
Max bearing weight of Y-axis 35KG
Input power supply single-phase AC 220V/50Hz AC380V 3 phase
Air Source 0.4-0.6 Mpa

Single Side Spot Welding Machine Details

Battery Pack Spot Welder Automatic Li Ion Battery Spot Welding

Battery Pack Spot Welder Automatic Li Ion Battery Spot WeldingBattery Pack Spot Welder Automatic Li Ion Battery Spot Welding
